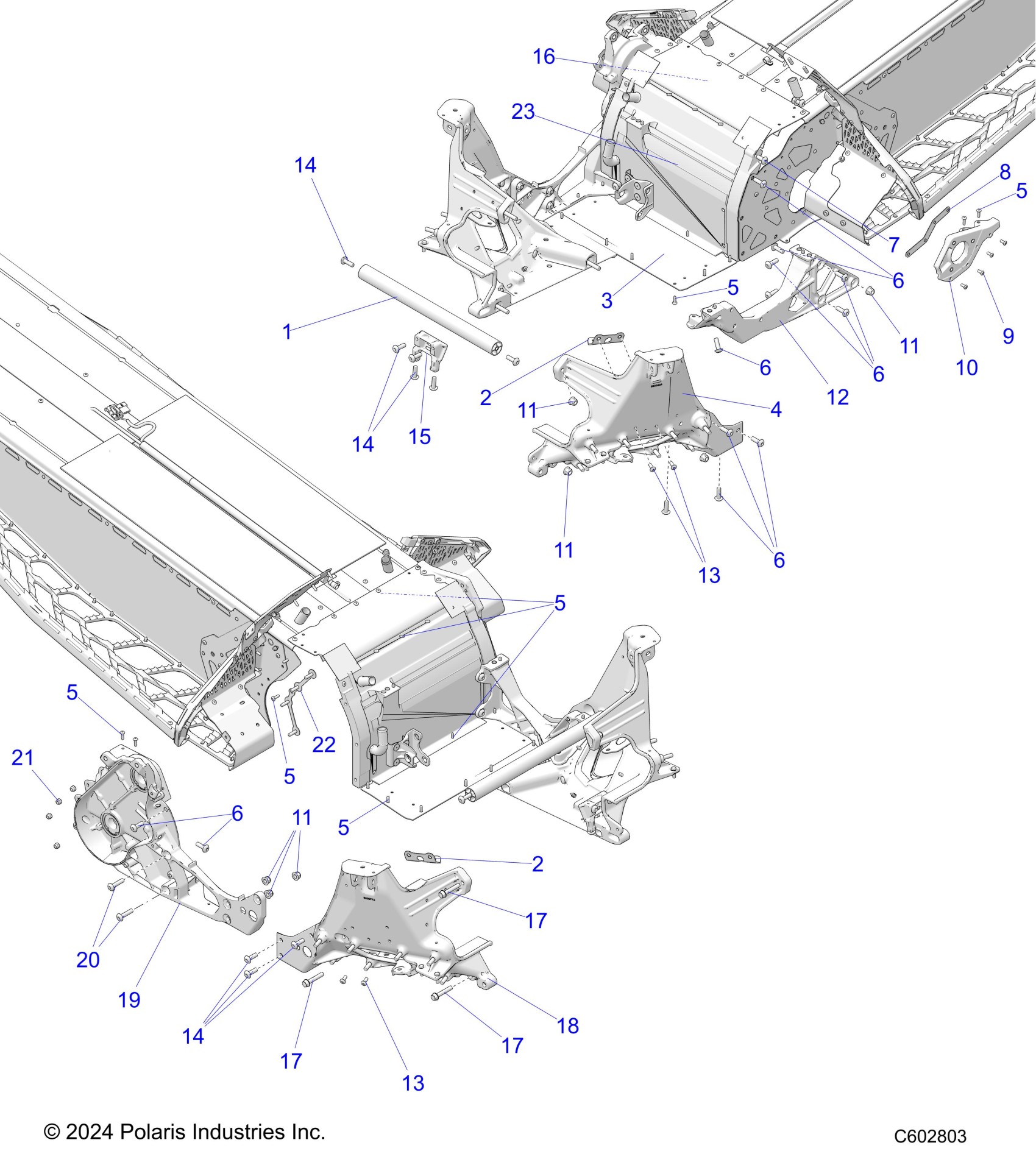

Polaris PATRIOT BOOST INDY VR1 DYNAMIX 137 ALL OPTIONS (R01) - S26TDZ8MS CHASSIS, BULKHEAD ASM. - S26TDZ8MS (C602803) Diagram

#

Description
Price

-

KIT, LORD, 406, 50 ML CARTRIDGE [ADHESIVE]

2204400

$74.99

-

KIT, LORD, 406 REPAIR KIT, 50 ML [ADHESIVE AND APPLICATOR]

2204171

$294.99

-

KIT, LORD, MIX NOZZLES, 12 PIECE

2204172

$4.99

1

TUBE-CROSSOVER, EXTRUDED

5140781

$106.49

2

ASM-BRKT IDLER TOP

1026546

$24.27

2

ASM-BRKT IDLER TOP

1026546

$24.27

3

FLOOR, BULKHEAD

5256849

$29.03

4

ASM-CLIP LH [INCL. STUDS][REQUIRES ADHESIVE]

1028706

$319.99

4

STUD M8

7519204

$19.99

5

RIVET-3/16-.090-.290

7661637

Unavailable

5

RIVET-3/16-.090-.290

7661637

Unavailable

5

RIVET-3/16-.090-.290

7661637

Unavailable

5

RIVET-3/16-.090-.290

7661637

Unavailable

5

RIVET-3/16-.090-.290

7661637

Unavailable

5

RIVET-3/16-.090-.290

7661637

Unavailable

6

SCR-M8X1.25X25 8.8TXTR ZOD P80

7518906

$3.19

6

SCR-M8X1.25X25 8.8TXTR ZOD P80

7518906

$3.19

6

SCR-M8X1.25X25 8.8TXTR ZOD P80

7518906

$3.19

6

SCR-M8X1.25X25 8.8TXTR ZOD P80

7518906

$3.19

6

SCR-M8X1.25X25 8.8TXTR ZOD P80

7518906

$3.19

7

SCR-TXTH-M8X1.25X20 8.8 ZODP30

7519260

$6.39

8

ASM-NUT PLATE, JACKSHAFT

1024312

$19.99

9

SCR-M5X0.8X12 10.9 TX/BH ZPC

7520967

$3.99

10

MOUNT-JACKSHAFT BEARING MACH

5144103

$24.27

11

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

11

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

11

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

11

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

12

ASM-BRACE LOWER LH 3M10 [REQUIRES ADHESIVE][INCL. DOWEL PINS]

1028465

$139.99

12

PIN-DOWEL,M6X10

5136879

Unavailable

13

SCR-TXPH-M6X1.0X15 GR5 ZOD NYL

7518656

$3.99

13

SCR-TXPH-M6X1.0X15 GR5 ZOD NYL

7518656

$3.99

14

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

14

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

14

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

15

MOUNT, STEERING, LOWER

5138449

$16.99

16

CLOSEOFF-TUNNEL FRONT MACH

5139282

$154.99

17

SCR-M8X1.25X45-HX/FL-Y

7516732

$1.59

17

SCR-M8X1.25X45-HX/FL-Y

7516732

$1.59

17

SCR-M8X1.25X45-HX/FL-Y

7516732

$1.59

18

ASM-CLIP W/STUD RH [INCL. STUDS][REQUIRES ADHESIVE]

1023783

$319.99

18

STUD M8

7519204

$19.99

19

ASM-CHAINCASE INTERMD [REQUIRES ADHESIVE][INCL. BRNGS., SEALS]

1333119

$289.99

20

SCR-TXTH M8X1.25X35 8.8ZOD P80

7519049

$7.19

21

NUT-HXFL-M6X1.0 8 ZTB NYL

7548027

$1.59

22

ASM-STUD PLATE M6X4

1020927

$34.99

23

ASM-COOLER BULKHEAD [SEE ENGINE, COOLING SYSTEM]

1244691

$549.99
