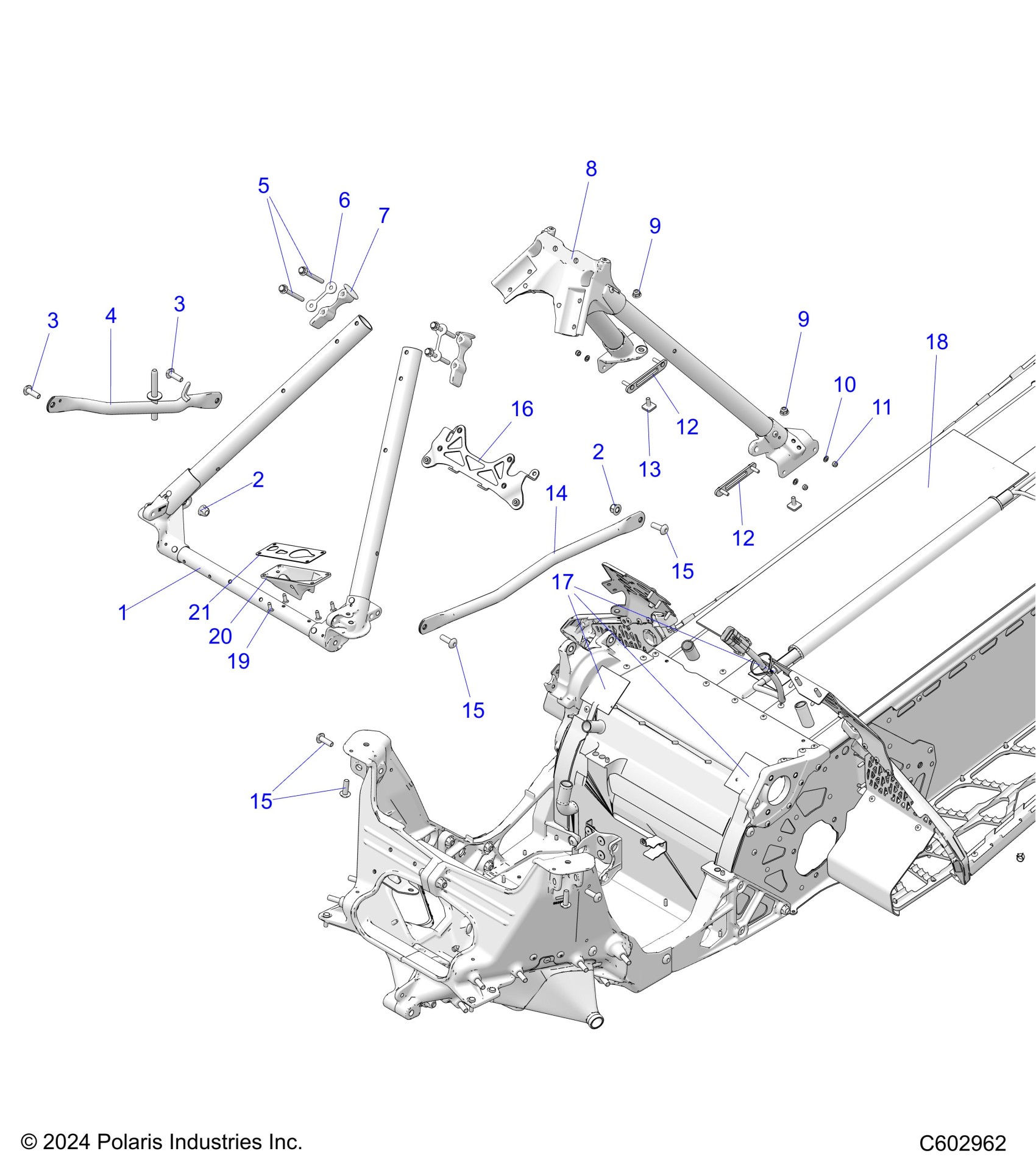

Polaris PATRIOT BOOST INDY VR1 137 ALL OPTIONS (R03) - S25TDV8MS CHASSIS, CHASSIS ASM. and OVER STRUCTURE - S25TDV8MS (C602962) Diagram

#

Description
Price

1

ASM-FRAME TUBULAR FRONT ALUM

1027297

$389.99

2

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

2

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

3

SCR-M8X1.25X25 8.8TXTR ZOD P80

7518906

$3.19

3

SCR-M8X1.25X25 8.8TXTR ZOD P80

7518906

$3.19

4

WELD-CROSS BRACE BLK

1025902-067

$64.99

5

SCR-HXFL-M6X1X60 10.9 ZOD P30

7520723

$4.99

6

SHIM-TUBE CAST 31.76 DIA

5633083

$6.99

7

SPACER-TUBE CAST 27.00 DIA

5633122

$9.59

8

ASM-TUBE FRAME REAR

1025156

$784.99

9

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.99

9

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.99

10

WSHR-FL,5.5X1.0,(10)

7556071

$4.79

11

NUT-M5X.8,HX NYL-Y

7546601

$1.49

12

ASM-STUD PLATE 5MM

1023672

$12.79

12

ASM-STUD PLATE 5MM

1023672

$12.79

13

SCR-SPCL M6X1.0X16 8.8 ZC

7520514

$3.99

14

TUBE-BRACE LH BLK

5337391-329

$34.99

15

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

15

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

15

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

16

ASM-REGULATOR MOUNT

1024479

$36.41

17

PAD, 2.5"X2.5"

5814187

$4.03

18

ASM-CHASSIS 850T 137 BLK [INCL. BULKHEAD]

1028944-067

$2,059.99

18

ASM-TUNNEL 650/850 137 BLK [INCL. TUNNEL COOLER]

1028938-067

$1,609.99

18

ASM-CHASSIS 850T 137 RED [INCL. BULKHEAD]

1028944-293

$1,759.99

18

ASM-TUNNEL 650/850 137 INDYRED [INCL. TUNNEL COOLER]

1028938-293

Unavailable

18

ASM-CHASSIS 850T 137 LFTDLIME [INCL. BULKHEAD]

1028944-801

$1,759.99

18

ASM-TUNNEL 650/850 137 LFTDLM [INCL. TUNNEL COOLER]

1028938-801

Unavailable

18

ASM-CHASSIS 850T 137 ISKYBLUE [INCL. BULKHEAD]

1028944-737

$1,759.99

18

ASM-TUNNEL 650/850 137 ISKYBLU [INCL. TUNNEL COOLER]

1028938-737

Unavailable

19

RIVET-POP 3/16(.126-.250)-ST-B

7661973

$1.49

20

MOUNT-LOAD CENTER

5454789

$9.70

21

BRKT-LOAD CENTER

5265340

$4.84
