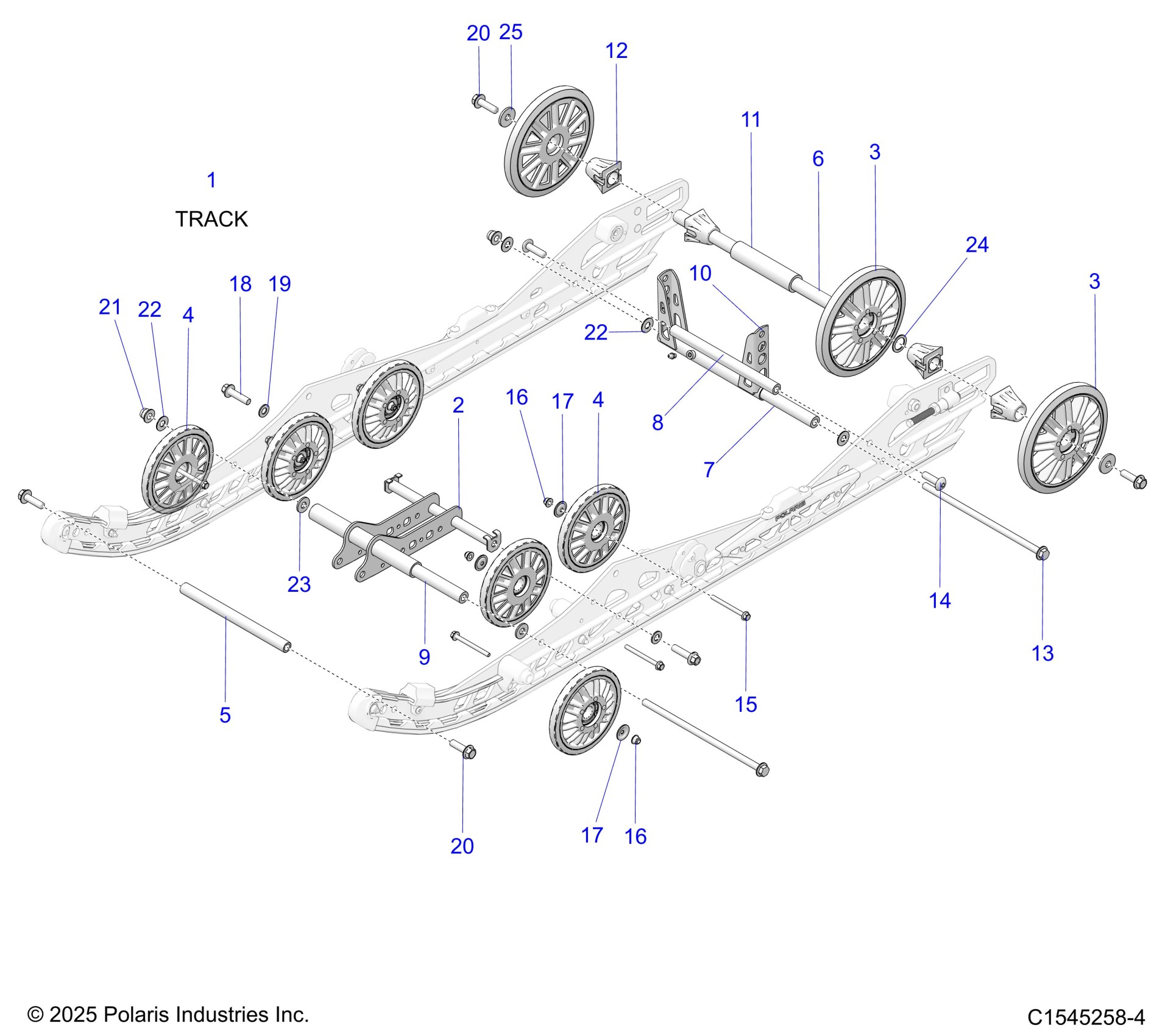

Polaris PATRIOT BOOST INDY VR1 137 ALL OPTIONS (R01) - S26TDV8MS SUSPENSION, REAR - S26TDV8MS (C1545258-4) Diagram

#

Description
Price

1

TRACK-15X137" 1" RIPSAW II "R"

5418186

$819.99

1

TRACK-15X137" 1.352" COBRA "R"

5418187

$819.99

2

WELD-H-BRACKET ECOAT

1545088-329

$83.99

3

ASM-WHEEL,SPOKE,7.25,6004

1590459

$47.99

3

BEARING-.7874X1.6535X.4724,NTN

3514384

$19.84

3

RING-RETAINING

7710444

$8.79

3

ASM-WHEEL,SPOKE,7.25,6004

1590459

$47.99

3

BEARING-.7874X1.6535X.4724,NTN

3514384

$19.84

3

RING-RETAINING

7710444

$8.79

4

ASM-WHEEL SPOKED 5.62

1590632

$38.39

4

BEARING-.7874X1.6535X.4724 NSK

3515142

$19.99

4

RING-RETAINING

7710444

$8.79

4

ASM-WHEEL SPOKED 5.62

1590632

$38.39

4

BEARING-.7874X1.6535X.4724 NSK

3515142

$19.99

4

RING-RETAINING

7710444

$8.79

5

SFT-M10X1.5IDX17.47ODX220.1 LG

5136572

$33.87

6

SHAFT-IDLER M10X1.5THDX336 LG

5136745

$38.71

7

SHAFT-CROSS, RMK

5137418

$32.37

8

SHAFT-CROSS MACH

5139172

$29.03

9

SHAFT-H BRKT, CC AL

5140492

$43.56

10

WELD-REAR PIVOT ARM ECOAT

1543905-329

$121.02

11

SPACER-IDLER, LONG

5333285

$11.99

12

SPACER-IDLER

5432535

$11.99

13

SCR-HXFL-M10X1.25X250 10.9 ZOD

7519327

$19.99

14

SCR-M10X1.5X35 TX/TRUSS ZODP30

7520369

$6.39

15

SCR-HXFL-M6X1.0X70 10.9 ZFB

7521331-70

$1.49

16

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

16

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

17

WSHR-M6 OFFSET 2.01 ZOD

7556799

$3.19

17

WSHR-M6 OFFSET 2.01 ZOD

7556799

$3.19

18

SCR-HXFL-M10X1.5X40 10.9ZODP80

7519216

$4.79

19

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

20

SCR-M10X1.5X35 HXFL ZOD P30

7518957

$3.19

20

SCR-M10X1.5X35 HXFL ZOD P30

7518957

$3.19

21

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

22

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

22

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

23

WSHR-M10.5X25X2.4 ZPC

7556559

$3.19

24

BUSHING-MACH,.800X1.125X.06-Y

7555918

$1.59

25

WASHER-SPRING.406X1.25X.125ZOD

7556490

$4.79
