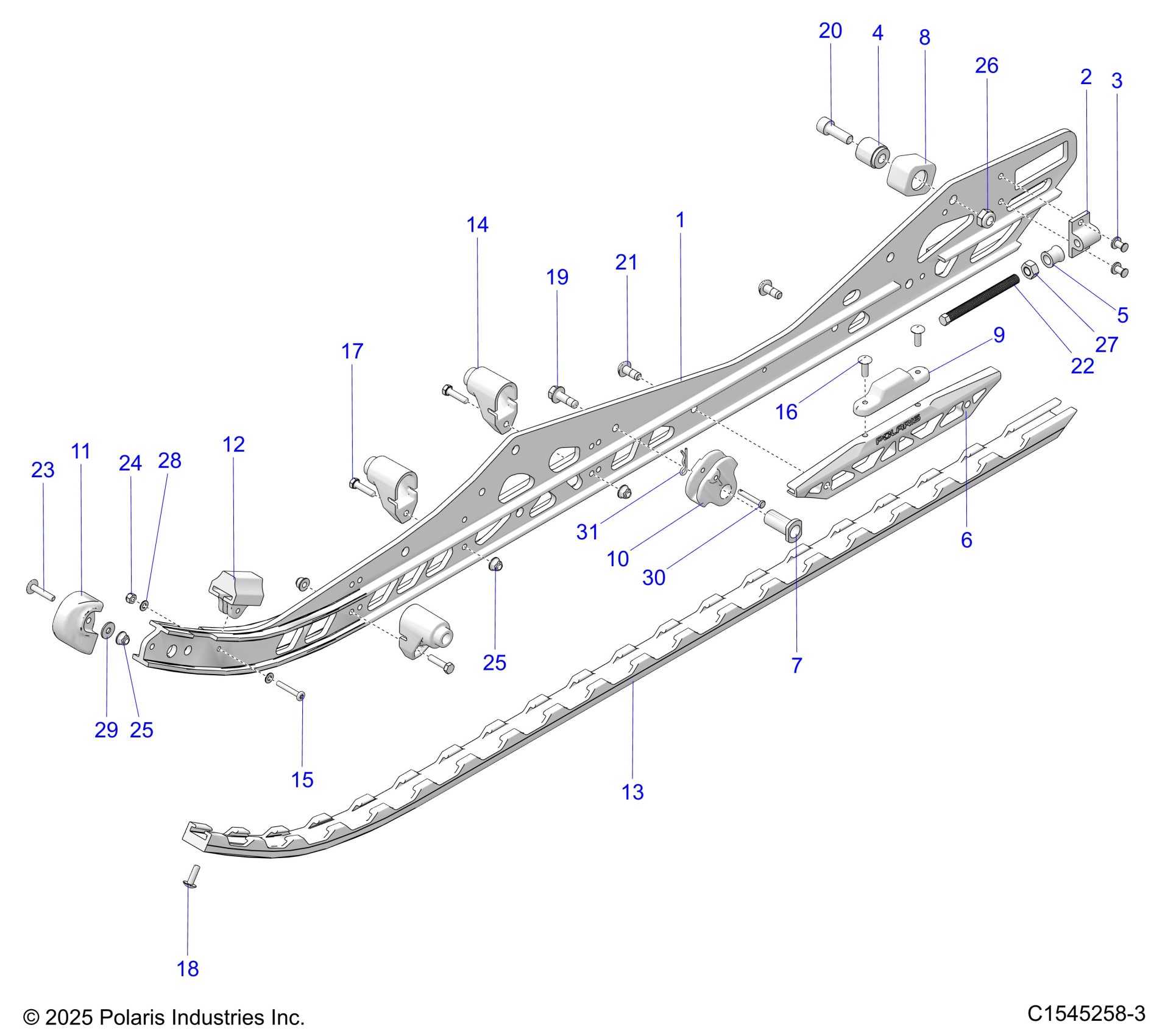

Polaris PATRIOT BOOST INDY VR1 137 ALL OPTIONS (R01) - S26TDV8MS SUSPENSION, RAIL BEAM LH/RH - S26TDV8MS (C1545258-3) Diagram

#

Description
Price

1

ASM-RAIL 137 SVC LH BLK [INCLUDES 2 & 3] [BLACK]

1545251-067

$471.89

1

ASM-RAIL 137 SVC RH BLK [INCLUDES 2 & 3] [BLACK]

1545252-067

$471.89

1

ASM-RAIL 137 SVC LH VELCTY BLU [INCLUDES 2 & 3] [VELOCITY BLUE]

1545251-689

$471.89

1

ASM-RAIL 137 SVC RH VELCTY BLU [INCLUDES 2 & 3] [VELOCITY BLUE]

1545252-689

$471.89

1

ASM-RAIL 137 SVC LH INDY RED [INCLUDES 2 & 3] [INDY RED]

1545251-293

$471.89

1

ASM-RAIL 137 SVC RH INDY RED [INCLUDES 2 & 3] [INDY RED]

1545252-293

$471.89

1

ASM-RAIL 137 SVC LH LFTD LIME [INCLUDES 2 & 3] [LIFTED LIME]

1545251-801

$471.89

1

ASM-RAIL 137 SVC RH LFTD LIME [INCLUDES 2 & 3] [LIFTED LIME]

1545252-801

$471.89

2

BLOCK-IDLER BOLT ADJ METRIC

5136570

$34.99

3

RIVET-FLAT HD-1/4 X .575

7621501

$2.39

4

MOUNT-BUMPER METRIC

5136571

$9.70

5

SPACER-IDLER ADJ ALUM

5141837

$8.99

6

PLATE-RAIL REINF BLK ANODIZED

5143395

$194.99

7

SHAFT-SPRING ROLLER

5144612

$10.51

8

BUMPER,F.PIVOT ARM

5410925

$12.94

9

BUMPER-FRT TORQ ARM, XTRA 12

5432166

$5.59

10

GUIDE, SPRING, SQUARE

5434334

$28.32

11

CAP, RAIL TIP

5452441

$16.99

12

BUMPER, JOUNCE, FRONT

5522253

$8.89

13

HI-FAX-136 CC BLK

5526382-070

$64.75

14

BLOCK-WHEEL MOUNT

5633278

$29.99

15

SCR-10-24X1.25TFM PN TRX TRI-Y

7512025

$4.79

16

SCR-1/4-20X3/4,TR/TX/TAP-Y

7515199

$1.49

17

SCREW-HH-M6X1.0X25 8.8 ZPB

7517510

$4.79

18

SCR-M6X1.0X20 TR/TX/TAP ZOD

7518976

$3.19

19

SCR-HXFL-M8X1.25X25 10.9 ZOD P

7519739

$3.03

20

SCREW-SH-M10X1.5X30 8.8 ZPB

7519844

$4.79

21

SCR-TXTH-M8X1.25X20 8.8 ZB3 P3

7519997

$3.99

22

SCR-HX-M10X1.5X100,8.8,ZOD

7520083

$12.79

23

SCR-TXTH-M6X1.0X30,8.8,ZPB

7520133

$3.19

24

NUT-NYLOC 10-24 Y

7541925

$1.49

25

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

25

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

26

NUT-HEX M10X1.5 8 ZOD NYL

7547442

$3.99

27

NUT-HEX-M10X1.5 8 ZOD

7547707

$4.99

28

WSHR-FL #10 .203X.438X.032-Y

7555783

$3.99

29

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

30

PIN-CLEVIS 3/16X1 1/4

7661123

$3.99

31

PIN-HITCH, 3/32-Y

7661644

$2.39
