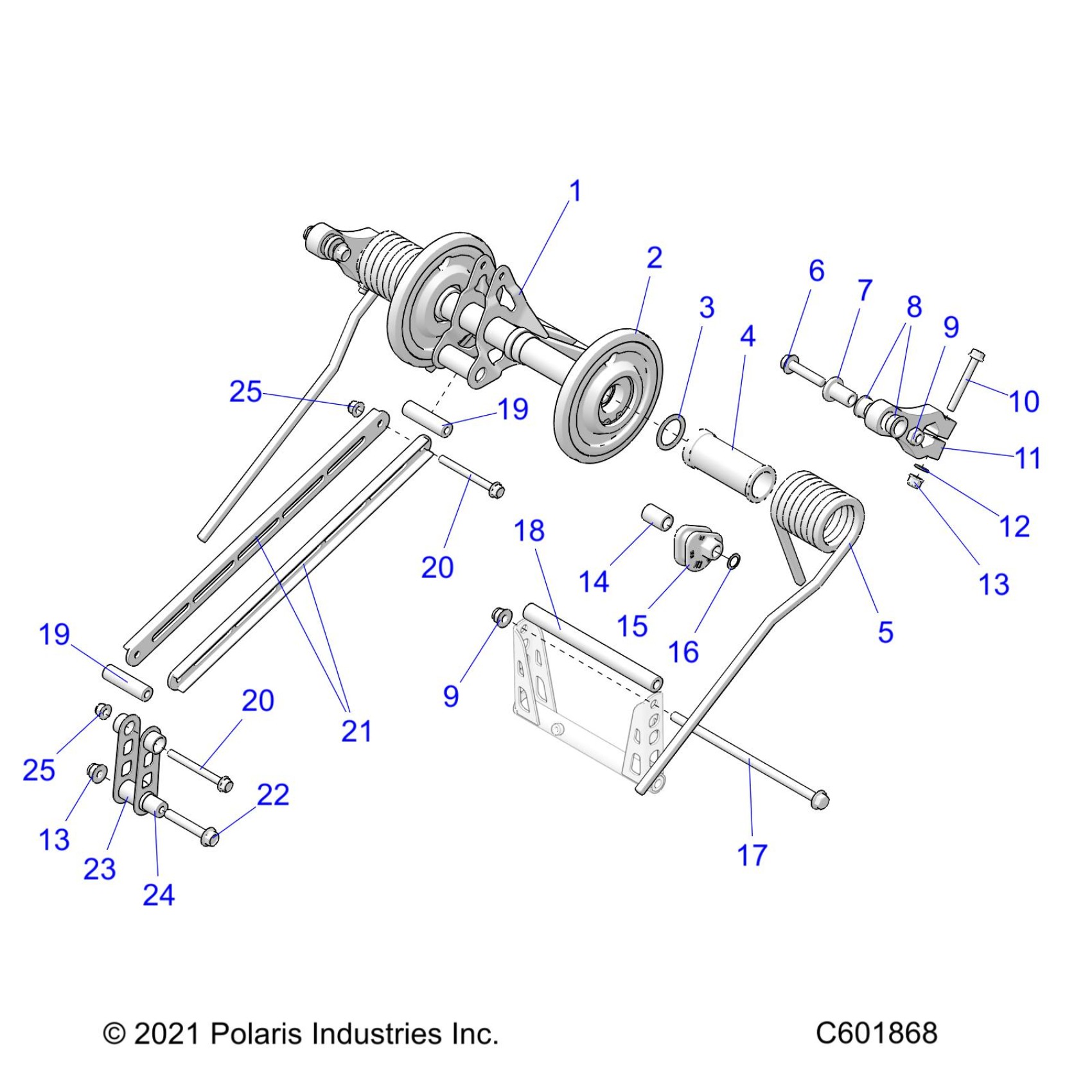

Polaris PATRIOT BOOST INDY VR1 129 ALL OPTIONS (R03) - S23TKV8MS SUSPENSION, TORQUE ARM, REAR - S23TKV8MS (C601868) Diagram

WELD-RTA ECOAT

1543906-329

$249.99

RING-RETAINING

7710486

Unavailable

BEARING-6007

3514445

Unavailable

ASM-WHEEL,PLAIN,6.38,6007

1590001

$72.84

WSHR-1.28X1.69X.075-Y

7555939

Unavailable

SLEEVE-TORSION SPRING

5434989

$3.99

SPRING, TOR,.375S,80,13#,RH,HD, BLK [OPT]

7045208-329

$117.37

SPRING, TOR,.375S,80,13#,LH,HD, BLK [OPT]

7045207-329

$117.37

SPRING-TOR,.359S,80,11#,LH BLK [STD]

7045190-329

$113.32

SPRING, TOR,.375S,70,13#,RH, EXTRA HD, BLK [OPT]

7045210-329

$117.37

SPRING-TOR,.359S,80,11#,RH BLK [STD]

7045191-329

$113.32

SPRING, TOR,.375S,70,13#,LH, EXTRA HD, BLK [OPT]

7045209-329

$117.37

SCREW, HXFLG

7518971

$6.39

SHAFT-RTA MOUNT

5141400

$13.75

BUSHING-CRANK

5438876

$7.99

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$3.99

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$3.99

SCR-M8X1.25X65-HX/FL-Y,CL 10.9

7519212

$4.79

ASM-ARM 83.2 NARROW [INCL 11]

1544129

$40.46

WASHER-.344X.688X.063 FL-ZOD

7556524

$1.49

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

SPACER-.520X.770X1.185,HDPE

5334285

$2.39

ROLLER-SPRING,TRI-ADJ,RH

5434590

$28.32

ROLLER-SPRING,TRI-ADJ,LH

5434589

$32.37

CLIP-PUSH ON

7080394

$2.39

SCR-HXFL-M10X1.5X230 8.8 ZY3

7518472

$6.39

SHAFT-RTA LOWER

5142129

$24.27

BUSHING-PULL ROD

5142128

$8.79

BUSHING-PULL ROD

5142128

$8.79

SCR-HXFL M8X1.25X80 8.8 ZOD

7519217

$1.59

SCR-HXFL M8X1.25X80 8.8 ZOD

7519217

$1.59

ROD-SHOCK LWT MACH

5141836

$44.43

SCR-HXFL-M8X1.25X65 8.8 ZOD

7519971

$5.59

FITTING-LUBRICATION 1/4-28

7080424

$4.79

WELD-SHOCK PIVOT ARM ECOAT

1544017-329

$36.41

BUSHING-SHOCK PIVOT ARM

5142127

$11.99

NUT-HEX-M8X1.25 8 ZOD NYL

7547480

$2.39

NUT-HEX-M8X1.25 8 ZOD NYL

7547480

$2.39
