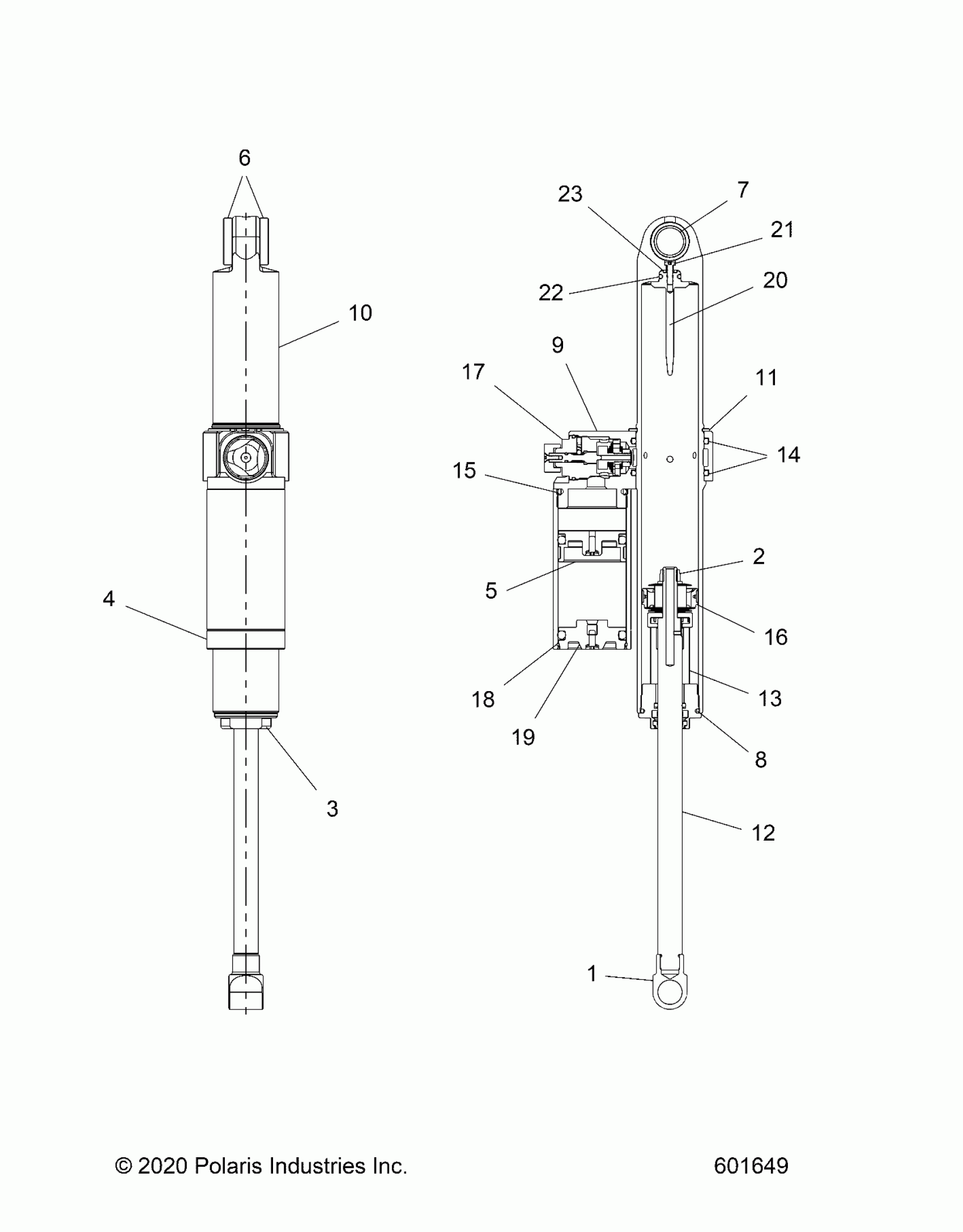

Polaris PATRIOT BOOST INDY VR1 129 ALL OPTIONS (R03) - S23TKV8MS SUSPENSION, SHOCK, REAR TRACK - S23TKV8MS (601649) Diagram

#

Description
Price

-

SHOCK-RTS W/E VELOCITY PIGGYBK [INCL. 1-23]

7045431

$576.39

1

Eyelet, Shaft

1800096

$101.17

2

NUT, CRIMP, 3/8 INCH

1800031

$3.99

3

ASM-SEAL HEAD, BLUE

1801154

$141.65

4

BODY, RES., 4.125L, ANO HARD CLEAR

1801011

$119.99

5

IFP PISTON ASM 1.750, W- BLEED

1800739

$44.99

6

BUSHING

1800406

$5.65

7

SLEEVE- 1.150L

1800405

$28.32

8

O-Ring, External

1800027

$2.02

9

BRIDGE, 1.75", BLUE [NOT AVAILABLE]

-------

Unavailable

10

BODY-MIDMNT MONO, BLK

1801023

$184.99

11

RING-RET., EXT.

1801024

$8.89

12

SHAFT-5/8X9.15L CHR

1801025

$144.99

13

SPACER-1.450L

1801155

$60.70

14

O-RING-BUNA 2-224

1801028

$4.84

15

O-RING -110

1801030

$10.51

16

ASM-PISTON 7045431

1801156

$208.16

17

ASM., ADJUSTER, HS-LS

1801021

$104.99

17

KNOB

1801053

$49.99

17

SCREW, 4-40X.375SS

1800738

$1.49

17

BODY, MONOTUBE CO, 2.0 x 14.285L Hard CLEAR

1800860

$289.99

18

RETAINING RING WIRE 0.0625 X 1.750ID

1800795

$7.27

19

END CAP, RESERVOIR, 2"

1801006

$114.99

20

NEEDLE-PRESS IN

1801027

$49.99

21

#8-32 X .500 LOW HEAD SCREW

1800843

$4.79

22

0-RING 5MM ID X 2MM 1600073

1801031

$1.59

23

O-RING BODY LOOP

1800030

$2.02
