- PATRIOT BOOST INDY VR1 129 ALL OPTIONS (R03) - S23TKV8MS
SUSPENSION, SHOCK, FRONT TRACK - S23TKV8MS (601648)

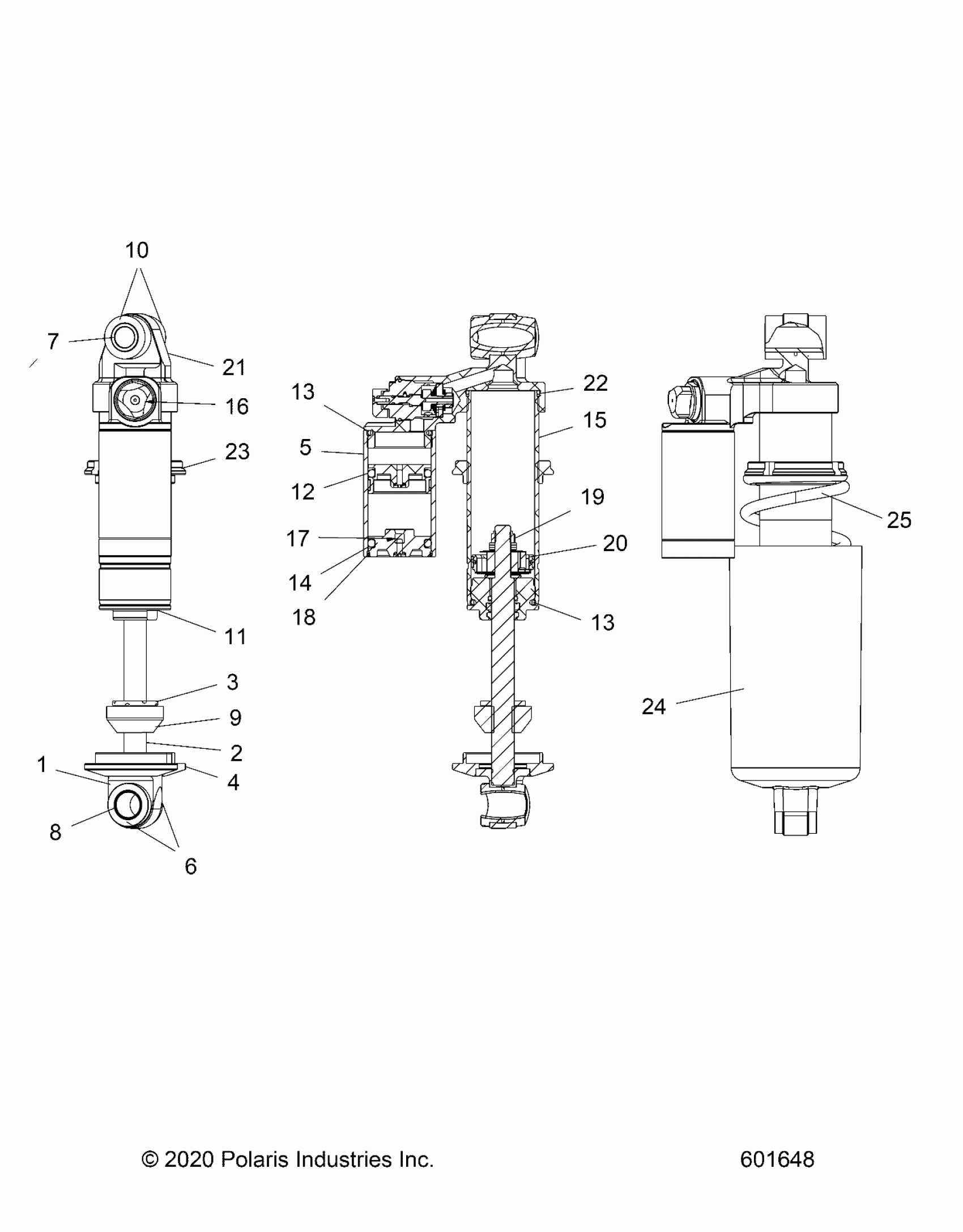

Polaris PATRIOT BOOST INDY VR1 129 ALL OPTIONS (R03) - S23TKV8MS SUSPENSION, SHOCK, FRONT TRACK - S23TKV8MS (601648) Diagram
#
Description
Price
-
SHOCK-F/T W/E PIGGYBACK 2" [INCL. 1-23]
7045430
$654.99
1
LOOP-SHAFT, BLU ANO
1801088
$129.51
2
SHAFT, FT, SS
1800774
$150.06
3
SCRAPER, ICE, SHAFT
1800776
$28.32
4
RETAINER-SPRING CLIP, ANO BLUE
1800925
$39.99
5
BODY, RESERVOIR [NOT AVAILABLE]
-------
Unavailable
6
BUSHING
1800406
$5.65
7
SLEEVE, 1.685"L
1800039
$15.99
8
SLEEVE- 1.150L
1800405
$28.32
9
BUMP STOP, 1.58x.73
1800649
$43.56
10
BUSHING, URETHANE
1800033
$19.99
11
ASM-SEAL HEAD 2.0
1801083
$141.65
12
IFP PISTON ASM 1.750, W- BLEED
1800739
$44.99
13
O-RING BODY LOOP
1800030
$2.02
13
O-RING BODY LOOP
1800030
$2.02
14
O-RING 2-324
1800184
$5.65
15
BODY, FT SHOCK, BLK
1800775
$164.99
16
ASM., ADJUSTER, HS-LS
1801021
$104.99
16
KNOB
1801053
$49.99
16
SCREW, 4-40X.375SS
1800738
$1.49
16
O-RING, 2.0X24.5MM
1800680
$4.79
17
END CAP, RESERVOIR, 2"
1801006
$114.99
18
RETAINING RING WIRE 0.0625 X 1.750ID
1800795
$7.27
19
NUT-FLEX-TOP LOCK 7/16
1801000
$7.99
20
ASM-PISTON 7045430
1801152
$217.84
21
BODY LOOP, PB 2.0 [NOT AVAILABLE]
-------
Unavailable
22
O-RING, 2-134
1800502
$1.99
23
SPRING ADJUSTER
1801153
$144.99
24
SHIELD-SHOCK, W/E 2"
5452873
$28.32
25
SPRING-COMP 80/250#X8.0 2"MBLK
7045203-458
$62.92
