- PATRIOT BOOST INDY VR1 129 ALL OPTIONS (R03) - S23TKV8MS
SUSPENSION, REAR - S23TKV8MS (C602226)

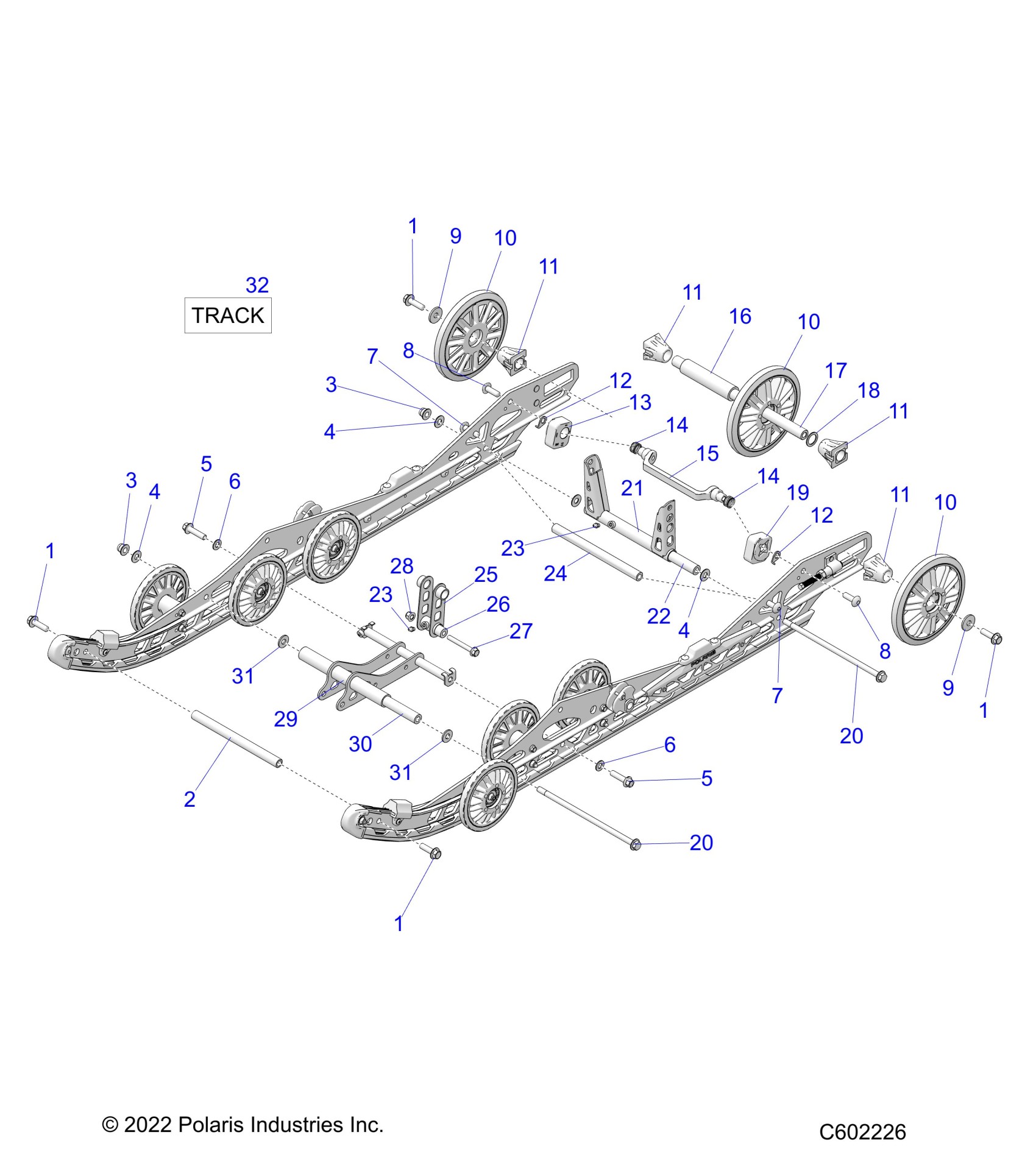

Polaris PATRIOT BOOST INDY VR1 129 ALL OPTIONS (R03) - S23TKV8MS SUSPENSION, REAR - S23TKV8MS (C602226) Diagram
#
1
SCR-M10X1.5X35 HXFL ZOD P30
7518957
$3.19
1
SCR-M10X1.5X35 HXFL ZOD P30
7518957
$3.19
1
SCR-M10X1.5X35 HXFL ZOD P30
7518957
$3.19
1
SCR-M10X1.5X35 HXFL ZOD P30
7518957
$3.19
2
SFT-M10X1.5IDX17.47ODX220.1 LG
5136572
$33.87
3
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
$1.59
3
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
$1.59
4
WSHR-10.5X24X1.2446 ZOD HRD
7556545
$3.19
4
WSHR-10.5X24X1.2446 ZOD HRD
7556545
$3.19
4
WSHR-10.5X24X1.2446 ZOD HRD
7556545
$3.19
5
SCR-HXFL-M10X1.5X40 10.9ZODP80
7519216
$4.79
5
SCR-HXFL-M10X1.5X40 10.9ZODP80
7519216
$4.79
6
WASHER-3/8 FW SAE STL THRU-HRD
7556153
$1.99
6
WASHER-3/8 FW SAE STL THRU-HRD
7556153
$1.99
7
SCR-M10X1.5X35 TX/TRUSS ZODP30
7520369
$6.39
7
SCR-M10X1.5X35 TX/TRUSS ZODP30
7520369
$6.39
8
SCR-3/8-16X.625 TX/TRUSS,GR5-Y
7520487
$3.19
8
SCR-3/8-16X.625 TX/TRUSS,GR5-Y
7520487
$3.19
9
WASHER-SPRING.406X1.25X.125ZOD
7556490
$4.79
9
WASHER-SPRING.406X1.25X.125ZOD
7556490
$4.79
10
ASM-WHEEL,SPOKE,7.25,6004
1590459
$47.99
10
BEARING
3514384
$19.84
10
RING-RETAINING
7710444
$8.79
10
ASM-WHEEL,SPOKE,7.25,6004
1590459
$47.99
10
BEARING
3514384
$19.84
10
RING-RETAINING
7710444
$8.79
10
ASM-WHEEL,SPOKE,7.25,6004
1590459
$47.99
10
BEARING
3514384
$19.84
10
RING-RETAINING
7710444
$8.79
11
SPACER-IDLER
5432535
$11.99
11
SPACER-IDLER
5432535
$11.99
11
SPACER-IDLER
5432535
$11.99
11
SPACER-IDLER
5432535
$11.99
12
BRKT-DETENT COUPLER
5273054
$6.46
12
BRKT-DETENT COUPLER
5273054
$6.46
13
BUMPER-COUPLER ADJ RH
5418268
$84.99
14
SPRING-COMP COUPLER
7046022
$4.84
14
SPRING-COMP COUPLER
7046022
$4.84
15
SHAFT-COUPLER ADJ
5144644
$99.99
16
SPACER-IDLER, LONG
5333285
$11.99
17
SHAFT-IDLER M10X1.5THDX336 LG
5136745
$38.71
18
BUSHING
7555918
$1.59
19
BUMPER-COUPLER ADJ LH
5418267
$84.99
20
SCR-HXFL-M10X1.25X250 10.9 ZOD
7519327
$19.99
20
SCR-HXFL-M10X1.25X250 10.9 ZOD
7519327
$19.99
21
WELD-REAR PIVOT ARM HD ECOAT
1544984-329
$130.70
22
SHAFT, CROSS
5137418
$32.37
23
FITTING-LUBRICATION 1/4-28
7080424
$4.79
23
FITTING-LUBRICATION 1/4-28
7080424
$4.79
24
SHAFT-CROSS MACH
5139172
$29.03
25
WELD-SHOCK PIVOT ARM ECOAT
1544017-329
$36.41
26
BUSHING-SHOCK PIVOT ARM
5142127
$11.99
27
SCR-HXFL-M8X1.25X65 8.8 ZOD
7519971
$5.59
28
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
29
H-BRACKET ECOAT
1544014-329
$106.49
30
SHAFT-H BRKT, CC AL
5140492
$43.56
31
WSHR-M10.5X25X2.4 ZPC
7556559
$3.19
31
WSHR-M10.5X25X2.4 ZPC
7556559
$3.19
32
TRACK-15X129" 1" RIPSAW II "R"
5418184
$729.99
32
TRACK-15X129" 1.352" COBRA "R"
5418185
$749.99
32
CLIP-TRACK,LNG GUIDE
5251274
Unavailable
32
CLIP-TRACK, FLAT
5251273
Unavailable
