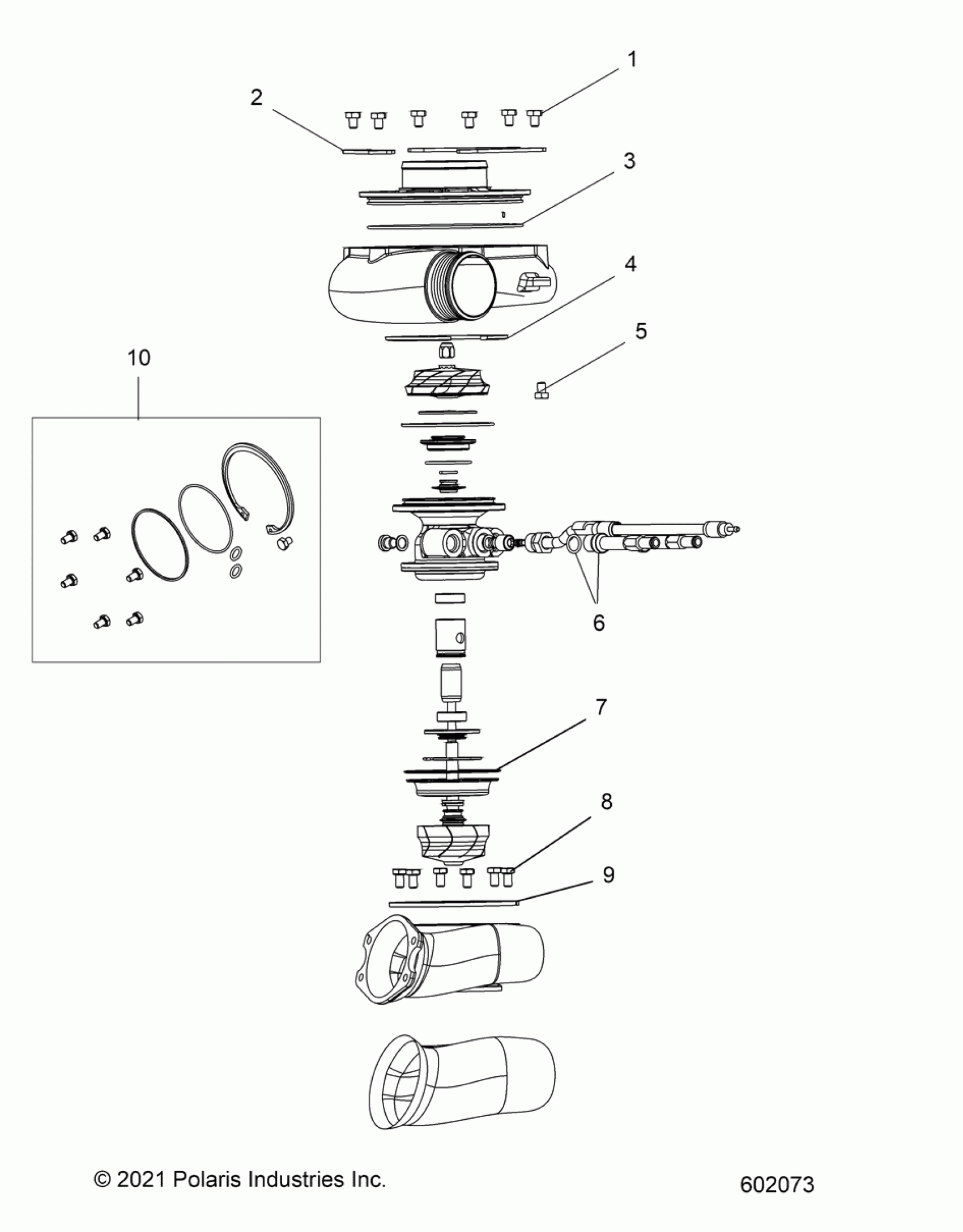

Polaris PATRIOT BOOST INDY VR1 129 ALL OPTIONS (R03) - S23TKV8MS ENGINE, TURBO ASSEMBLY - S23TKV8MS (602073) Diagram

#

Description

Price

-

ASM-TURBO, W/ OIL LINE INCLUDES ALL

1206259

$2,639.99

-

K-TURBO CHRA SVC REBUILD

2209232

$1,994.99

1

K-BOLTS, COMPRESSOR HOUSING INCLUDES 6 BOLTS

2209229

$23.99

2

K-PLATES,COMPRESSOR HOUSING INCLUDES 4 PLATES

2209231

$28.32

3

O-RING,COMPRESSOR HOUSING

5417969

$23.99

4

RING-SNAP,COMPRESSOR HOUSING

7718428

$27.99

5

SCREW-OIL LINE MOUNT

3024034

$3.99

6

K-FITTING, COOLANT, W/ O-RING

2209228

$114.99

7

RING-CRUSH, TURBINE HOUSING

5511088

$49.99

8

K-BOLTS,TURBINE HOUSING INCLUDES 6 BOLTS

2209254

$27.99

9

K-PLATES,TURBINE HOUSING

2209230

$94.99

10

K-SEAL, TURBO, SNOW SVC REBUILD

2212114

$49.99
