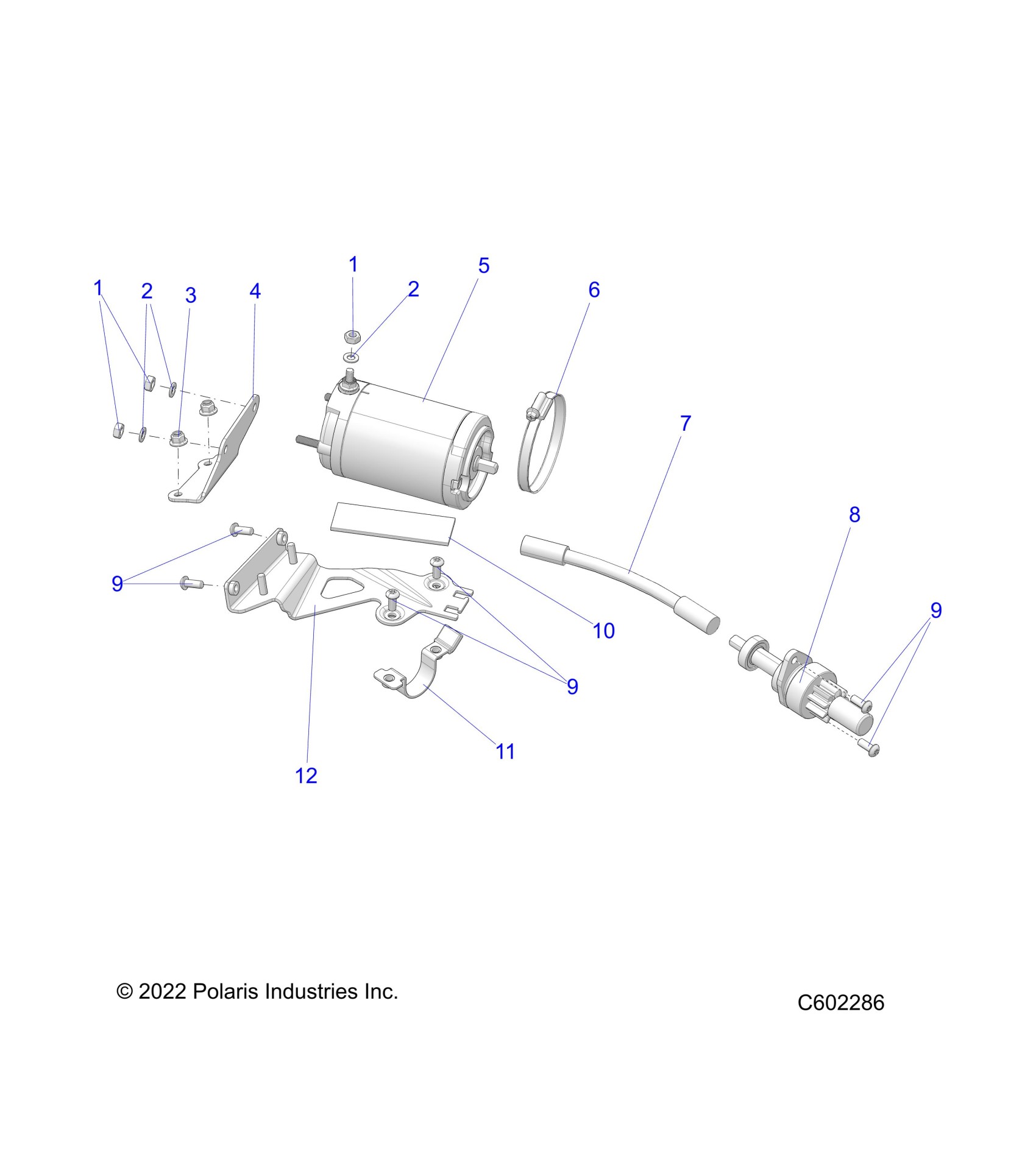

Polaris PATRIOT BOOST INDY VR1 129 ALL OPTIONS (R03) - S23TKV8MS ENGINE, STARTER MOTOR - S23TKV8MS (C602286) Diagram

#

Description
Price

1

NUT-1/4-20 HEX-Y

7542105

$3.99

1

NUT-1/4-20 HEX-Y

7542105

$3.99

2

WASHER, SPRING LOCK

7552801

$1.59

2

WASHER, SPRING LOCK

7552801

$1.59

3

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

4

BRACKET, ELECTRIC START/CLIP

5269782

$12.94

5

MOTOR, STARTER

4018147

$399.99

6

CLAMP-BAND,NARROW 70-90MM

7081279

$3.19

7

SHAFT, FLEX, STARTER 7.11

6230404

$94.99

8

ASM-PINION

1205959

Unavailable

9

SCR-TXPH-M6X1.0X15 GR5 ZOD NYL

7518656

$3.99

9

SCR-TXPH-M6X1.0X15 GR5 ZOD NYL

7518656

$3.99

9

SCR-TXPH-M6X1.0X15 GR5 ZOD NYL

7518656

$3.99

10

FOAM-SEAL,REAR COOLER

5810947

$4.03

11

ASM-BRKT ES/UCA TUBE LOWER

1028074

$24.27

12

ASM-BRKT ES/UCA TUBE UPPER

1025865

$48.56
