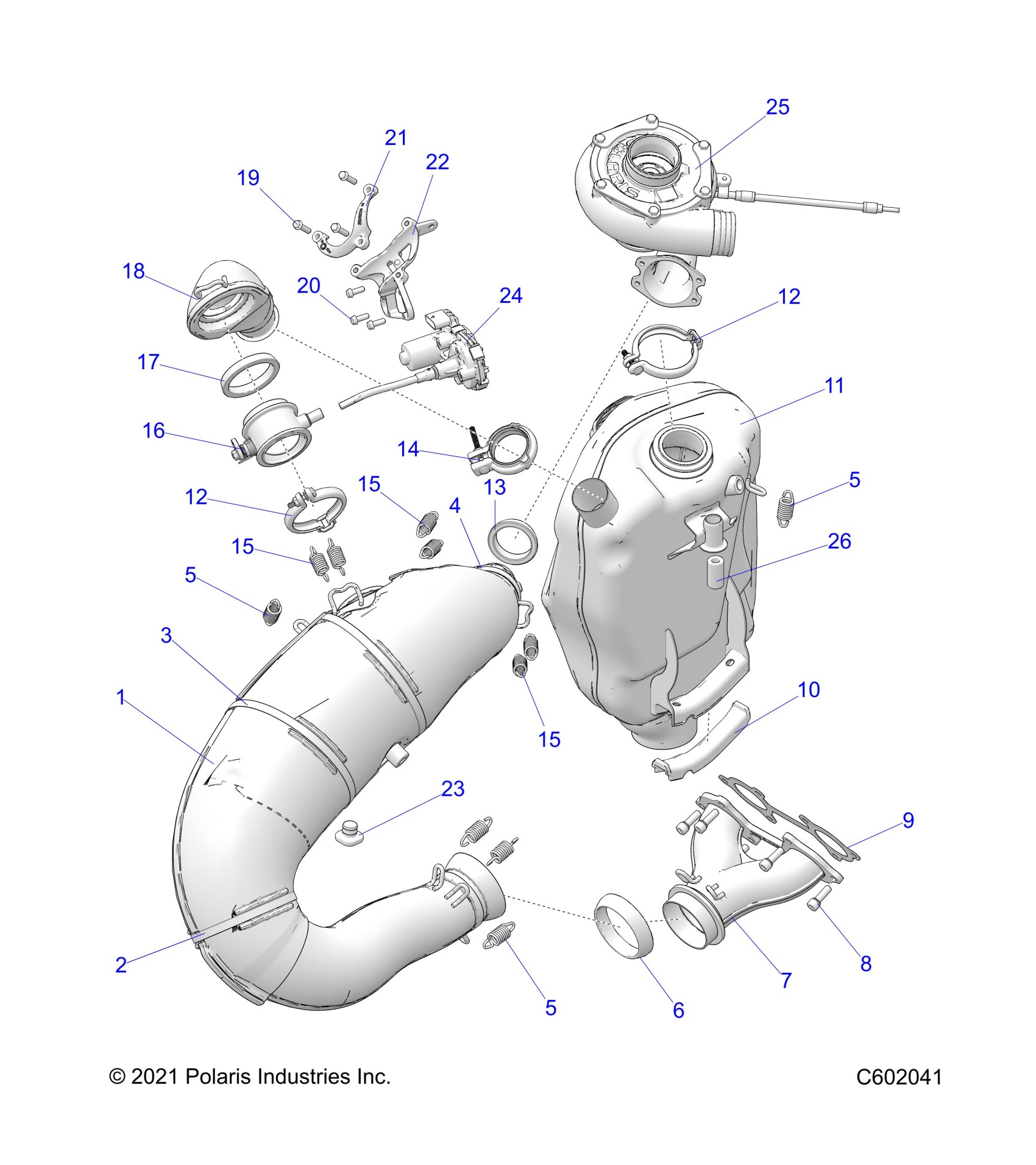

Polaris PATRIOT BOOST INDY VR1 129 ALL OPTIONS (R03) - S23TKV8MS ENGINE, EXHAUST SYSTEM AND TURBO ASM. - S23TKV8MS (C602041) Diagram

ASM-TUNED PIPE 850T INCL. 2-4

1263492

$779.43

SENSOR-EGT 800CH SEE ELECTRICAL, SWITCHES AND COMPONENTS

-------

Unavailable

CLAMP-HEAT SHIELD, EXH

7082780

$10.46

K-SPRING, EXHAUST

2207052

$12.79

CLAMP-HEAT SHIELD, EXH

7082779

$10.99

K-SPRING, EXHAUST

2207052

$12.79

CLAMP-HEAT SHIELD, EXH

7082781

$10.99

K-SPRING, EXHAUST

2207052

$12.79

SPRING-EXHAUST S.S. SHOTPEENED

7043727

$4.84

SPRING-EXHAUST S.S. SHOTPEENED

7043727

$4.84

SPRING-EXHAUST S.S. SHOTPEENED

7043727

$4.84

SEAL-EXHAUST

3610399

$19.99

WELD-MANIFOLD,840T,BLK

1263713-029

$186.17

SCR-M8X1.25X25,HX/SOC/SEMS-Y

7517322

$2.39

GASKET-EXH MANIFOLD

5815159

$28.56

ISOLATOR-EXHAUST SILENCER LWR

5416854

$11.32

WELD-RESONATOR 850T BLK

1263493-029

$874.99

CLAMP-VBAND, EXHAUST

7082763

$44.99

CLAMP-VBAND, EXHAUST

7082763

$44.99

SEAL-EXHAUST

3610397

$36.41

ASM-CLAMP V-BAND 45MM

1027595

$59.99

SPRING-EXHAUST S.S. SHOTPEENED

7043726

$4.84

SPRING-EXHAUST S.S. SHOTPEENED

7043726

$4.84

SPRING-EXHAUST S.S. SHOTPEENED

7043726

$4.84

ASM-WASTEGATE,840T

1263560

Unavailable

SEAL-EXHAUST

3610370

$8.89

ASM-BYPASS TUBE BLK

1263494-029

Unavailable

SCREW-HXFLG,M6X1.0X25,10.9

7519297

$3.99

SCR-HXFL,M6X1.0X16 8.8ZY3DL204

7519329

$3.99

BRKT-CAP ACTUATOR CAST

5639236

$8.08

BRKT-ACTUATOR MAIN MACH

5144164

$36.41

MOUNT, PIPE, RUBBER

5413640

Unavailable

ASM-WG ACTUATOR + FLEX DRIVE [INCLUDES FLEX SHAFT]

1208816

$434.99

ASM-TURBO, W/ OIL LINE SEE ENGINE, TURBO ASSEMBLY

-------

Unavailable

SEAL-CROSS BRACE

3610380

$7.27
