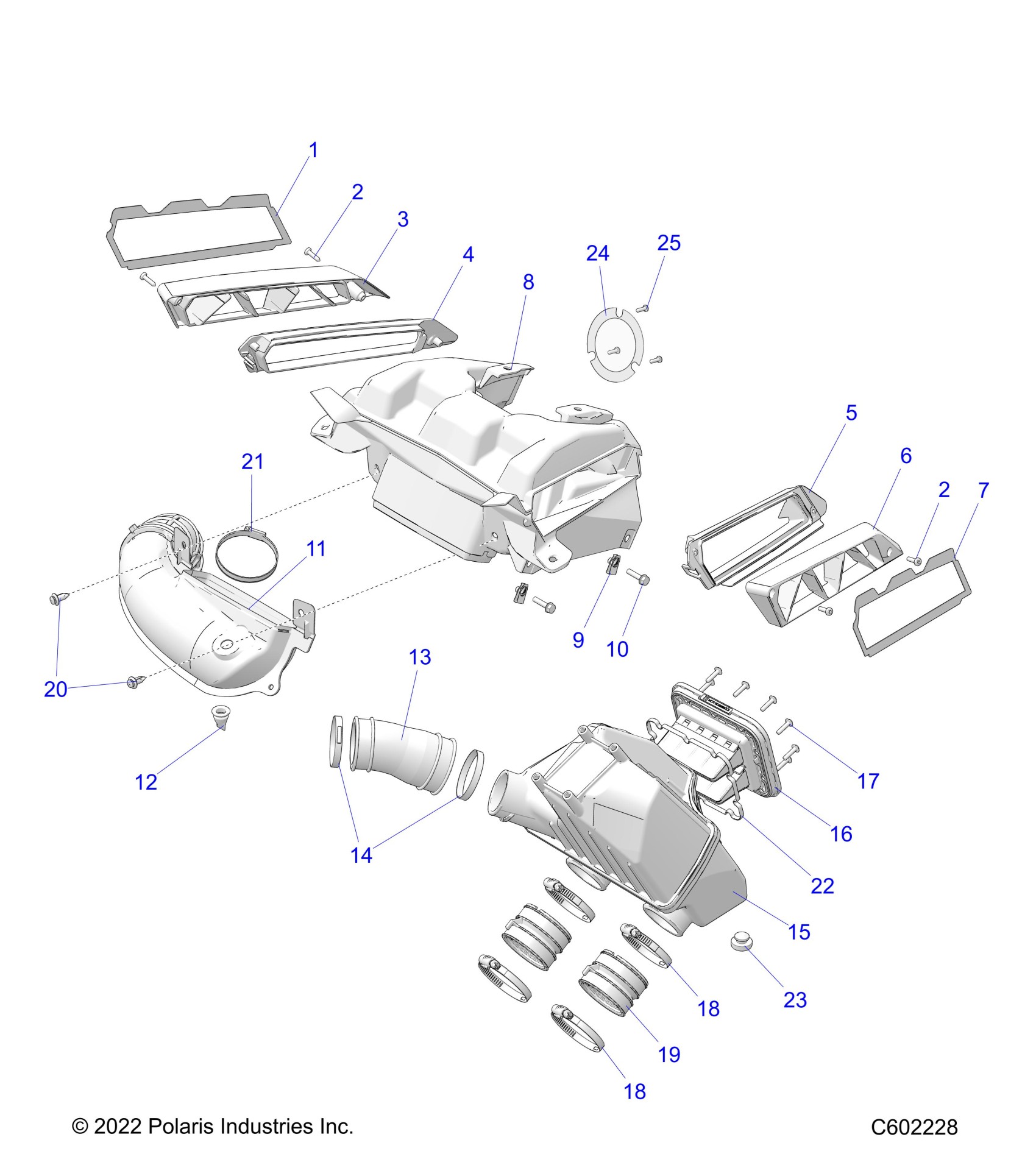

Polaris PATRIOT BOOST INDY VR1 129 ALL OPTIONS (R03) - S23TKV8MS ENGINE, AIR INTAKE SYSTEM - S23TKV8MS (C602228) Diagram

#

Description
Price

1

SCREEN-INTAKE RH

5814971

$27.99

2

SCREW-#10X3/4-HI/LO-PN-T25,TRX-M

7512026

$1.49

2

SCREW-#10X3/4-HI/LO-PN-T25,TRX-M

7512026

$1.49

3

VENT-INTAKE RH

5456411

$32.37

4

MOUNT-INTAKE RH

5458757

$13.75

5

MOUNT-INTAKE LH

5458756

$13.75

6

VENT-INTAKE LH

5456410

$32.37

7

SCREEN-INTAKE LH

5814970

$27.99

8

ASM-INTAKE

1208914

$145.22

9

CLIP-"U",M6.0X1.0

7547366

$5.99

10

SCR-M6X1.0X25-HX/FL-Y/D

7516823

$3.19

11

ASM-TUBE INTAKE

1206270

$97.13

11

CLAMP-BAND,NARROW

7082797

$7.99

12

PLUG-DRAIN

5414472

$5.59

13

TUBE-BOOST

5459026

$82.29

14

CLAMP, CONSTANT TENSION

7081413

$11.19

15

ASM-REED VALVE/BOOST BOX INCLUDES 16,17,22

1208820

$564.99

15

ASM-BOOST BOX BOOST BOX ONLY

1208821

$164.99

16

ASM-VALVE REED,BOOST BOX

1206300

$459.99

17

SCR-STS-PLUS KN6038,5X25-T25

7528030

$1.59

18

CLAMP-NARROW,SLOTTED 60-75MM

7082606

$9.59

18

CLAMP-NARROW,SLOTTED 60-75MM

7082606

$9.59

19

ADAPTER-THROTTLE BODY

5418120

$36.41

20

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

21

CLAMP-BAND,NARROW 60-80MM

7080707

$3.19

22

SEAL-REED VALVE, BOOST BOX

5418062

$7.99

23

BUMPER-RUBBER

5412067

$3.99

24

SCREEN-INTAKE BYPASS

5815374

$12.94

25

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.49
