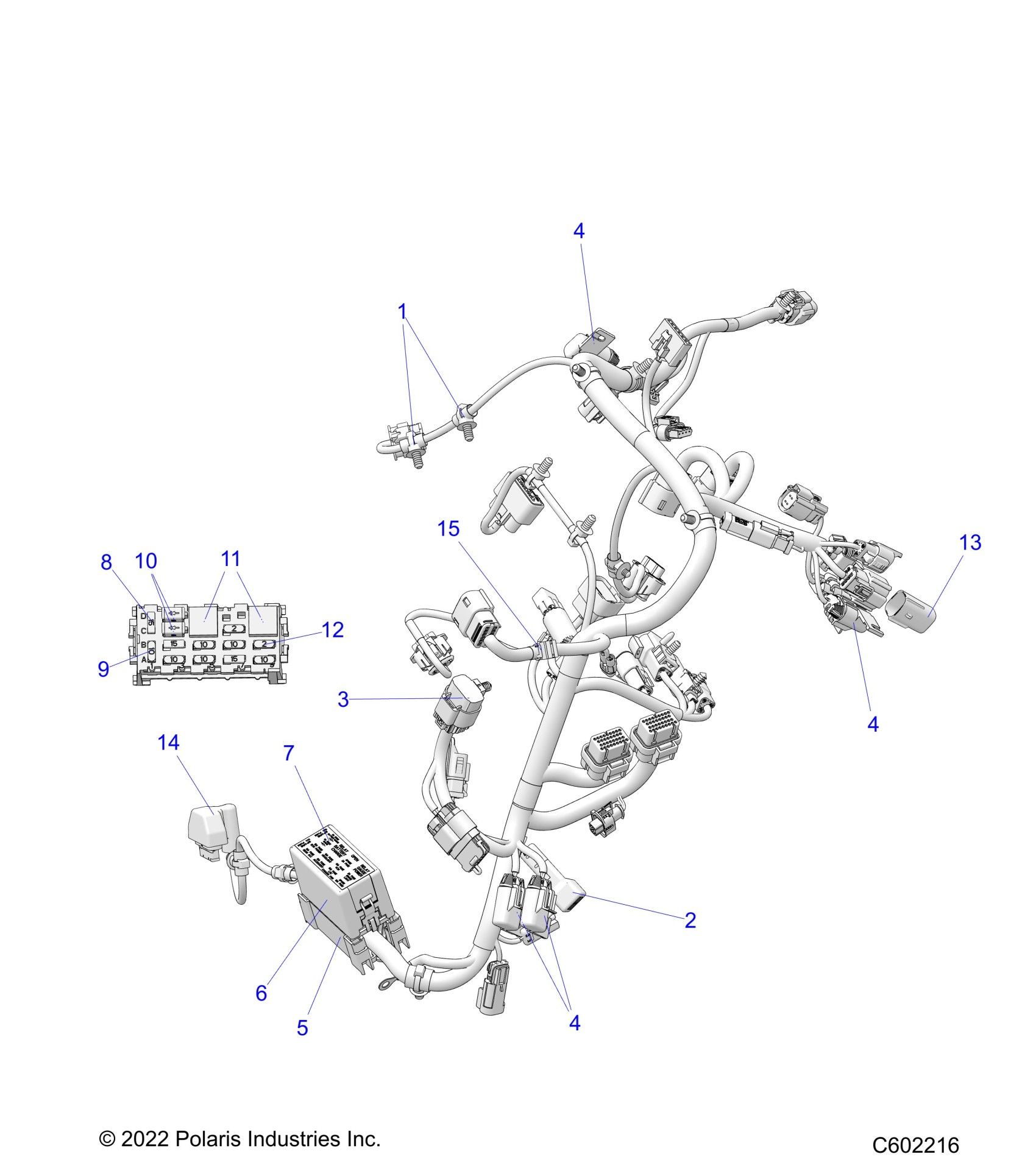

Polaris PATRIOT BOOST INDY VR1 129 ALL OPTIONS (R03) - S23TKV8MS ELECTRICAL, WIRE HARNESS, MAIN - S23TKV8MS (C602216) Diagram

#

Description
Price

-

HARNESS-MAIN STD 850T [INCL. 1-15]

2416046

$749.99

1

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

2

CAPACITOR-FILTER

4011441

$121.02

3

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

4

COVER-FUSEHOLDER

4012260

$9.70

4

COVER-FUSEHOLDER

4012260

$9.70

4

COVER-FUSEHOLDER

4012260

$9.70

5

CLIP-BASE,RELAY/FUSE CENTER

5450411

$10.39

6

COVER-RELAY/FUSE CENTER

5438758

$11.32

7

DECAL-RELAY/FUSE BLOCK

7196465

Unavailable

8

FUSE-MINI BLADE,15 AMP

2410280

Unavailable

9

FUSE-IGNITION,10 AMP

2434016

$4.79

10

DIODE-6AMP

4011474

$40.46

11

RELAY-SPST,12V,20A,EPXY,HFA

4016819

$32.37

12

FUSE-2AMP,ATM,BLADE STYLE,MINI

4010752

$4.84

13

CAP-CONNECTOR

5457301

$3.99

14

BOOT

-------

Unavailable

15

CLIP-EDGE,1-3MM THICKNESS

7082428

$4.79
