- PATRIOT BOOST INDY VR1 129 ALL OPTIONS (R03) - S23TKV8MS
CHASSIS, CLUTCH GUARD, FOOTRESTS, and RUNNINGBOARDS 129 - S23TKV8MS (C601666)

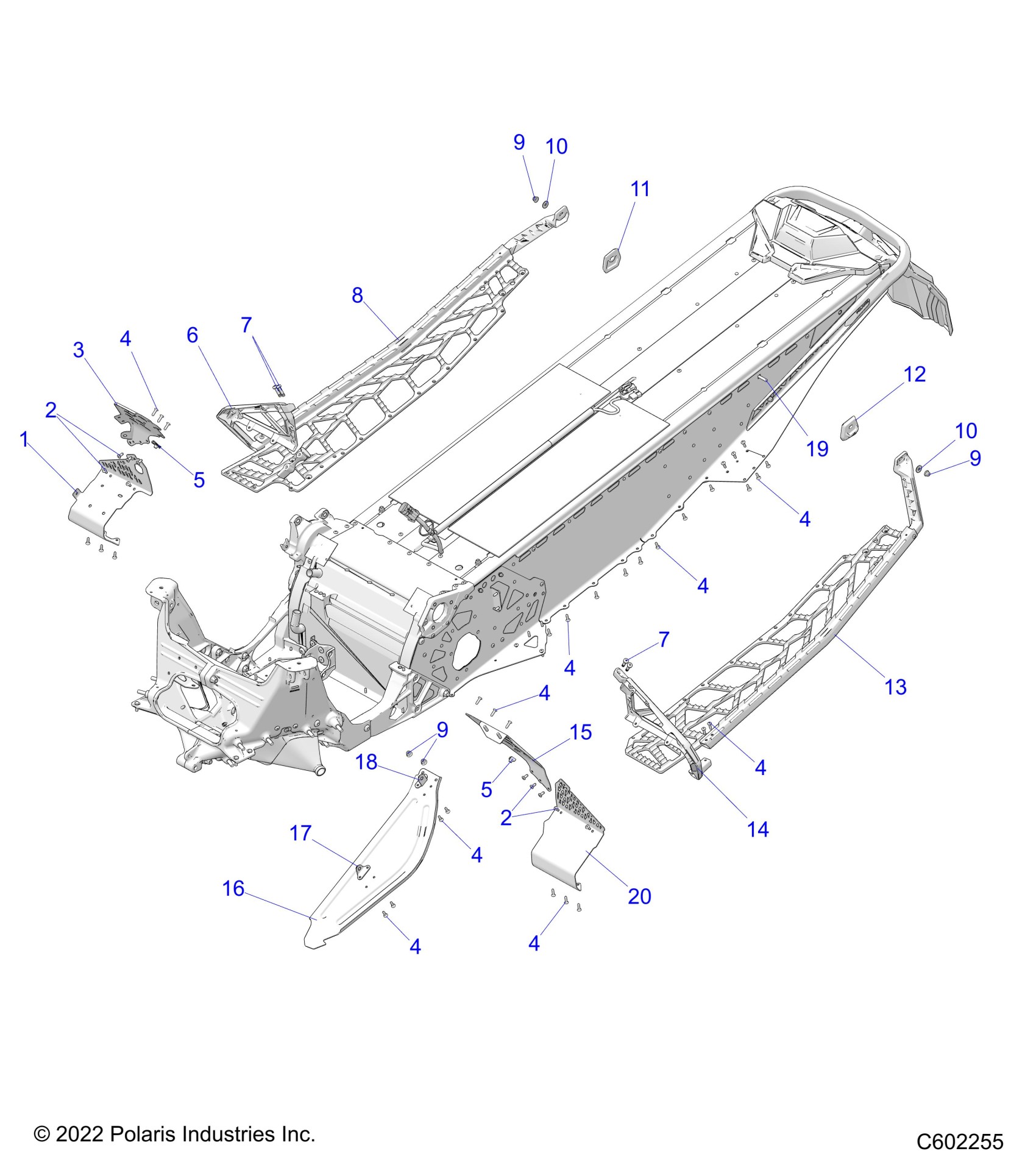

Polaris PATRIOT BOOST INDY VR1 129 ALL OPTIONS (R03) - S23TKV8MS CHASSIS, CLUTCH GUARD, FOOTRESTS, and RUNNINGBOARDS 129 - S23TKV8MS (C601666) Diagram
#
1
CLOSEOFF-FOOTREST RH
5272699
$104.99
2
RIVET-POP 3/16(.126-.250)-ST-B
7661973
$1.49
2
RIVET-POP 3/16(.126-.250)-ST-B
7661973
$1.49
3
ASM-CONSOLE SUPPORT [INCL. 5]
1027963
$28.32
4
RIVET-3/16-.090-.290
7661637
Unavailable
4
RIVET-3/16-.090-.290
7661637
Unavailable
4
RIVET-3/16-.090-.290
7661637
Unavailable
4
RIVET-3/16-.090-.290
7661637
Unavailable
4
RIVET-3/16-.090-.290
7661637
Unavailable
4
RIVET-3/16-.090-.290
7661637
Unavailable
4
RIVET-3/16-.090-.290
7661637
Unavailable
4
RIVET-3/16-.090-.290
7661637
Unavailable
4
RIVET-3/16-.090-.290
7661637
Unavailable
5
CLIP-"U",M6.0X1.0
7547366
$5.99
5
CLIP-"U",M6.0X1.0
7547366
$5.99
6
SUPPORT-FOOTREST RH MACH BLK COLOR OPTION
5143267-067
$68.79
6
SUPPORT-FOOTREST RH MACH RED COLOR OPTION
5143267-293
$68.79
6
SUPPORT-FOOTREST RH MACH ORG COLOR OPTION
5143267-647
$68.79
6
SUPPORT-FOOTREST RH VELOCITY BLUE COLOR OPTION
5143267-689
$68.79
6
SUPPORT-FOOTREST RH MACH LFTDLIME COLOR OPTION
5143267-801
$60.70
7
SCR-TXPH-M6X1.0X25 P80 ZC
7521292
$2.39
7
SCR-TXPH-M6X1.0X25 P80 ZC
7521292
$2.39
8
ASM-RUNNINGBOARD 129 RH BLK COLOR OPTION
1027425-067
$359.99
8
ASM-RUNNINGBOARD 129 RH RED COLOR OPTION
1027425-293
$359.99
8
ASM-RUNNINGBOARD 129 RH ORG COLOR OPTION
1027425-647
$359.99
8
ASM-RUNNINGBOARD 129 RH VELBLU COLOR OPTION
1027425-689
$359.99
8
ASM-RUNNINGBRD 129 RH LFTDLIME COLOR OPTION
1027425-801
$359.99
9
NUT-HXFL-M6X1.0 8 ZB3 NYL
7547453
$3.99
9
NUT-HXFL-M6X1.0 8 ZB3 NYL
7547453
$3.99
9
NUT-HXFL-M6X1.0 8 ZB3 NYL
7547453
$3.99
10
WSHR-6.4X18.0X1.6 ZPB
7556064
$5.22
10
WSHR-6.4X18.0X1.6 ZPB
7556064
$5.22
11
SPACER-RUNNINGBRD REAR RH, BLK COLOR OPTION
5634116-067
$28.56
11
SPACER-RUNNINGBRD REAR RH, RED COLOR OPTION
5634116-293
$28.56
11
SPACER-RUNNINGBRD REAR RH ORGB COLOR OPTION
5634116-647
$28.56
11
5634116-689 SPACER-RUNNINGBRD REAR RH VELB COLOR OPTION
5634116-689
$28.56
11
SPACER-RUNNINGBRD REAR RH LLM COLOR OPTION
5634116-801
$28.56
12
SPACER-RUNNINGBRD REAR LH, BLK COLOR OPTION
5633989-067
$28.56
12
SPACER-RUNNINGBRD REAR LH, RED COLOR OPTION
5633989-293
$28.56
12
SPACER-RUNNINGBRD REAR LH ORGB COLOR OPTION
5633989-647
$28.56
12
SPACER-RUNNINGBRD REAR LH VELB COLOR OPTION
5633989-689
$28.56
12
SPACER-RUNNINGBRD REAR LH LLM COLOR OPTION
5633989-801
$28.56
13
ASM-RUNNINGBOARD 129 LH BLK COLOR OPTION
1027424-067
$359.99
13
ASM-RUNNINGBOARD 129 LH RED COLOR OPTION
1027424-293
$359.99
13
ASM-RUNNINGBOARD 129 LH ORG COLOR OPTION
1027424-647
$359.99
13
ASM-RUNNINGBOARD 129 LH VELBLU COLOR OPTION
1027424-689
$359.99
13
ASM-RUNNINGBRD 129 LH LFTDLIME COLOR OPTION
1027424-801
$359.99
14
SUPPORT-FOOTREST LH MACH BLK COLOR OPTION
5143266-067
$68.79
14
SUPPORT-FOOTREST LH MACH RED COLOR OPTION
5143266-293
$68.79
14
SUPPORT-FOOTREST LH MACH ORG COLOR OPTION
5143266-647
$68.79
14
SUPPORT-FOOTREST LH VELOCITY BLUE COLOR OPTION
5143266-689
$68.79
14
SUPPORT-FOOTREST LH MACH LFTDLIME COLOR OPTION
5143266-801
$60.70
15
ASM-CLUTCH GUARD SUPPORT
1025155
$40.46
16
ASM-GUARD CLUTCH [INCL. 4,17,18]
1025167
$82.29
17
ASM-BRKT OIL BOTTLE FRONT
1025803
Unavailable
18
ASM-BRKT OIL BOTTLE REAR
1025804
Unavailable
19
BOLT-CARR. M6x1.0x30 CL8.8 ZC CL
7520559
$3.99
20
CLOSEOFF-FOOTREST LH
5269374
$104.99
