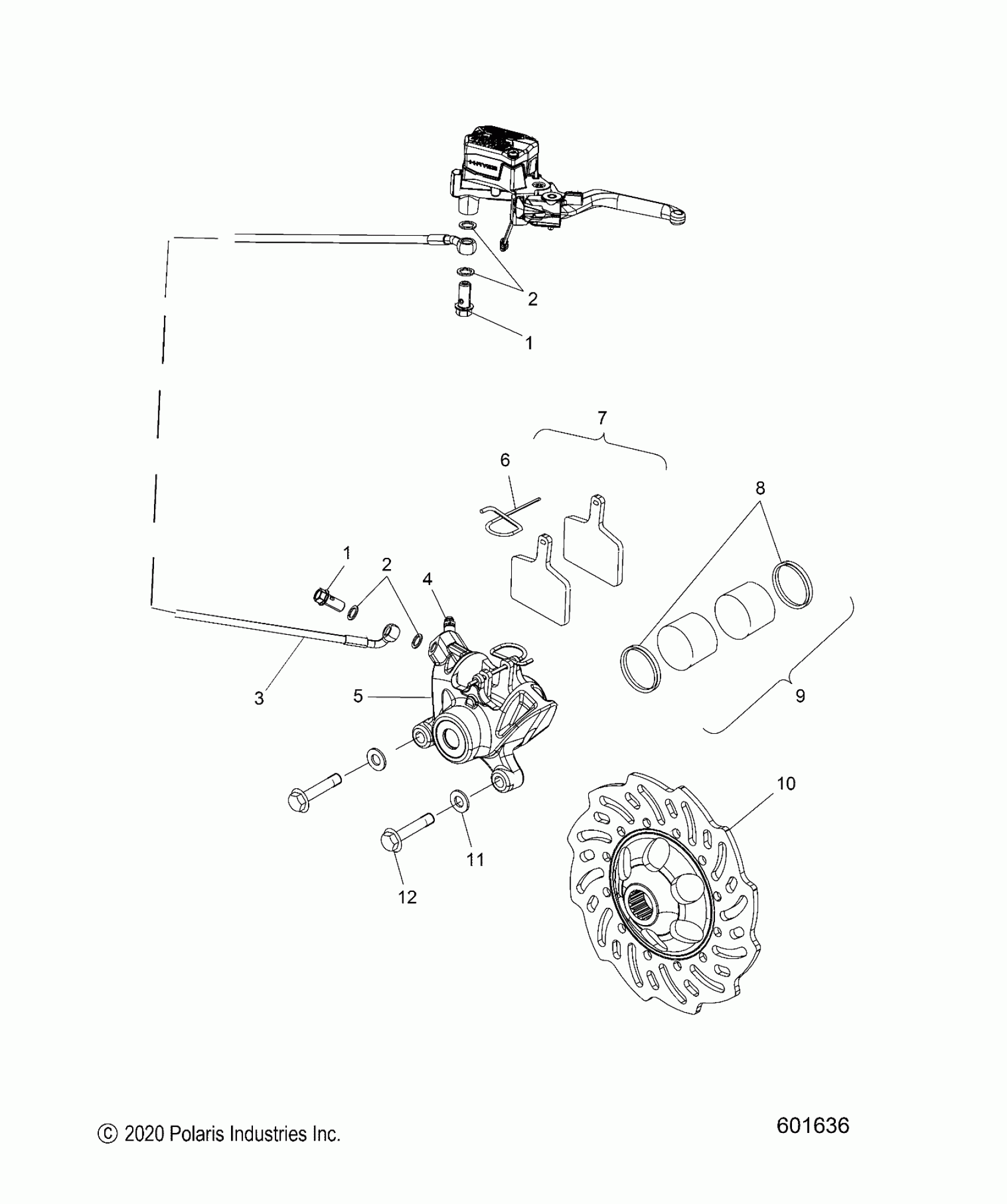

Polaris PATRIOT BOOST INDY VR1 129 ALL OPTIONS (R03) - S23TKV8MS BRAKES, BRAKE SYSTEM - S23TKV8MS (601636) Diagram

CABLE-TIE,DIA12-50MM,WTHR-RES. [NOT SHOWN]

7080138

$2.41

CLIP FIR-TREE,DIA6-33MM [NOT SHOWN]

7081496

$4.79

K-BANJO BOLT M10X1.25 98-38092

2208430

$19.99

K-BANJO BOLT M10X1.25 98-38092

2208430

$19.99

K-COPPER CRUSH WASHER 98-20931

2203393

$24.27

K-COPPER CRUSH WASHER 98-20931

2203393

$24.27

K-BRKLN 600MM 20X70 98-38091

2208403

$150.06

K-BLEEDER FITTING

2202205

$36.41

K-CALIPER, FULL ASM. [INCL. PISTON, PADS, BLEEDER]

2205501

$444.99

K-BRAKE PAD RET. PIN

2202206

$23.99

K-BRAKE PAD, HOLDER, AND PIN

2205500

$99.99

K-ASM,HD,PAD,BRK,TYP131,SNO [HEAVY DUTY PAD OPTION]

2209690

$117.37

K-PISTON SEALS [2 PER]

2202204

$40.46

K-PISTONS AND SEALS [INCL. 2 OF EACH]

2204035

$67.99

K-SERVICE DISC, LWT

2205373

$294.99

K-ASM,HD,BRK,PAD,W/FF,DISC,SNO [HEAVY DUTY BRAKE PAD W/BRAKE DISC OPTION]

2209691

$439.99

WASHER-M10.4X25X2.4 ZOD

7556473

$2.39

SCR-M10X1.5X35 HXFL ZOD P30

7518957

$3.19
