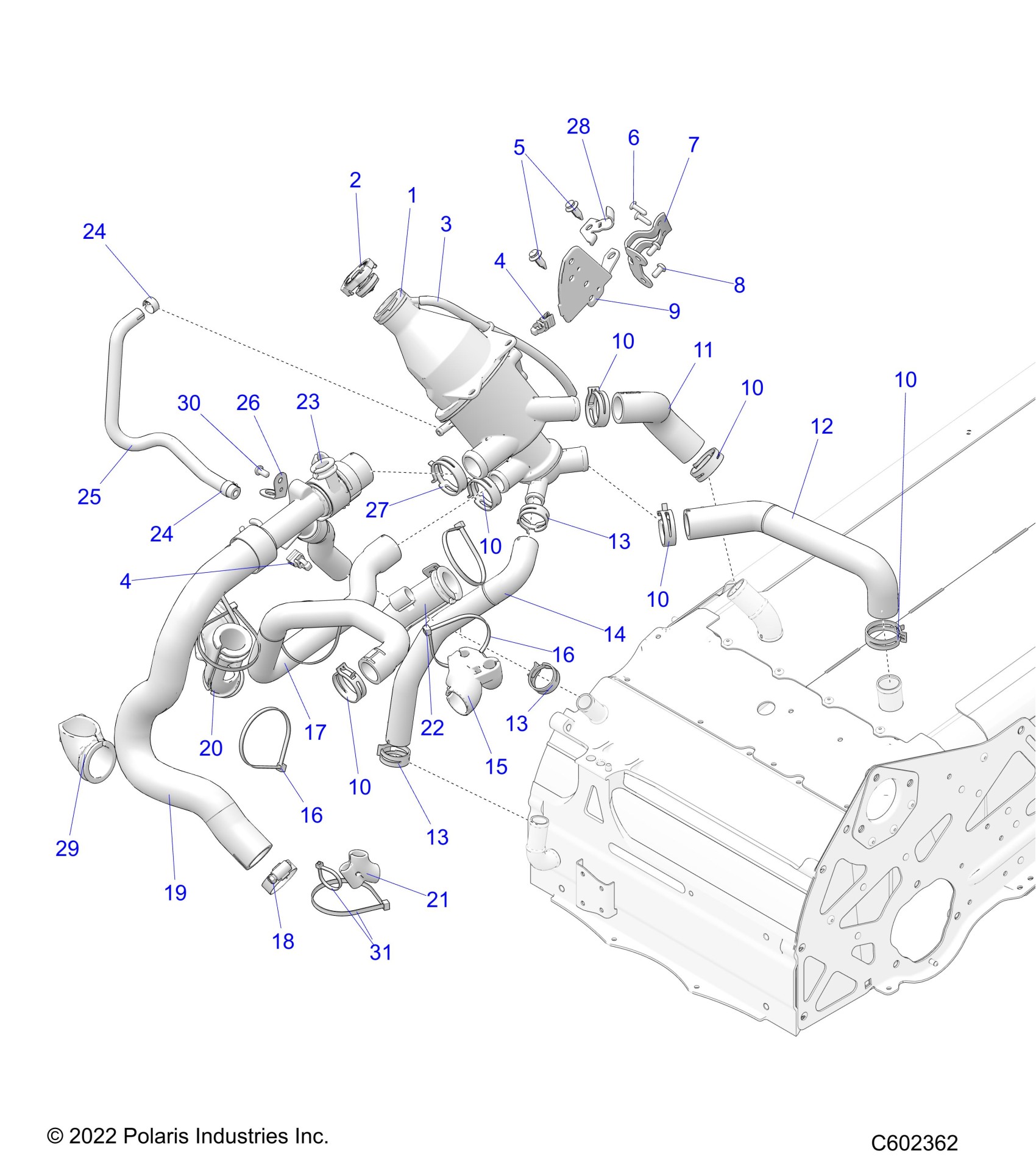

Polaris PATRIOT 9R RMK PRO 155 SLASH ALL OPTIONS (R02) - S23TFM9BS ENGINE, COOLING SYSTEM - S23TFM9BS (C602362) Diagram

#

Description
Price

1

WELD-COOLANT BOTTLE DOUBLE

1244767

$104.99

2

CAP-PRESSURE

1240300

$40.46

3

HOSE, FUEL [BULK SVC]

8450003-1525

Unavailable

4

CLIP- EDGE, 1-3MM THICKNESS

7082427

$5.59

4

CLIP- EDGE, 1-3MM THICKNESS

7082427

$5.59

5

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

6

RIVET-3/16-.090-.290

7661637

$1.49

7

BRKT-COOLANT BOTTLE

5264108

$6.46

8

SCR-TXBH-M6X1.0X12 8.8 ZPB D20

7519063

$3.99

9

BRKT-CONNECTOR PLACEMENT TP

5454759

$6.46

10

SPRINGBAND-CLAMP 32/12,BROWN

7080843

$3.99

10

SPRINGBAND-CLAMP 32/12,BROWN

7080843

$3.99

10

SPRINGBAND-CLAMP 32/12,BROWN

7080843

$3.99

10

SPRINGBAND-CLAMP 32/12,BROWN

7080843

$3.99

10

SPRINGBAND-CLAMP 32/12,BROWN

7080843

$3.99

10

SPRINGBAND-CLAMP 32/12,BROWN

7080843

$3.99

11

HOSE-TUNNEL COOLER/BOTTLE

5417766

$24.27

12

HOSE-T-STAT/TUNNEL COOLER

5417767

$28.32

13

SPRINGBAND-CLAMP 26/12

7081692

$4.03

13

SPRINGBAND-CLAMP 26/12

7081692

$4.03

13

SPRINGBAND-CLAMP 26/12

7081692

$4.03

14

HOSE-FRONT COOLER FEED

5417712

$24.27

15

HOSE-SUPPORT

5418359

$28.32

16

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

Unavailable

16

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

Unavailable

17

HOSE - ENGINE/BOTTLE

5417434

$40.46

18

CLAMP-HOSE, 1.750-SS

7080560

$11.19

19

ASM-HOSE

1263554

$96.81

20

HOSE-SUPPORT

5417714

$36.41

21

SUPPORT-FUEL LINE/OIL LINE

5416539

$7.27

22

HOSE-SUPPORT

5417713

$32.37

23

HOSE-SUPPORT

5417751

$28.32

24

CLAMP-HOSE, 9/16, SPRING-B

7080534

$1.59

24

CLAMP-HOSE, 9/16, SPRING-B

7080534

$1.59

25

HOSE-T-BODY/COOLANT BOTTLE

5417435

$9.70

26

GUIDE-ROPE

5271324

$6.46

27

SPRINGBAND-CLAMP 38/12,BLK

7082025

$5.59

28

BRKT-OIL LINE

5272303

$9.70

29

SUPPORT-HOSE

5416866

$28.32

30

SCREW-TXBH-M6X1 X10 8.8 ZPB P85

7521091

$3.99

31

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41
