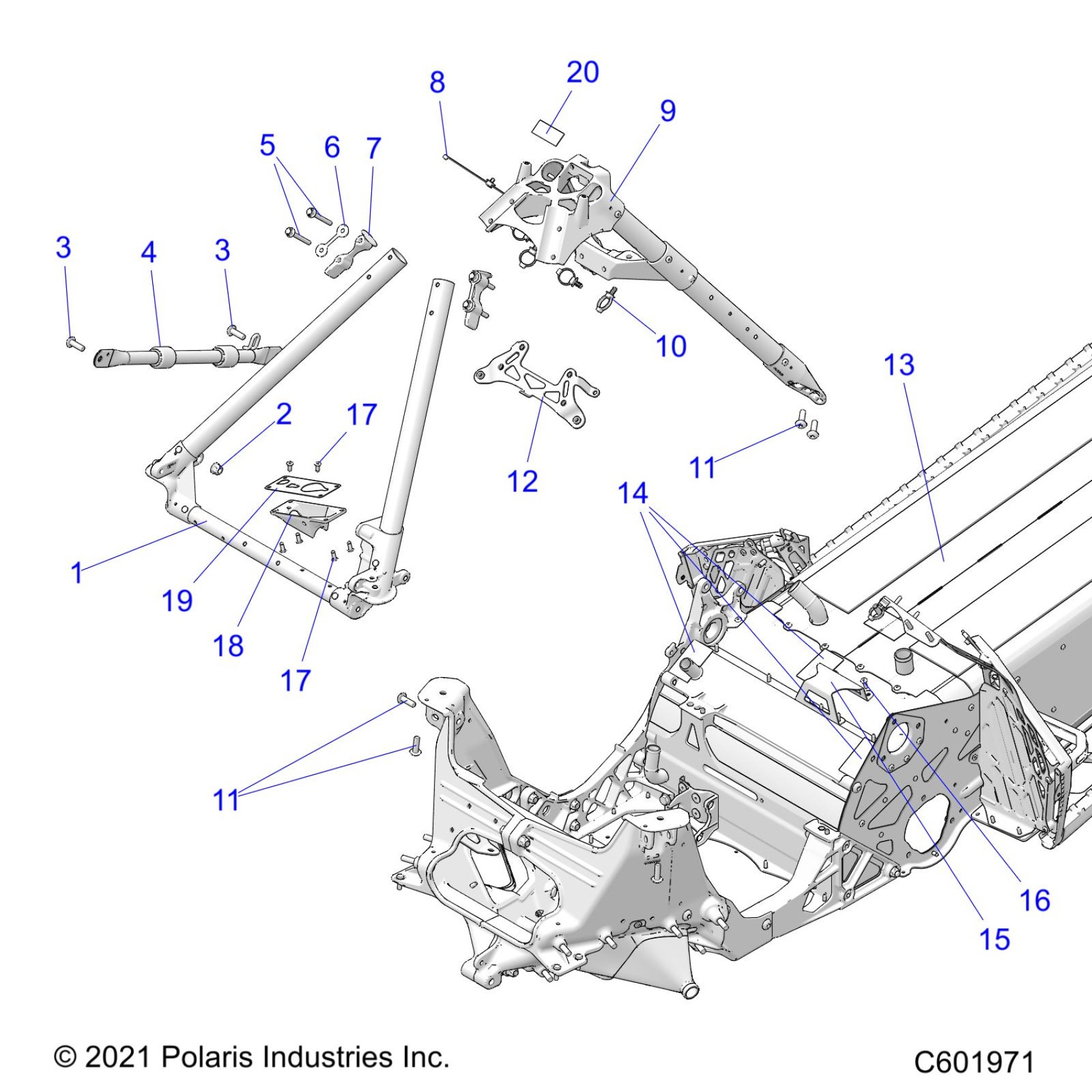

Polaris PATRIOT 9R RMK PRO 155 SLASH ALL OPTIONS (R02) - S23TFM9BS CHASSIS, CHASSIS ASM. and OVER STRUCTURE - S23TFM9BS (C601971) Diagram

#

Description
Price

1

ASM., FRAME, TUBE, FRONT RMK CF INCL. FOIL

1023850

$419.99

1

FOIL-100MM X 200MM

5814124

$8.99

2

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

3

SCR-M8X1.25X25 8.8TXTR ZOD P80

7518906

$3.19

3

SCR-M8X1.25X25 8.8TXTR ZOD P80

7518906

$3.19

4

WELD-CROSS BRACE BLK

1026865

$74.99

5

SCR-HXFL-M6X1.0X55 10.9 ZODP30

7520721

$3.99

6

SHIM, TUBE

5633083

$6.99

7

SPACER, TUBE CAST

5632923

$9.99

8

CABLE-TIE,DIA2.5-34MM,FIR-TREE

7082003

$3.19

9

ASM-FRAME TUBULAR REAR RMK

1026175

$584.99

10

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

11

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

11

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

12

ASM-REGULATOR MOUNT RMK

1023231

$32.37

13

ASM-CHASSIS 850 155 NAT [NATURAL COLOR OPTION][INCL. BULKHEAD AND QD BACKER PLATE]

1027499-309

$2,059.99

13

ASM-TUNNEL ONE PIECE 155 NAT [NATURAL COLOR OPTION]

1025874-309

Unavailable

13

ASM-CHASSIS 850 155 BLK [BLACK COLOR OPTION][INCL. BULKHEAD AND QD BACKER PLATE]

1027499-067

$2,059.99

13

ASM-TUNNEL ONE PIECE 155 BLK [BLACK COLOR OPTION]

1025874-067

$1,434.99

13

ASM-CHASSIS 850 155 INDYRED [RED COLOR OPTION][INCL. BULKHEAD AND QD BACKER PLATE]

1027499-293

$2,059.99

13

ASM-TUNNEL ONE PIECE 155 RED [RED COLOR OPTION]

1025874-293

$1,329.99

13

ASM-CHASSIS 850 155 ORG BURST [ORANGE COLOR OPTION][INCL. BULKHEAD AND QD BACKER PLATE]

1027499-647

Unavailable

13

ASM-TUNNEL ONE PIECE 155� ORG [ORANGE COLOR OPTION]

1025874-647

$1,329.99

13

ASM-CHASSIS 850 155 VELBLUE [VELOCITY BLUE COLOR OPTION][INCL. BULKHEAD AND QD BACKER PLATE]

1027499-689

Unavailable

13

ASM-TUNNEL ONE PIECE 155 VELBLUE [VELOCITY BLUE COLOR OPTION]

1025874-689

$1,254.99

13

ASM-CHASSIS 850 155 LFTD LIME [LIFTED LIME COLOR OPTION][INCL. BULKHEAD AND QD BACKER PLATE]

1027499-801

$2,059.99

13

ASM-TUNNEL ONE PIECE 155 LFTLM [LIFTED LIME COLOR OPTION]

1025874-801

Unavailable

14

PAD

5814353

$9.70

15

BRKT-AIRBOX SUPPORT

5271212

$11.32

16

RIVET-3/16-.090-.290

7661637

$1.49

17

RIVET-POP 3/16(.126-.250)-ST-B

7661973

$1.49

17

RIVET-POP 3/16(.126-.250)-ST-B

7661973

$1.49

18

MOUNT-LOAD CENTER

5454789

$9.70

19

BRKT-LOAD CENTER

5265340

$4.84

20

PAD-51X22

5814828

$2.41
