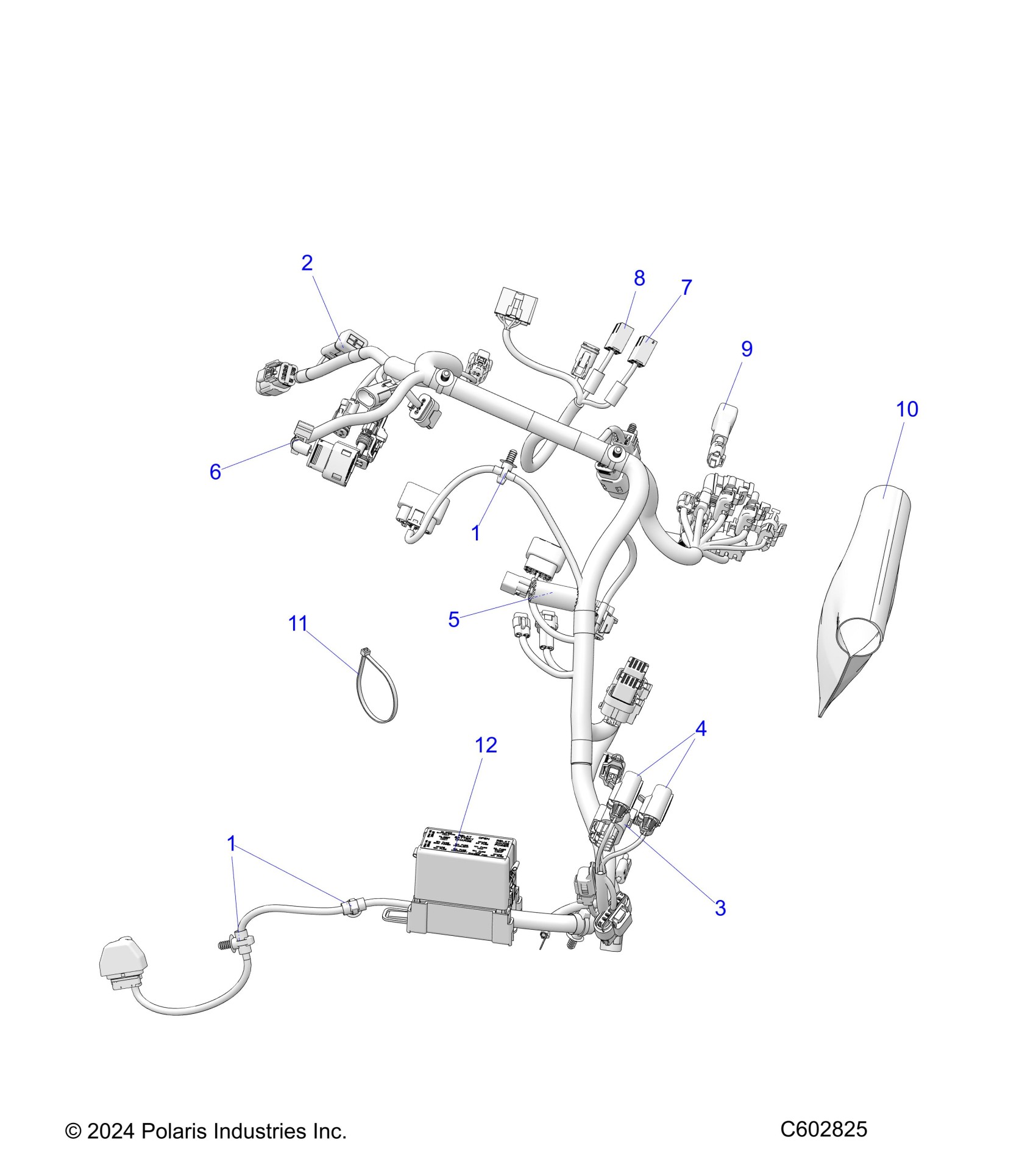

Polaris PATRIOT 9R PRO RMK 155 LE ALL OPTIONS (R01) - S26TFM9BSB/9BSC ELECTRICAL, WIRE HARNESS, MAIN - S26TFM9BSB/9BSC (C602825) Diagram

#

Description

Price

-

HARN-MAIN RMK 650/850/9R [INCL. 1-9]

2417736

$904.99

1

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

1

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

2

CAPACITOR-FILTER

4011441

$121.02

3

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

4

COVER-FUSEHOLDER

4012260

$9.70

5

CLAMP-HARNESS FERRITE

4018398

$12.99

6

CLIP-EDGE,1-3MM THICKNESS

7082428

$4.79

7

CONNECTOR-SW, OTTO K1, 3 WIRE

4080467

$10.51

8

CONNECTOR-SW, OTTO K1, 2 WIRE

4080468

$10.51

9

JUMPER-THROTTLE MICRO RMK

2417729

$12.79

10

COVER, HARNESS, LARGE

2687631

$24.19

11

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

11

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

12

FUSE BOX SEE ELECTRICAL, FUSE BLOCK, FUSES

-------

Unavailable
