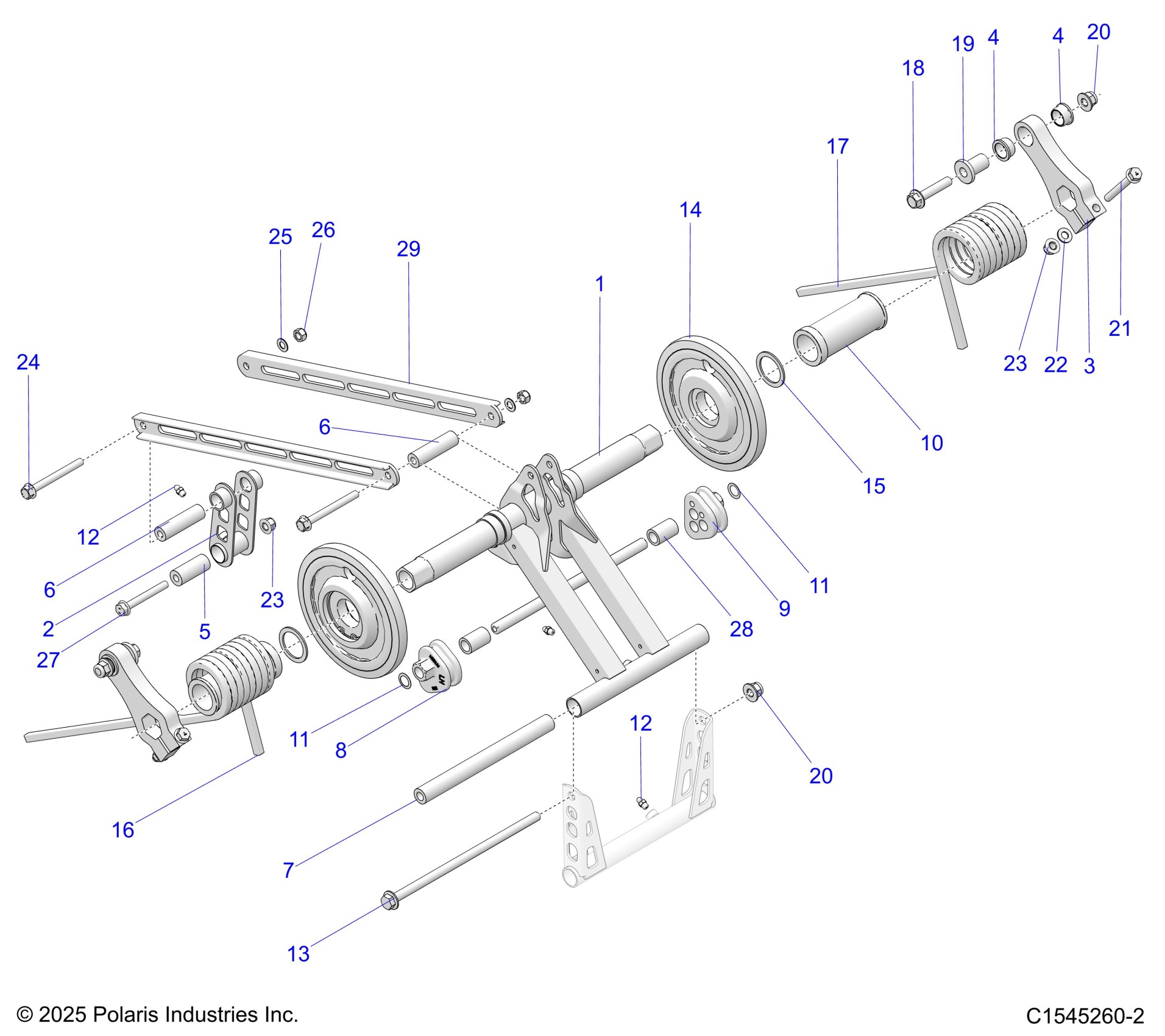

Polaris PATRIOT 9R INDY XCR 129 (R01) - S26TKL9BS SUSPENSION, TORQUE ARM, REAR - S26TKL9BS (C1545260-2) Diagram

#

Description
Price

1

WELD-RTA ECOAT

1543906-329

Unavailable

2

WELD-SHOCK PIVOT ARM ECOAT

1544017-329

$36.41

3

ASM-ARM 83.2 NARROW [INCLUDES 4]

1544129

$40.46

4

BUSHING, CRANK

5438876

$7.99

4

BUSHING, CRANK

5438876

$7.99

5

BUSHING-SHOCK PIVOT ARM

5142127

$11.99

6

BUSHING-PULL ROD

5142128

$8.79

6

BUSHING-PULL ROD

5142128

$8.79

7

SHAFT-RTA LOWER

5142129

$24.27

8

ROLLER-SPRING,TRI-ADJ,LH

5434589

$32.37

9

ROLLER-SPRING,TRI-ADJ,RH

5434590

$28.32

10

SLEEVE-TORSION SPRING

5434989

$3.99

11

CLIP-PUSH ON

7080394

$2.39

11

CLIP-PUSH ON

7080394

$2.39

12

FITTING-LUBRICATION 1/4-28

7080424

$4.79

12

FITTING-LUBRICATION 1/4-28

7080424

$4.79

13

SCR-HXFL-M10X1.5X230 8.8 ZY3

7518472

$6.39

14

ASM-WHEEL,PLAIN,6.38,6007

1590001

$72.84

14

BEARING-6007

3514445

Unavailable

14

RING-RETAINING

7710486

Unavailable

15

WSHR-1.28X1.69X.075-Y

7555939

Unavailable

16

SPRING-TOR,.375S,90,13#,LH BLK

7046153-329

$117.37

17

SPRING-TOR,.375S,90,13#,RH BLK

7046154-329

$117.37

18

SCR-M10X1.5X50 8.8 HX/FL ZOD

7518971

$6.39

19

SHAFT-RTA MOUNT

5141400

$13.75

20

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$3.99

20

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$3.99

21

SCR-M8X1.25X65-HX/FL-Y,CL 10.9

7519212

$4.79

22

WASHER-.344X.688X.063 FL-ZOD

7556524

$1.49

23

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

23

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

24

SCR-HXFLG,M8X1.25X90

7519154

$7.19

25

WASHER-FL 8.4X16.0X.91 HRD ZOD

7557059

$3.19

26

NUT-HEX-M8X1.25 8 ZOD NYL

7547480

$2.39

27

SCR-HXFL-M8X1.25X65 10.9 ZFB

7521332-65

$1.64

28

SPACER-.520X.770X1.185,HDPE

5334285

$2.39

29

ROD-SHOCK HD MACH ANOD

5144133

$44.43
