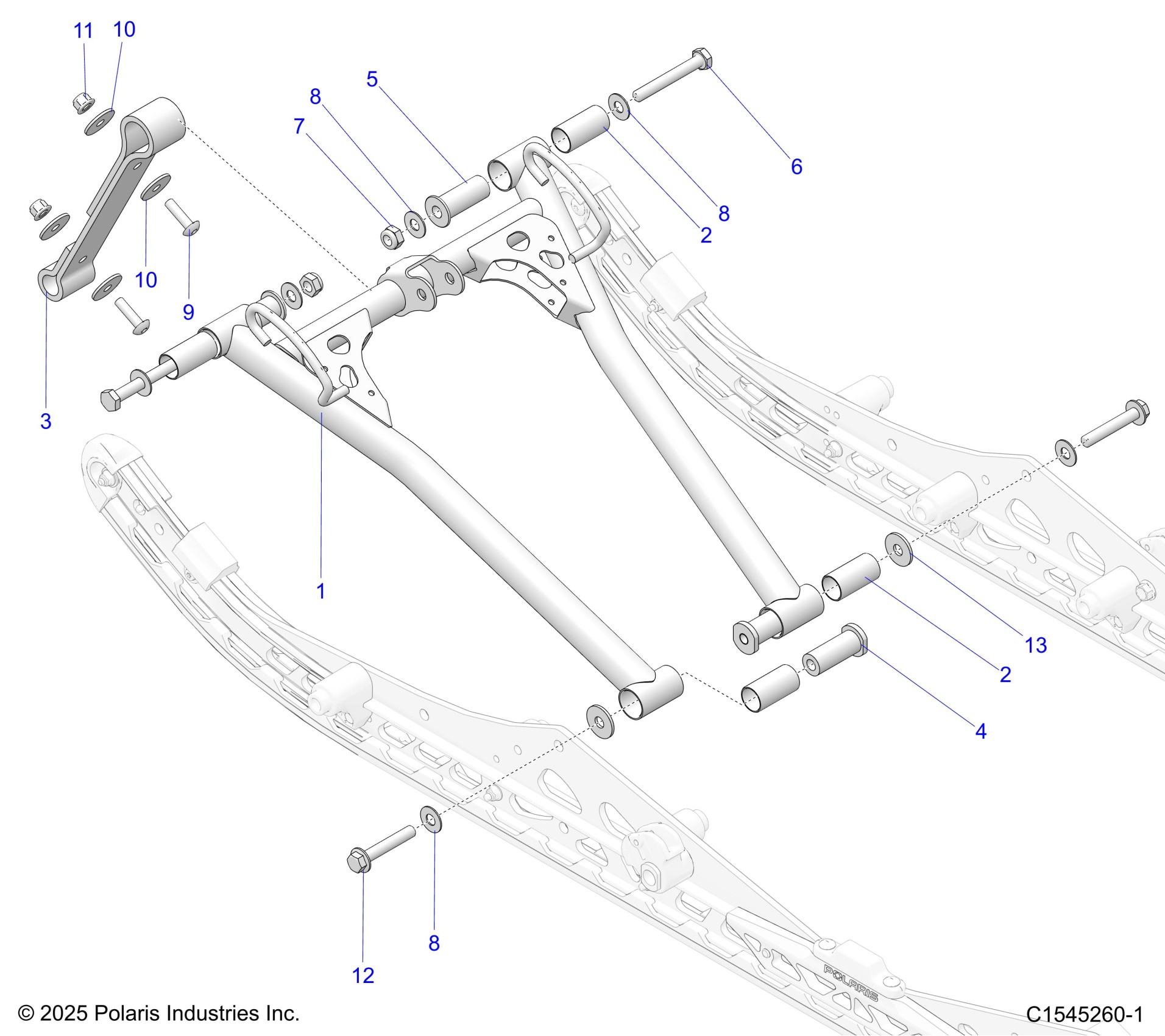

Polaris PATRIOT 9R INDY XCR 129 (R01) - S26TKL9BS SUSPENSION, TORQUE ARM, FRONT - S26TKL9BS (C1545260-1) Diagram

#

Description
Price

1

ASM-FTA HD BLK [INCLUDES 2]

1544212-329

$354.99

2

BUSHING-PIVOT

5438875

$11.99

2

BUSHING-PIVOT

5438875

$11.99

3

STRAP-LIMITER

5414733

$24.27

4

MOUNT-FTA M10 TAPPED

5142777

$32.37

5

SHAFT-PIVOT

5137367

$28.32

6

SCR-M10X1.5X75 10.9 HCS ZOD

7519015

$5.59

7

NUT-HEX M10X1.5 8 ZOD NYL

7547442

$3.99

8

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

8

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

8

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

9

SCREW-M8X1.25X30 8.8 TR/TX ZOD

7518953

$1.59

10

WASHER-.325X1.20X.090,FL-Y

7556175

$5.99

10

WASHER-.325X1.20X.090,FL-Y

7556175

$5.99

11

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

12

SCR-HXFL-M10X1.25X60 10.9 ZOD

7519306

$5.59

13

WSHR-10.5X30X2.5 ZPB

7556973

$3.99
