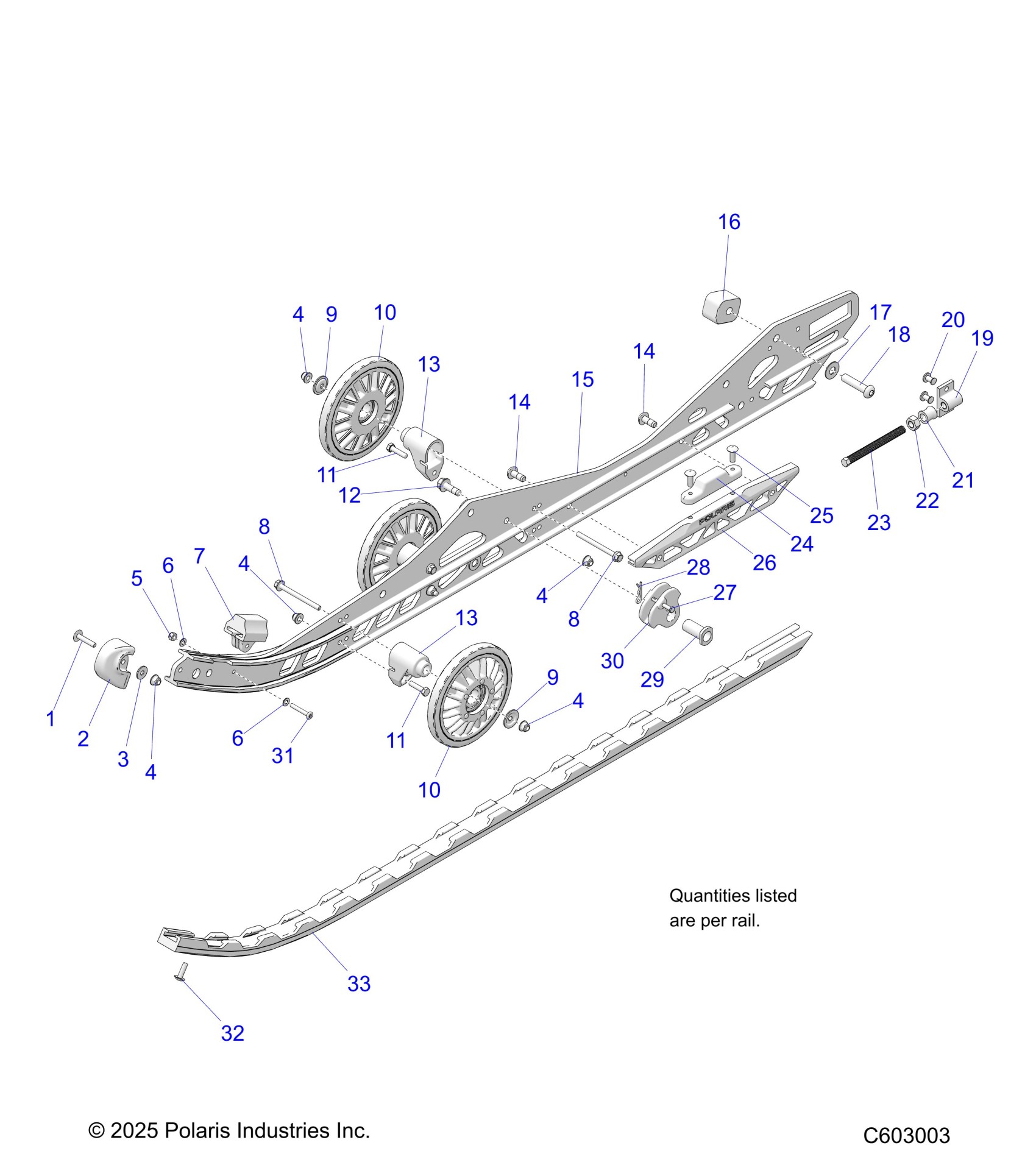

Polaris PATRIOT 9R INDY XCR 129 (R01) - S26TKL9BS SUSPENSION, RAIL BEAM LH/RH - S26TKL9BS (C603003) Diagram

#

Description
Price

1

SCR-TXTH-M6X1.0X30,8.8,ZPB

7520133

$3.19

2

CAP, RAIL TIP

5452441

$16.99

3

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

4

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

4

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

4

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

4

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

4

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

5

NUT-NYLOC 10-24 Y

7541925

$1.49

6

Washer, Flat

7555783

$3.99

6

Washer, Flat

7555783

$3.99

7

BUMPER, JOUNCE, FRONT

5522253

$8.89

8

SCR-HXFL-M6X1.0X70 10.9 ZFB

7521331-70

$1.49

8

SCR-HXFL-M6X1.0X70 10.9 ZFB

7521331-70

$1.49

9

WSHR-M6 OFFSET 2.01 ZOD

7556799

$3.19

9

WSHR-M6 OFFSET 2.01 ZOD

7556799

$3.19

10

RING-RETAINING [1 PER WHEEL]

7710444

$8.79

10

BEARING [1 PER WHEEL]

3515142

$19.99

10

ASM-WHEEL SPOKED 5.62

1590632

$38.39

10

RING-RETAINING [1 PER WHEEL]

7710444

$8.79

10

BEARING [1 PER WHEEL]

3515142

$19.99

10

ASM-WHEEL SPOKED 5.62

1590632

$38.39

11

SCR-HH-M6X1.0X25 8.8 ZPB

7517510

$4.79

11

SCR-HH-M6X1.0X25 8.8 ZPB

7517510

$4.79

12

SCR-M8X1.25X25 8.8TXTR ZOD P80

7518906

$3.19

13

BLOCK-WHEEL MOUNT

5633278

$29.99

13

BLOCK-WHEEL MOUNT

5633278

$29.99

14

SCR-TXTH-M8X1.25X20 8.8 ZB3 P3

7519997

$3.99

14

SCR-TXTH-M8X1.25X20 8.8 ZB3 P3

7519997

$3.99

15

ASM-RAIL 129 SVC LH BLK [INCL. 19-21,35] [COLOR OPTION]

1545243-067

$510.89

15

ASM-RAIL 129 SVC RH BLK [INCL. 19-21,35] [COLOR OPTION]

1545244-067

$510.89

15

ASM-RAIL 129 SVC LH INDY RED [INCL. 19-21,35] [COLOR OPTION]

1545243-293

$510.89

15

ASM-RAIL 129 SVC RH INDY RED [INCL. 19-21,35] [COLOR OPTION]

1545244-293

$510.89

16

BUMPER-PIVOT ALUM

5142728

$39.99

17

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

18

SCR-TXBH-M10X1.5X45 8.8ZOD P30

7520323

$5.59

19

BLOCK-IDLER BOLT ADJ METRIC

5136570

$34.99

20

RIVET-FLAT HD-1/4 X .575

7621501

$2.39

21

SPACER-IDLER ADJ ALUM

5141837

$8.99

22

NUT-HEX-M10X1.5 8 ZOD

7547707

$4.99

23

SCR-HX-M10X1.5X100,8.8,ZOD

7520083

$12.79

24

BUMPER-FRT TORQ ARM, XTRA 12

5432166

$5.59

25

SCR-1/4-20X3/4,TR/TX/TAP-Y

7515199

$1.49

26

PLATE-RAIL REINF CC BLK ANDZD

5144096

$99.99

27

PIN-HITCH, 3/32-Y

7661644

$2.39

28

PIN-CLEVIS 3/16X1 1/4

7661123

$3.99

29

SHAFT-SPRING ROLLER

5136687

$10.51

30

GUIDE-SPRING SQUARE

5434334

$28.32

31

SCR-10-24X1.25TFM PN TRX TRI-Y

7512025

$4.79

32

SCR-M6X1.0X20 TR/TX/TAP ZOD

7518976

$3.19

33

HI-FAX-129 CC BLK

5522321-070

$56.65
