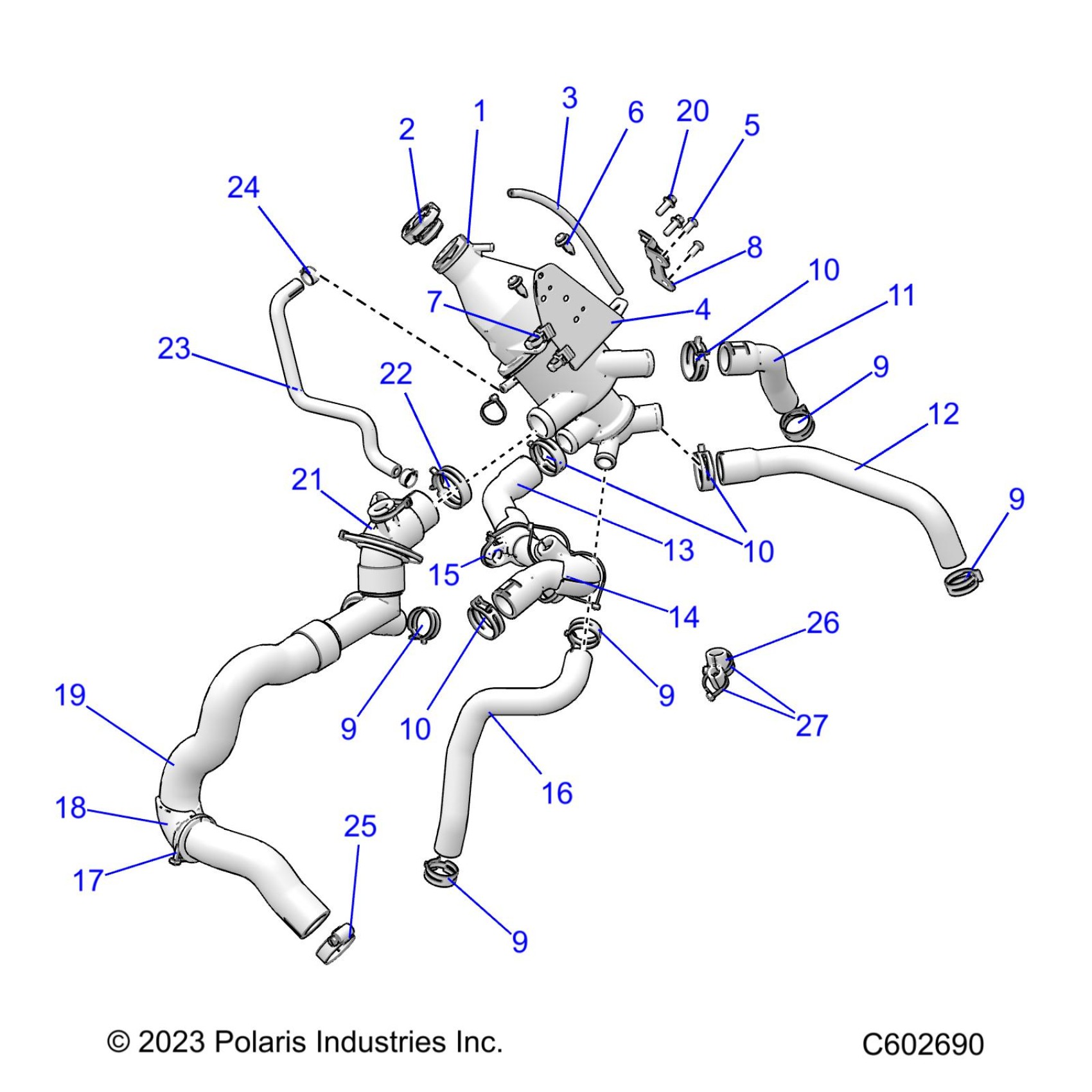

Polaris PATRIOT 9R INDY XCR 129 (R01) - S26TKL9BS ENGINE, COOLING SYSTEM - S26TKL9BS(C602690) Diagram

CLAMP-HOSE, 1.750-SS

7080560

$11.19

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

SPRINGBAND-CLAMP 32/12,BROWN

7080843

$3.99

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

CLAMP-HOSE, 9/16, SPRING-B

7080534

$1.59

SCREW-TXBH-M6X1.0X12 8.8 ZPB D20

7519063

$3.99

SPRINGBAND-CLAMP 26/12

7081692

$4.03

SCREW-M6X1.0X16.0MM HEX-FL-Y/D

7518637

$3.99

CAP-PRESSURE

1240300

$40.46

CLIP- EDGE, 1-3MM THICKNESS

7082427

$5.59

SPRINGBAND-CLAMP 38/12,BLK

7082025

$5.59

ASM-BRKT COOLANT BOTTLE TP

1024376

$13.75

HOSE-BYPASS

5416321

$24.27

SUPPORT-STATOR WIRE

5416551

$11.32

SUPPORT-THROTTLE CABLE/HOSE

5416538

$13.75

ASM-HOSE BOTTLE/ENGINE

1263300

$117.59

SUPPORT-HOSE

5416866

$28.32

SUPPORT-HOSE/ELECTRICAL WIRES

5416536

$24.27

HOSE-FRONT COOLER FEED

5416763

$24.27

HOSE-TUNNEL/BOTTLE

5416326

$13.75

HOSE-BOTTLE/FRONT COOLER

5416325

$24.27

HOSE-TBODY/COOLANT BOTTLE

5417221

$13.75

BRKT-CONNECTOR PLACEMENT TP

5456998

$13.75

WELD-COOLANT BOTTLE DOUBLE

1244767

$104.99
