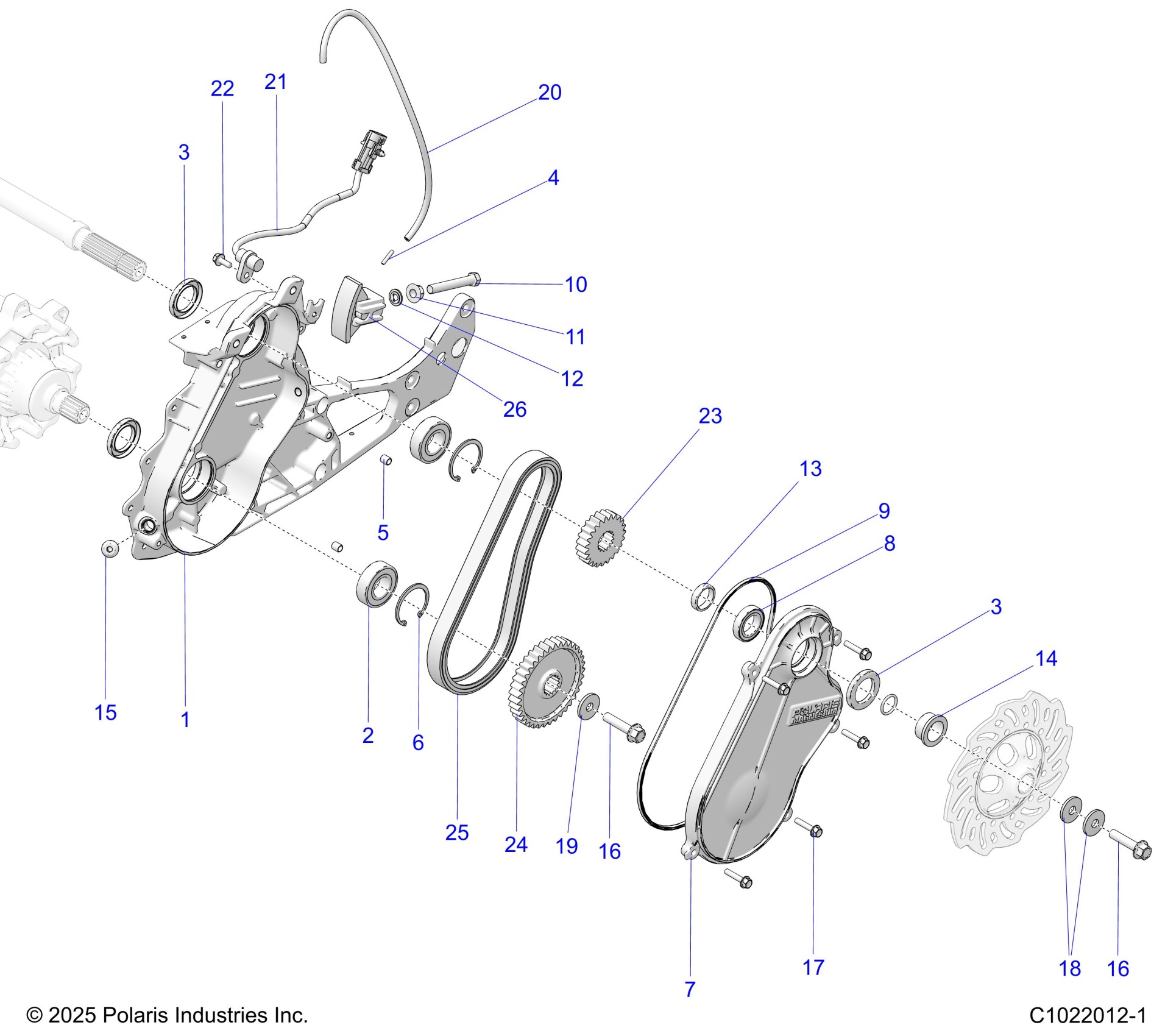

Polaris PATRIOT 9R INDY XCR 129 (R01) - S26TKL9BS DRIVE TRAIN, CHAINCASE - S26TKL9BS (C1022012-1) Diagram

#

Description
Price

1

ASM-CHAINCASE INTERMD [INCLUDES 2-6] [ADHESIVE REQUIRED]

1333119

$289.99

2

BEARING-BALL 6205 LLB

3515910

$15.99

3

SEAL-OIL

3610030

$20.22

3

SEAL-OIL

3610030

$20.22

4

TUBE-VENT .155DIAX.75L

5334764

$28.32

5

DWL-HOL,M9X10

7663007

$3.99

6

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

7

ASM-CHAINCASE COVER [INCLUDES QTY 1 OF 3, 8 & 9]

1337284

$164.59

8

BEARING-BALL 6905 2RS

3514643

$29.99

9

GASKET, CHAINCASE COVER

5814028

$28.32

10

SCR-HH-M10X1.5X70 8.8 ZODv

7519938

$19.99

11

NUT-HXFL-M10X1.50 10 ZPC

7547017

$5.59

12

WASHER, THREAD SEAL

7556340

$3.19

13

SLEEVE, CHAINCASE

5137587

$7.99

14

SLEEVE, CHAMFERLESS

5140953

$27.99

15

PLUG, MAGNETIC

7052674

$23.79

16

SCR-HXFL-M10X1.25X45 ZOD P30

7520187

$3.99

16

SCR-HXFL-M10X1.25X45 ZOD P30

7520187

$3.99

17

SCR-M6X1.0X30 8.8 HXFL ZTB P30

7521293

$2.39

18

WASHER-SPRING.406X1.25X.125ZOD

7556490

$4.79

19

WSHR-10.5X31.8X3.43 ZOD HRD

7556800

$7.19

20

HOSE-1/4" OD X 1/8" ID,41CM

8450246-41

$15.99

21

SENSOR-SPEED PICKUP

4080773

$87.99

22

SCR-HXFL-M6X1.0X16 8.8 ZYL NYL

7519236

$3.19

23

SPROCKET-23T,3/4W,15 SPL,HV,PM TRACK-15X137" 1.25 ICE RIPPER & TRACK-137X1.352,COBRA

3221099

$54.99

23

SPROCKET-22T,3/4W,15 SPL,HV,PM TRACK-15X137" 1.6 COBRA

3221098

$49.99

24

SPROCKET-37T,3/4W,HYVO,FRGD TRACK-15X137" 1.25 ICE RIPPER & TRACK-137X1.352,COBRA

3225071

$36.41

24

SPROCKET-41T,3/4W,HYVO,FRGD TRACK-15X137" 1.6 COBRA

3225068

$40.46

25

CHAIN-HYVO 23-149,68P,3/4W TRACK-15X137" 1.25 ICE RIPPER & TRACK-137X1.352,COBRA

3221112

$124.99

25

CHAIN-HYVO,23-149,70P,34W TRACK-15X137" 1.6 COBRA

3221115

$164.99

26

ASM-TIGHTENER,CHAIN,VESPEL

1332427

$79.99
