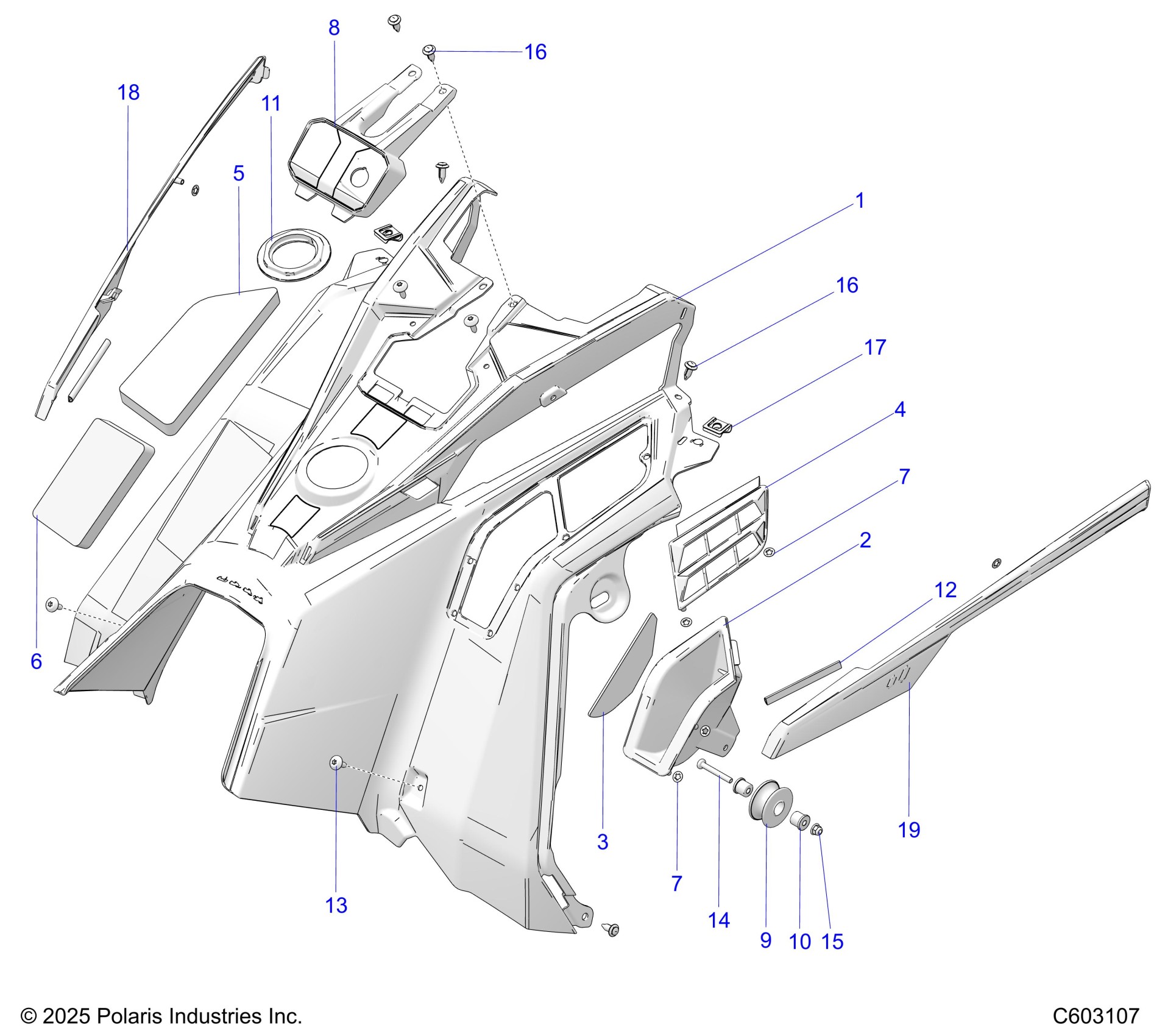

Polaris PATRIOT 9R INDY XCR 129 (R01) - S26TKL9BS BODY, CONSOLE - S26TKL9BS (C603107) Diagram

CONSOLE-TP/CO

5456414

$116.17

ASM-CONSOLE [INCLUDES 1-7 & WARNING DECAL]

2637700

$164.99

ASM-POCKET RECOIL [INCLUDES 3]

2638092

$32.37

FOAM-RECOIL POCKET

5815248

$5.99

VENT-CONSOLE

5457103

$12.94

FOAM-CONSOLE UPPER LH

5815022

$7.27

FOAM-CONSOLE LOWER LH

5815023

$4.84

RETAINER-BOLT,1/4-20

7670154

$1.49

RETAINER-BOLT,1/4-20

7670154

$1.49

PANEL-CONSOLE SWTCH RCA/TETHER

5459041

$52.60

ROLLER, RECOIL

5435390

$16.44

BUSHING-ROLLER M6

5143683

$3.19

Nut, Filler Neck

5435156

$4.79

SEAL-BULB, .375, 350CM [BULK SVC LENGTH]

5521697-350

$40.46

SCREW-TXTH-M6X1.0X20 T40 ZPB

7519112

$3.19

SCR-TXPH-M6X1.0X45 8.8 ZBLK

7520466

$5.59

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.99

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

CLIP-1/4 TURN 6MM

7710808

$5.99

TRIM-CONSOLE LH IN-MLD CRSRBLK [BLACK]

5456441-266

$36.41

TRIM-CONSOLE LH MATTE TITNM [TITANIUM]

5457070-632

$59.99

TRIM-CONSOLE RH IN-MLD CRSRBLK [BLACK]

5456442-266

$36.41

TRIM-CONSOLE RH MATTE TITNM [TITANIUM]

5457071-632

$59.99
