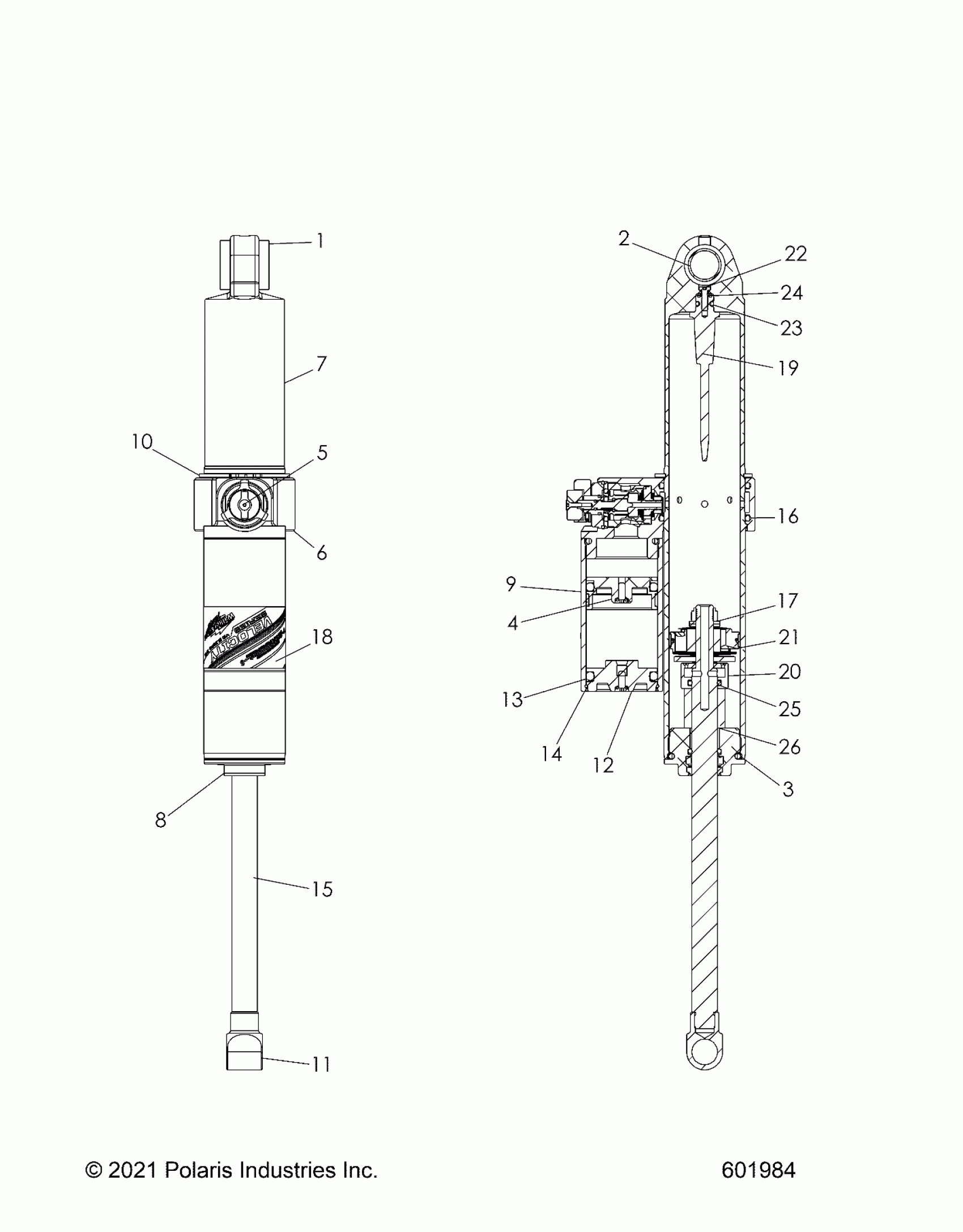

Polaris PATRIOT 9R INDY XCR 128 ALL OPTIONS (R02) - S25TKL9BS SUSPENSION, SHOCK, REAR TRACK - S25TKL9BS (601984) Diagram

Description

Price

SHOCK-R/T W/E 2" VEL HI/LO

7045772

$654.99

BUSHING, URETHANE

1800036

Unavailable

SLEEVE- 1.150L

1800405

$28.32

O-RING BODY LOOP

1800030

$2.02

ASM-PISTON, IFP 1.750

1801186

$64.99

ADJUSTER-HS-LS W/KNOB

1801059

$459.99

BRIDGE, 1.75" ANO CLR

1801008

$314.99

BODY

-------

Unavailable

ASM-SEAL HEAD 2.0

1801083

$141.65

BODY-RESERVOIR 2.0" 3.75L

1800999

$119.99

RING-RETAINING 2.06OD

1801003

$20.22

Eyelet, Shaft

1800096

$101.17

END CAP, RESERVOIR, 2"

1801006

$114.99

O-RING, 2-324

1800184

$5.65

RETAINING RING WIRE 0.0625 X 1.750ID

1800795

$7.27

SHAFT-.625 DIA

1801212

$348.56

O-RING, 2-226 1600018

1800863

$4.79

NUT-FLEX-TOP LOCK 7/16

1801000

$7.99

DECAL

-------

Unavailable

NEEDLE-1PC PRESS IN 1620008

1800861

$59.99

VALVE-CHECK

1801213

$130.70

DECAL

1801214

Unavailable

#8-32 X .500 LOW HEAD SCREW

1800843

$4.79

O-RING, 2-108 1600026

1800864

$4.79

0-RING 5MM ID X 2MM 1600073

1801031

$1.59

O-RING, SHAFT, SEAL HEAD

1800037

$1.60

SPACER-.965L

1801215

$48.56
