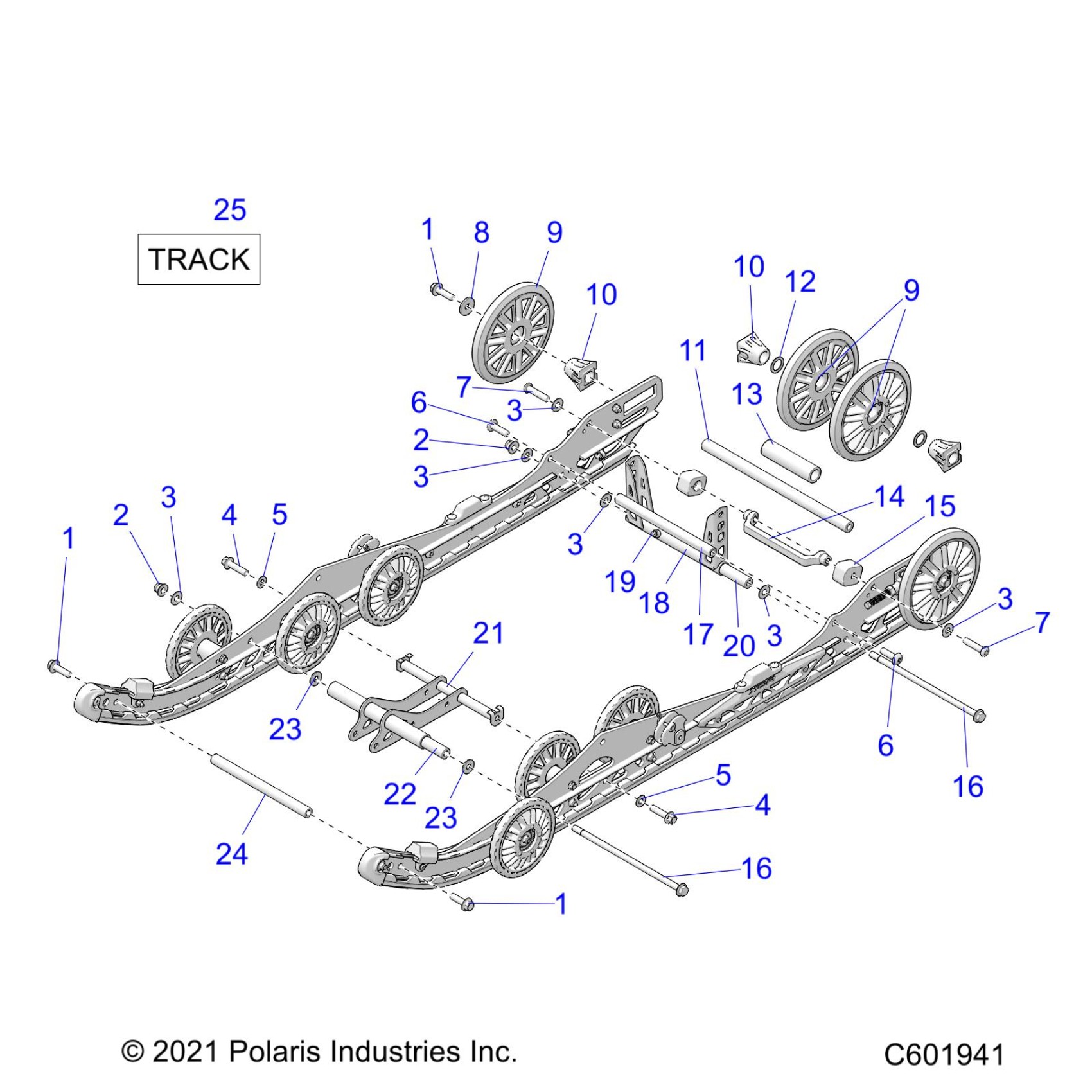

Polaris PATRIOT 9R INDY XCR 128 ALL OPTIONS (R02) - S25TKL9BS SUSPENSION, REAR - S24TKL9BS (C601941) Diagram

#

Description
Price

1

SCR-M10X1.5X35 HXFL ZOD P30

7518957

$3.19

1

SCR-M10X1.5X35 HXFL ZOD P30

7518957

$3.19

1

SCR-M10X1.5X35 HXFL ZOD P30

7518957

$3.19

2

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

2

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

3

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

3

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

3

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

3

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

3

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

3

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

4

SCR-HXFL-M10X1.5X40 10.9ZODP80

7519216

$4.79

4

SCR-HXFL-M10X1.5X40 10.9ZODP80

7519216

$4.79

5

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

5

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

6

SCR-M10X1.5X35 TX/TRUSS ZODP30

7520369

$6.39

6

SCR-M10X1.5X35 TX/TRUSS ZODP30

7520369

$6.39

7

SCR-TXBH-M10X1.5X45 8.8ZOD P30

7520323

$5.59

7

SCR-TXBH-M10X1.5X45 8.8ZOD P30

7520323

$5.59

8

WASHER-SPRING.406X1.25X.125ZOD

7556490

$4.79

9

ASM-WHEEL,SPOKE,7.25,6004

1590459

$47.99

9

BEARING

3514384

$19.84

9

RING-RETAINING

7710444

$8.79

9

ASM-WHEEL,SPOKE,7.25,6004

1590459

$47.99

9

BEARING

3514384

$19.84

9

RING-RETAINING

7710444

$8.79

10

SPACER-IDLER

5432535

$11.99

10

SPACER-IDLER

5432535

$11.99

11

SHAFT-IDLER M10X1.5THDX336 LG

5136745

$38.71

12

BUSHING

7555918

$1.59

13

SPACER-IDLER, CENTER

5333283

$19.99

14

BRACE-COUPLING XCR

5143854

$59.99

15

BUMPER-PIVOT ALUM

5142728

$39.99

16

SCR-HXFL-M10X1.25X250 10.9 ZOD

7519327

$19.99

16

SCR-HXFL-M10X1.25X250 10.9 ZOD

7519327

$19.99

17

SHAFT-CROSS MACH

5139172

$29.03

18

WELD-REAR PIVOT ARM ECOAT

1543905-329

$121.02

19

FITTING-LUBRICATION 1/4-28

7080424

$4.79

20

SHAFT, CROSS

5137418

$32.37

21

H-BRACKET ECOAT

1544014-329

$106.49

22

SHAFT-H-BRKT CC AL

5140492

$43.56

23

WSHR-M10.5X25X2.4 ZPC

7556559

$3.19

23

WSHR-M10.5X25X2.4 ZPC

7556559

$3.19

24

SHAFT-LIMITER METRIC HD

5143149

$39.99

25

TRACK-15X128" 1.25 ICE RIP XT 1.25" TRACK OPTION

5417029

$801.99

25

TRACK-15X128" 1.352COBRA 2.52P 1.352" TRACK OPTION

5416296

$721.99

25

TRACK-15X128" 1.6 COBRA 1.6" TRACK OPTION

5417768

$926.99

25

CLIP-TRACK,LNG GUIDE

5251274

Unavailable

25

CLIP-TRACK, FLAT

5251273

Unavailable
