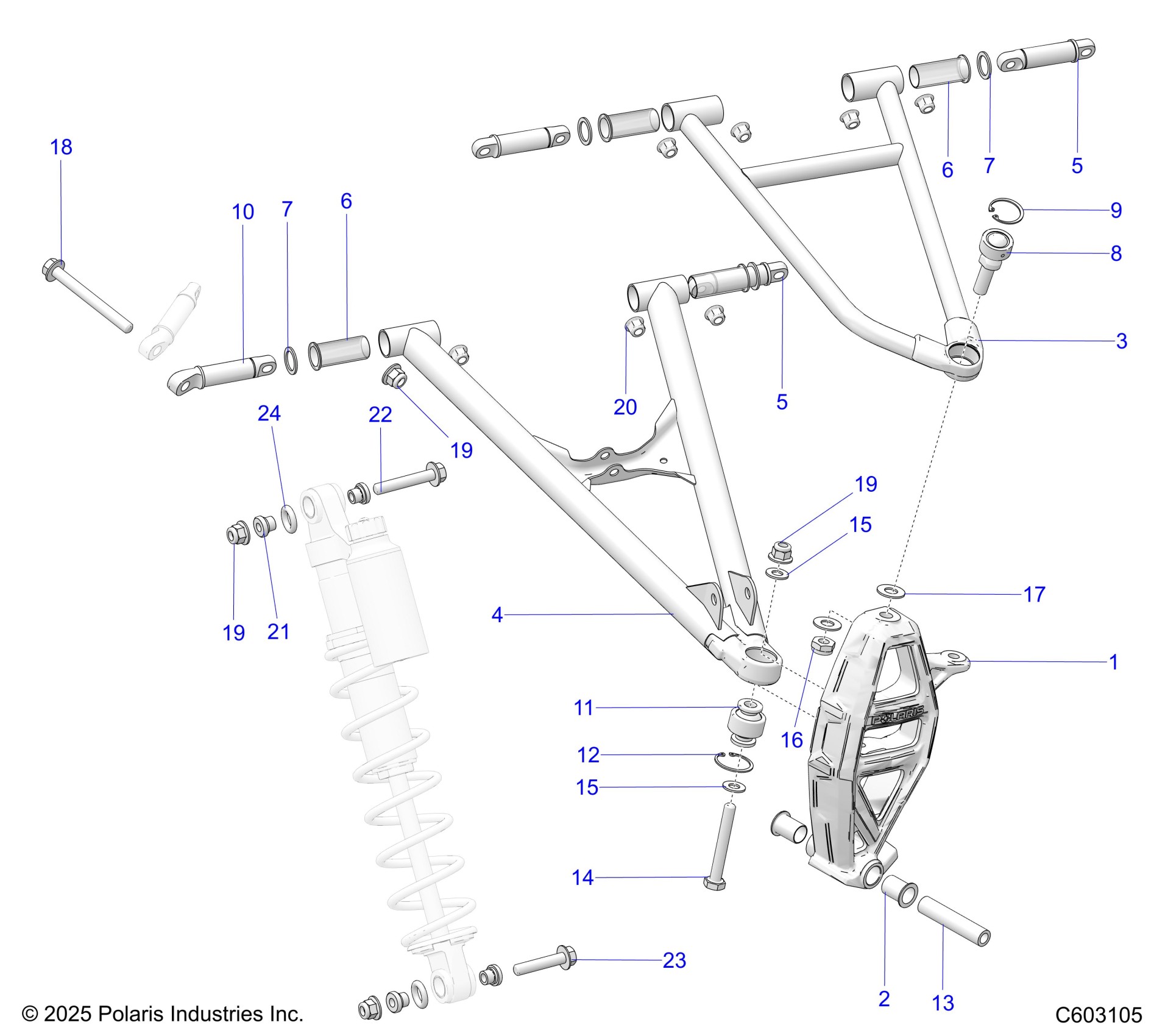

Polaris PATRIOT 9R INDY XCR 128 ALL OPTIONS (R02) - S25TKL9BS SUSPENSION, CONTROL ARMS and SPINDLE - S25TKL9BS (C603105) Diagram

#

Description
Price

1

ASM-SPINDLE LH BLK [INCLUDES QTY 2 OF 2] [BLACK]

1824939-067

$314.99

1

ASM-SPINDLE RH BLK [INCLUDES QTY 2 OF 2] [BLACK]

1824940-067

$314.99

1

ASM-SPINDLE LH INDY RED [INCLUDES QTY 2 OF 2] [INDY RED]

1824939-293

$264.99

1

ASM-SPINDLE RH INDY RED [INCLUDES QTY 2 OF 2] [INDY RED]

1824940-293

$264.99

1

ASM-SPINDLE LH LIFTED LIME [INCLUDES QTY 2 OF 2] [LIFTED LIME]

1824939-801

$254.99

1

ASM-SPINDLE RH LIFTED LIME [INCLUDES QTY 2 OF 2] [LIFTED LIME]

1824940-801

$254.99

2

BUSHING-SKI PIVOT

5438460

$15.99

3

ASM-UCA MOLY LH BLK [INCLUDES 5-9]

1824756-067

$239.99

3

ASM-UCA MOLY RH BLK [INCLUDES 5-9]

1824757-067

$239.99

3

WELD-UCA MOLY LH BLK [UCA ONLY]

1824171-067

Unavailable

3

WELD-UCA MOLY RH BLK [UCA ONLY]

1824172-067

$189.99

4

ASM-LCA LH BLK [INCLUDES 5-7 & 10-12]

1824758-067

$239.99

4

ASM-LCA RH BLK [INCLUDES 5-7 & 10-12]

1824759-067

$239.99

4

WELD-LCA LH BLK [LCA ONLY]

1824169-067

Unavailable

4

WELD-LCA RH BLK [LCA ONLY]

1824170-067

$189.99

5

SHAFT-PIVOT GROOVED

5140556

$34.99

5

SHAFT-PIVOT GROOVED

5140556

$34.99

6

BUSHING-PIVOT

5450297

$3.19

6

BUSHING-PIVOT

5450297

$3.19

7

WSHR-18.2X25.X1.6 THICK ZOD

7556758

$3.19

7

WSHR-18.2X25.X1.6 THICK ZOD

7556758

$3.19

8

BEARING-SPHERICAL UCA 31MM

7061179

$33.32

9

RING-RET INT 1.125"

7710642

$2.39

10

SHAFT-PIVOT LCA FRT GROOVED

5140557

$34.99

11

KIT-BEARING SPHERICAL LWR 10MM

2204229

$31.99

12

RING-RETAINING,1.25 ID HSNG

7710539

$2.39

13

BUSHING-15.88X10.13X76.20

5136910

$7.99

14

SCR-M10X1.5X75 10.9 HCS ZOD

7519015

$5.59

15

WSHR-FL .406X.812X.065-Y

7555806

$1.49

15

WSHR-FL .406X.812X.065-Y

7555806

$1.49

16

NUT-HEX-M12X1.5 8 ZOD NYL

7547464

$3.19

17

WASHER-M12X25X1.6 THRU HARD ZOD

7556994

$3.19

18

SCR-M10X1.5X95 HX FLG 10.9 ZOD

7518917

$4.79

19

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$3.99

19

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$3.99

19

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$3.99

20

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

21

SPACER-10.2IDX12.62OD

5136530

$4.79

22

SCR-M10X1.5X60-8.8 HFS ZOD

7518941

$3.99

23

SCR-M10X1.5X50 8.8 HX/FL ZOD

7518971

$6.39

24

O-RING,0.600IDX.210

5412290

$2.02
