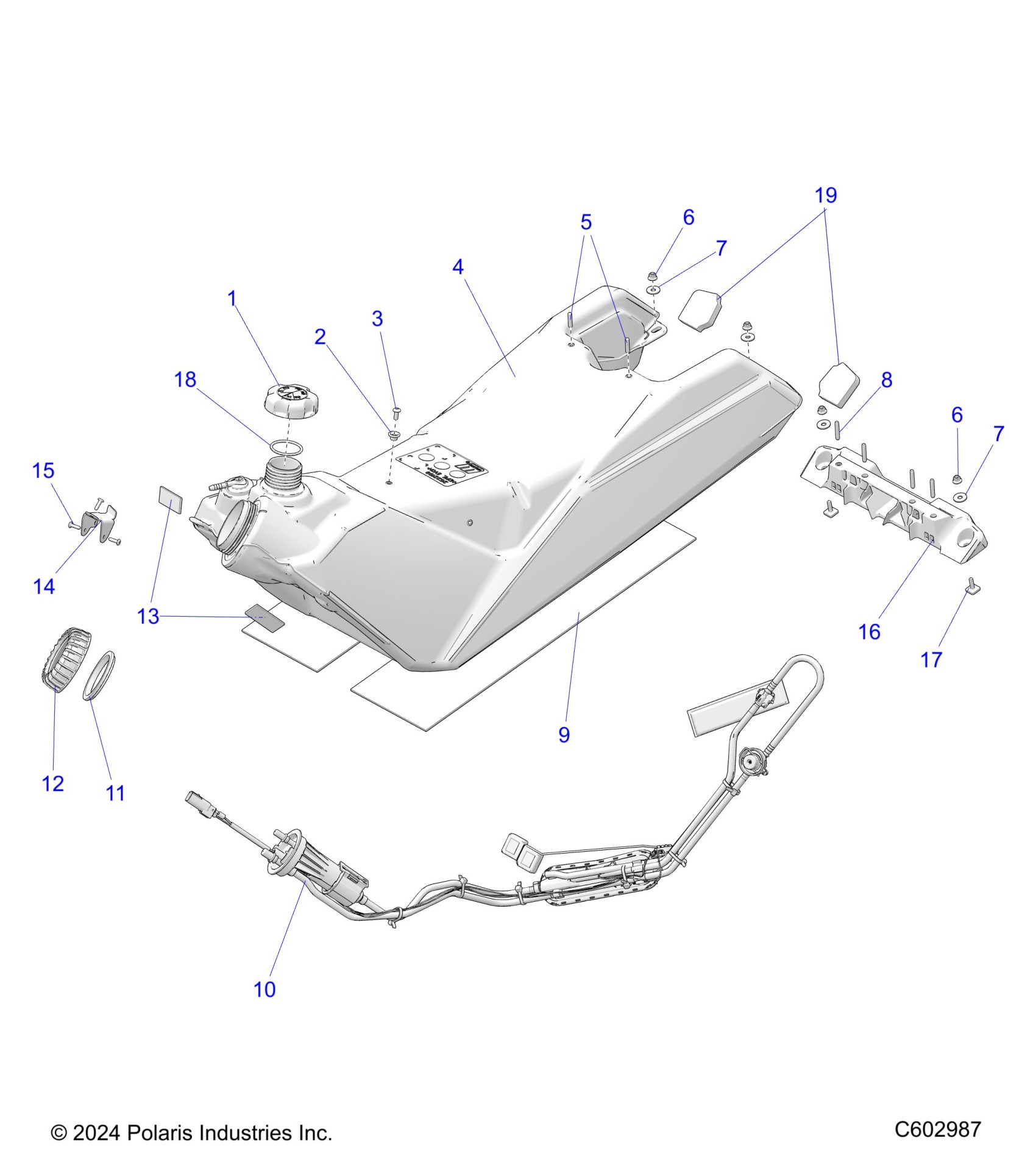

Polaris PATRIOT 9R INDY XCR 128 ALL OPTIONS (R02) - S25TKL9BS FUEL SYSTEM, FUEL TANK ASM. - S25TKL9BS (C602987) Diagram

#

Description
Price

1

CAP-GAS TANK

5450389

$20.22

2

MOUNT-SEAT FRONT

5451185

$4.03

3

SCR-TXPH-M6X1.0X15 GR5 ZOD NYL

7518656

$3.99

4

ASM-FUEL TANK MACH

2522558

$529.99

5

STUD-M6X1.0X25 8.8 ZOD

7520428

$10.39

6

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

6

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

7

WASHER-.28 X .81 X .06, ST-M

7555935

$2.39

7

WASHER-.28 X .81 X .06, ST-M

7555935

$2.39

8

STUD-M6X1.0X32 8.8 ZF

7527828

$7.19

9

PAD-GAS TANK

5815007

$20.22

10

K-FUEL PUMP 850/9R TP/CO [INCL. PUMP,FILTER,GASKET,AND INSTRUCTIONS]

2212446

$739.99

10

K-FUEL FILTER/GASKET

2212451

$43.99

11

GASKET-PFA

5415105

$64.99

12

NUT-PFA MACH

5145716

$27.99

13

PAD-RUBBER 1.0 X 2.50 X.13

5813729

$28.32

14

BRKT-FUEL TANK

5269306

$11.32

15

RIVET-3/16-.090-.290

7661637

$1.49

16

ASM-FUEL TANK SUPPORT [INCL. STUDS]

1026480

$99.99

17

SCREW-SPL M6X1.0X20 8.8 ZOD

7520464

$3.99

18

O-Ring

5411174

$1.60

19

FOAM-TANK MOUNT

5815196

$4.84
