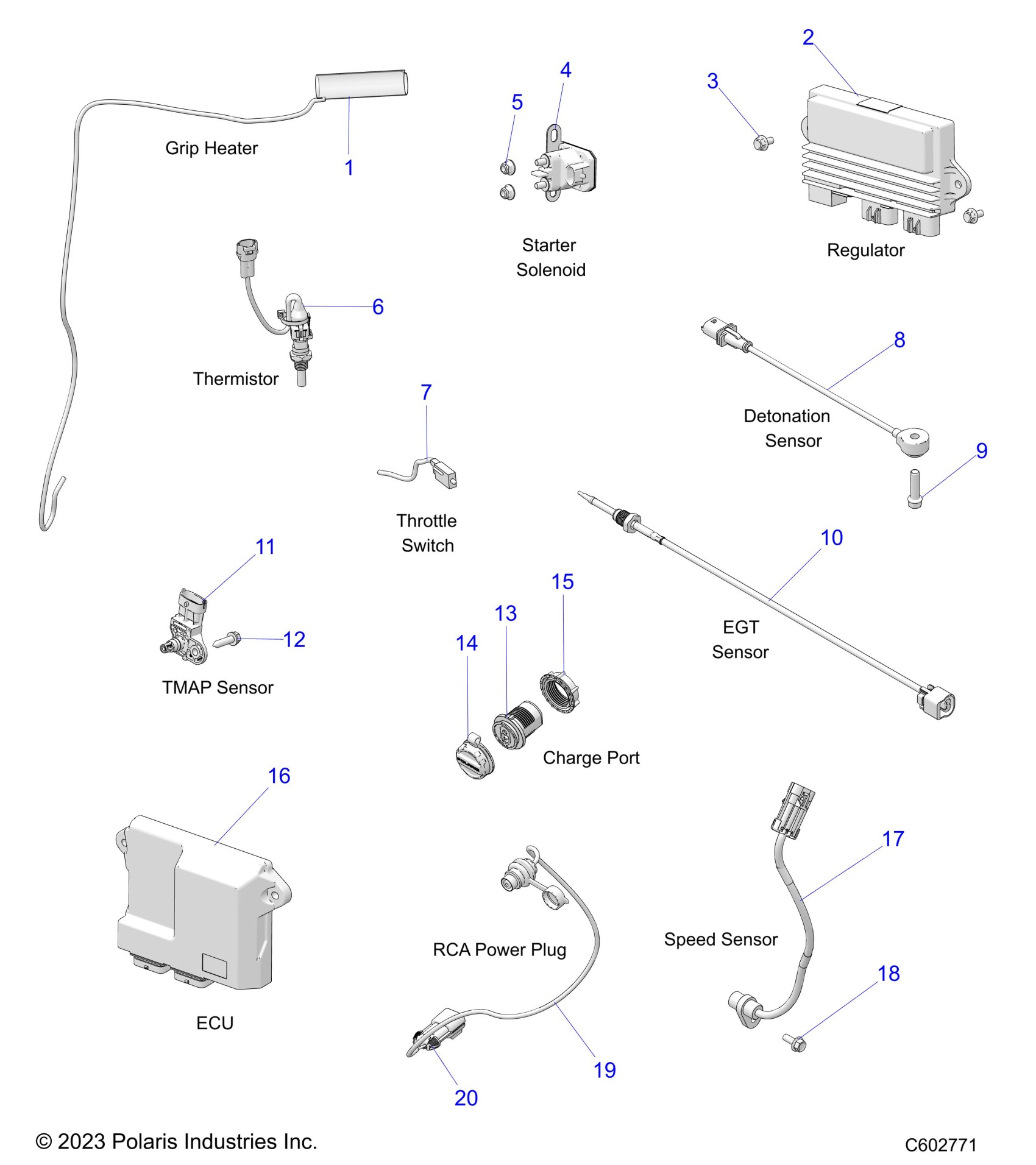

Polaris PATRIOT 9R INDY XCR 128 ALL OPTIONS (R02) - S25TKL9BS ELECTRICAL, COMPONENTS - S25TKL9BS (C602771) Diagram

HEATER-GRIP PWM AL INS LH

2415119

$64.99

HEATER-GRIP PWM AL INS RH

2415120

$64.99

REGULATOR-UNPROGRAMMED PBR ICE

4017985

$619.99

SCREW-HXFLGHD,M6X12

7517886

$1.59

SOLENOID-STARTER,SEALED

4014655

$49.99

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

ASM-THERMISTER/JUMPER

2415756

$87.99

SWITCH-THROTTLE

4019202

$72.60

SENSOR-DETONATION BOSCH

2410369

$76.89

SCREW-M8X1.25X30,HX/FL-YD

7517262

$5.59

SENSOR-EGT,SNO

4080929

$259.99

SENSOR-TMAP DSS3-TF

2411528

$93.08

SCR-#14X1.0 LG,HI/LO/TAPER-M

7512098

$1.59

ASM-CHARGE PORT,BASE [INCLUDES 13-15] [FOOTWELL LOCATION]

2415295

$40.46

PLUG-HARNESS CHARGE PORT

2415198

Unavailable

CAP-CHARGE PORT

5417215

$12.79

NUT-CHARGE PORT

5456622

Unavailable

ECU-BASE,KOK,NA DEALER INSTALL REQUIRED

4080749

$939.99

SENSOR-SPEED PICKUP

4080773

$87.99

SCR-HXFL-M6X1.0X16 8.8 ZYL NYL

7519236

$3.19

ASM-RCA PWR PLUG SEALED [CONSOLE LOCATION]

2414662

Unavailable

PLUG-LOCK TPA

5456007

$3.99
