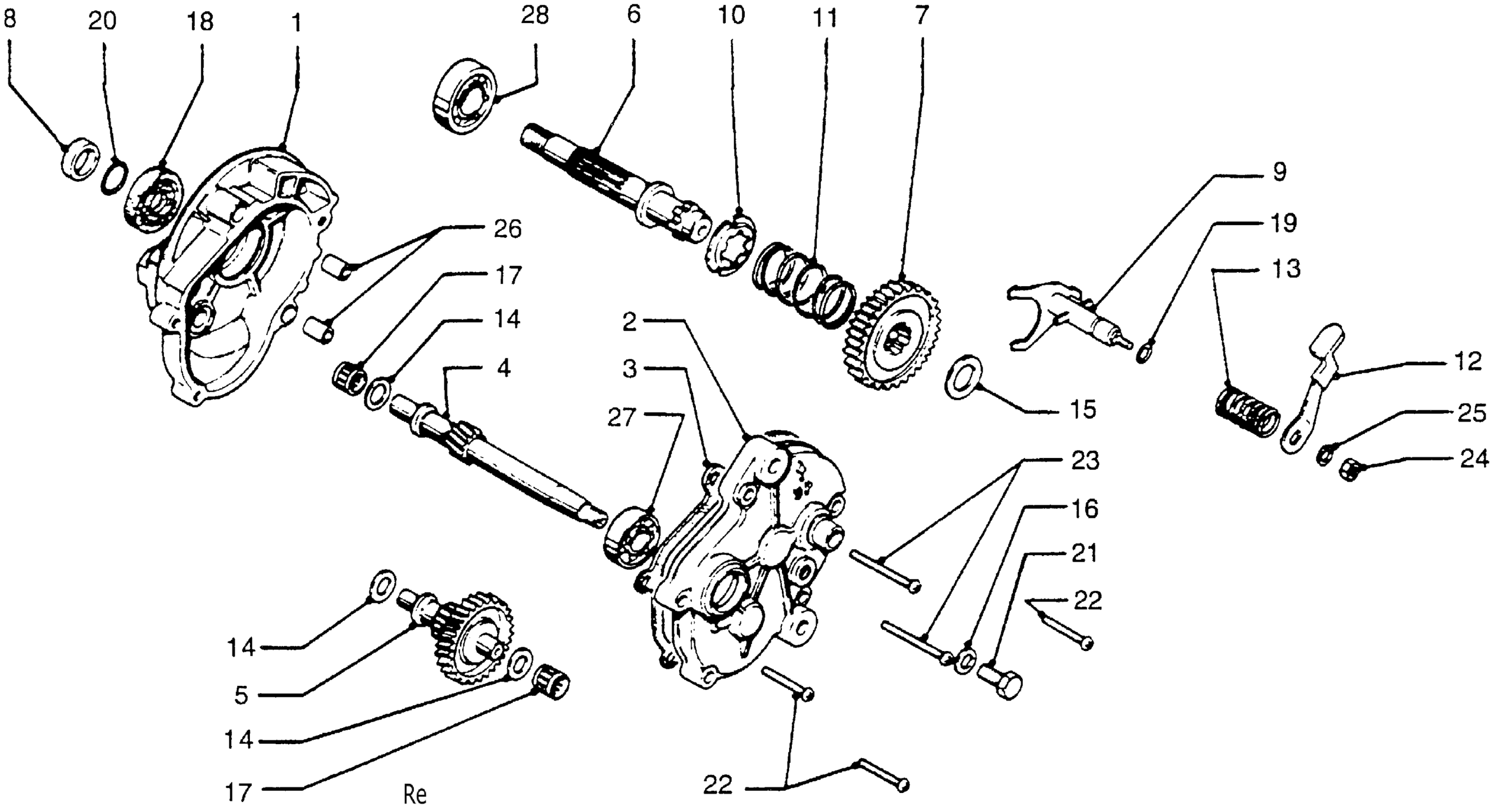

Honda PA50IIA (83) MOPED-30 MPH, BE, VIN# YC1AB090-DB300001 TRANSMISSION Diagram

#

Description
Price

1

CASE, TRANSMISSION (NOT AVAILABLE)

21210-148-010

Unavailable

2

COVER, IGNITION (NOT AVAILABLE)

21300-148-010

Unavailable

3

GASKET, TRANS CVR This part replaces 21395-148-000.

21395-148-306

Unavailable

3

GASKET, TRANS CVR This part replaces 21395-148-010.

21395-148-306

Unavailable

4

SHAFT, DRIVE (NOT AVAILABLE)

23411-148-701

Unavailable

5

COUNTERSHAFT (NOT AVAILABLE)

23420-148-000

Unavailable

6

SHAFT, FINAL (NOT AVAILABLE)

23431-148-000

Unavailable

7

GEAR, FINAL (NOT AVAILABLE)

23432-148-000

Unavailable

8

COLLAR, FINAL SHAFT (NOT AVAILABLE)

23433-155-010

Unavailable

9

SHAFT, SHIFT FORK

24210-148-000

Unavailable

10

SEAT, SPRING (NOT AVAILABLE)

24221-148-000

Unavailable

11

SPRING, CHANGE (NOT AVAILABLE)

24222-148-000

Unavailable

12

LEVER, SHIFT (NOT AVAILABLE)

24411-148-000

Unavailable

13

SPRING, SHIFT LEVER

24412-148-000

Unavailable

14

WASHER, THRUST (10MM) This part replaces 90412-329-000.

90412-KZL-840

$1.49

15

WASHER, THRUST (17MM) (NOT AVAILABLE)

90451-703-000

Unavailable

16

WASHER (10.2MM)

90481-001-020

$2.92

17

BEARING, NEEDLE (1010) (TOYO)

91021-148-004

$23.20

18

OIL SEAL (24X34X5.5) (NOT AVAILABLE)

91203-148-003

Unavailable

19

O-RING (6.8X1.9) This part replaces 91301-027-000.

91306-PJ4-000

$3.01

19

O-RING (6.8X1.9)

91306-PJ4-000

$3.01

19

O-RING (6.8X1.9) This part replaces 91310-MC7-003.

91306-PJ4-000

$3.01

20

O-RING (16X1.9)

91306-329-000

$2.92

21

BOLT, HEX. (10X12) This part replaces 92000-10012-0A.

92101-10012-0A

Unavailable

21

BOLT, HEX. (10X12)

92101-10012-0A

Unavailable

22

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.49

23

SCREW, PAN (6X35) This part replaces 93500-06035.

93500-06035-0A

$1.49

23

SCREW, PAN (6X35)

93500-06035-0A

$1.49

24

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM)

94001-06200-0S

$1.49

25

WASHER, SPRING (6MM)

94111-06000

$1.49

26

PIN A, DOWEL (10X16)

94301-10160

$2.28

27

BEARING, RADIAL BALL (6201)

96100-62010-00

$8.08

28

BEARING, RADIAL BALL (6203)

96100-62033-00

$10.00
