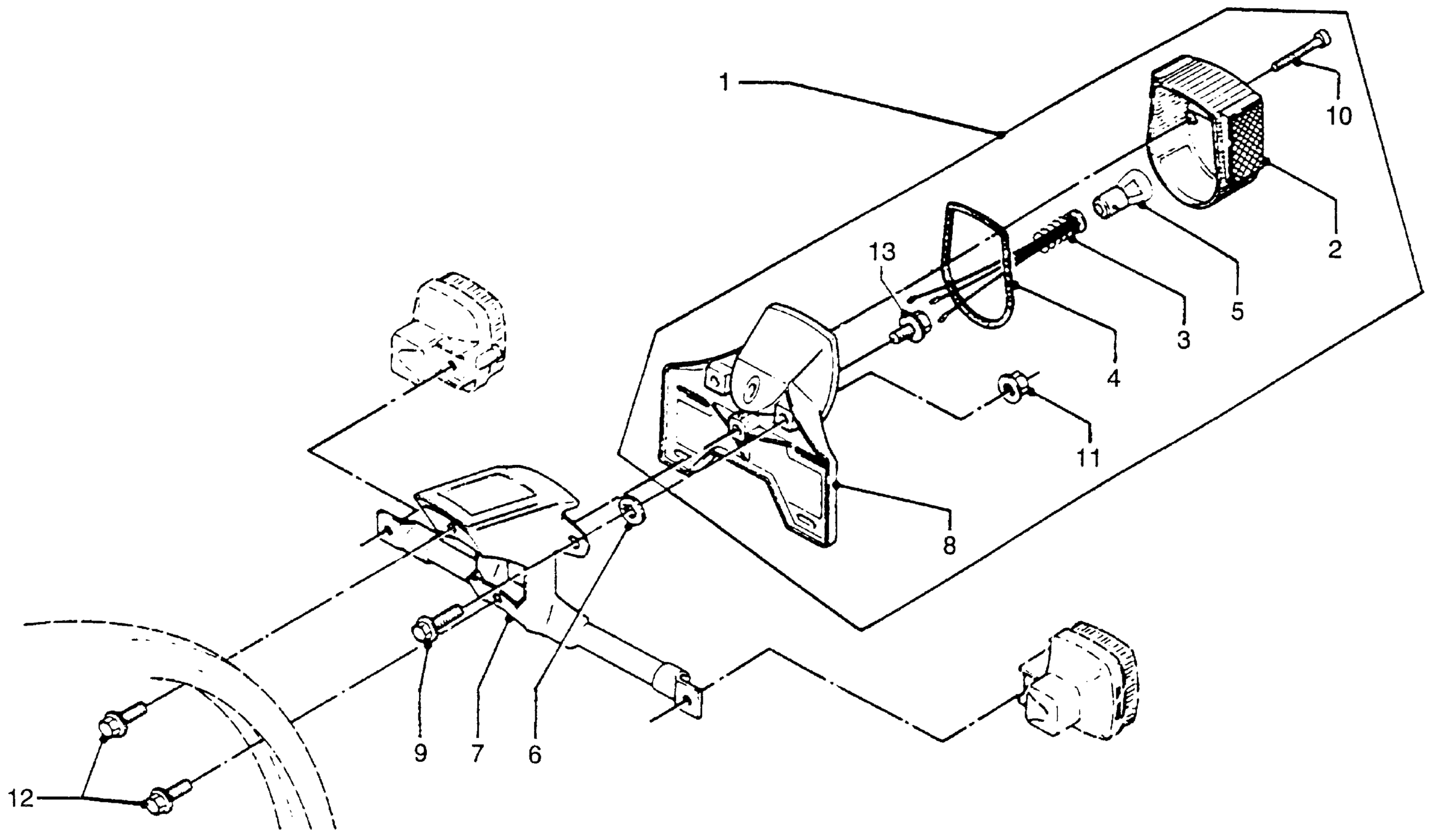

Honda PA50IIA (83) MOPED-30 MPH, BE, VIN# YC1AB090-DB300001 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT ASSY. (6V 32/3CP) (STANLEY)

33700-147-671

Unavailable

1

TAILLIGHT ASSY. (6V 32/3CP) (STANLEY) (NOT AVAILABLE) This part replaces 33700-190-671.

33700-147-671

Unavailable

2

LENS, TAILLIGHT (STANLEY)

33702-147-671

Unavailable

2

LENS, TAILLIGHT (STANLEY) This part replaces 33702-190-671.

33702-147-671

Unavailable

3

WIRE, TAILLIGHT (STANLEY)

33705-147-671

Unavailable

4

GASKET, TAILLIGHT LENS

33709-074-671

$2.08

5

BULB, STOP & TAILLIGHT (6V32/3CP) (STANLEY)

34906-329-671

$6.49

6

RUBBER B, RR. FENDER (NOT AVAILABLE)

80113-099-000

Unavailable

7

BRACKET, TAILLIGHT SET *NH1* (BLACK) (NOT AVAILABLE)

84701-GB7-670ZD

Unavailable

8

BRACKET, NUMBER PLATE (NOT AVAILABLE) This part replaces 84701-190-671.

84701-147-671

Unavailable

9

BOLT, FLANGE (6MM)

90111-162-000

$2.89

10

SCREW, TAPPING (4X60)

90147-147-671

$2.70

11

NUT, FLANGE (6MM)

94050-06080

$1.49

12

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.49

12

BOLT, FLANGE (6X10) This part replaces 95700-06010-10.

95701-06010-00

$1.49

12

BOLT, FLANGE (6X10)

95701-06010-00

$1.49

13

BOLT, FLANGE (6X16) This part replaces 95700-06016-07.

95701-06016-07

$1.55

13

BOLT, FLANGE (6X16)

95701-06016-07

$1.55
