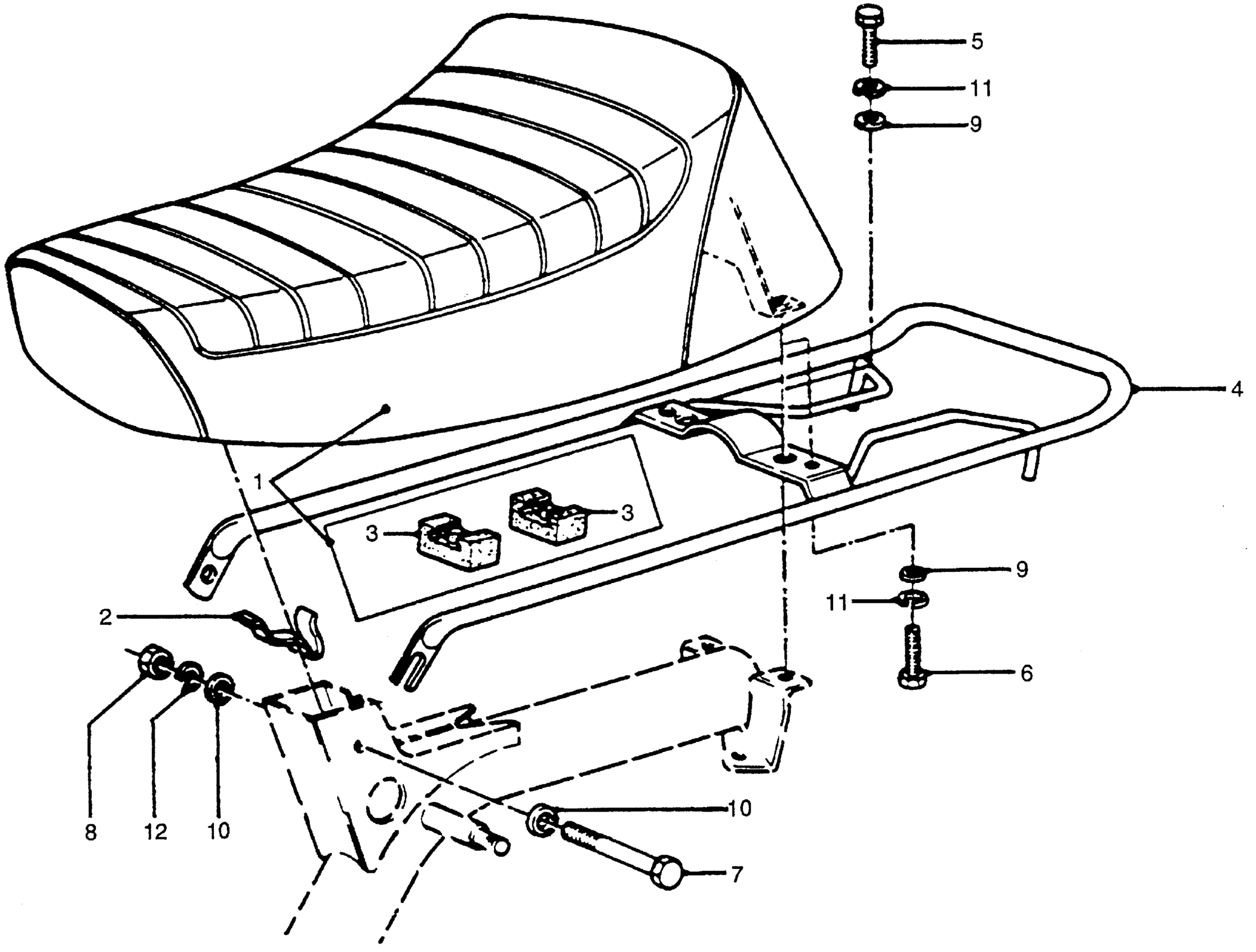

Honda PA50IIA (83) MOPED-30 MPH, BE, VIN# YC1AB090-DB300001 SEAT + REAR BUMPER Diagram

#

Description
Price

1

SEAT ASSY., DUAL

77100-148-412

Unavailable

2

SPACER, SEAT HOLDER

77115-148-870

Unavailable

3

RUBBER B, SEAT (NOT AVAILABLE)

77205-148-000

Unavailable

5

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.29

5

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.29

5

BOLT, HEX. (6X12)

92101-06012-0A

$1.29

6

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.33

6

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.33

6

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.33

6

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.33

6

BOLT, HEX. (6X16)

92101-06016-0A

$1.33

6

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.33

7

BOLT, HEX. (8X65) This part replaces 92000-08065-0A.

92101-08065-0A

Unavailable

7

BOLT, HEX. (8X65)

92101-08065-0A

Unavailable

8

NUT, HEX. (8MM)

94001-08000-0S

$1.19

9

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

9

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

9

WASHER, PLAIN (6MM)

94101-06800

Unavailable

10

WASHER, PLAIN (8MM)

94101-08000

$0.75

11

WASHER, SPRING (6MM)

94111-06000

$0.86

12

WASHER, SPRING (8MM)

94111-08000

$0.90
