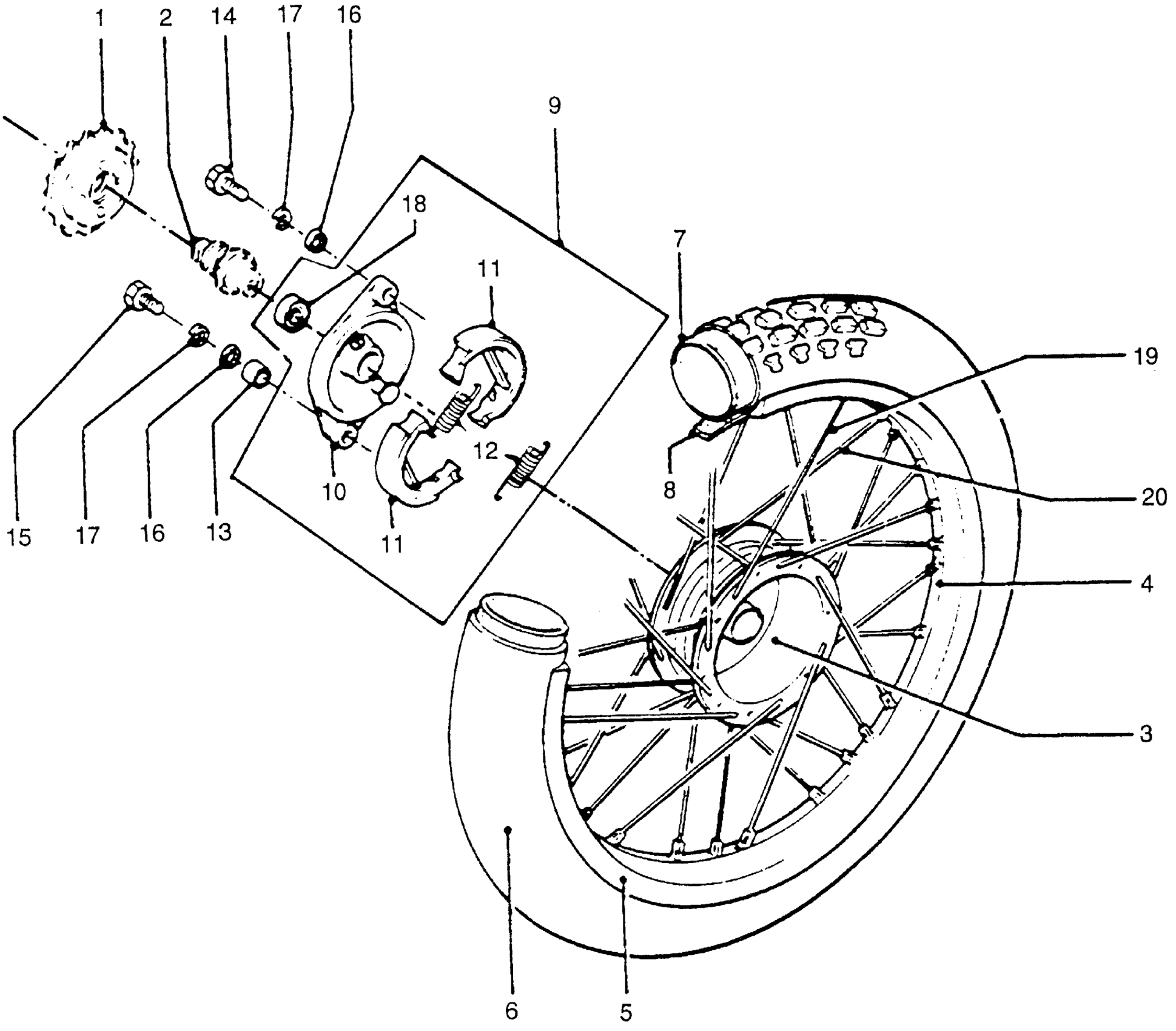

Honda PA50IIA (83) MOPED-30 MPH, BE, VIN# YC1AB090-DB300001 REAR WHEEL Diagram

#

Description
Price

NI

SHOE SET, BRAKE

06430-131-405

$15.33

NI

SHOE SET, BRAKE This part replaces 451A2-147-672.

06430-131-405

$15.33

1

FREE WHEEL (22T) (NOT AVAILABLE)

41210-148-000

Unavailable

2

GUIDE, FREE WHEEL (NOT AVAILABLE)

41215-148-000

Unavailable

3

HUB, RR. WHEEL

42601-148-670

Unavailable

4

WHEEL SUB-ASSY., RR. (NOT AVAILABLE)

42630-148-305

Unavailable

5

RIM, RR. WHEEL (NOT AVAILABLE)

42701-148-670

Unavailable

6

TIRE, WHEEL (2.25-17) (NOT AVAILABLE)

42711-148-670

Unavailable

6

TIRE, WHEEL (2.25-17) (NOT AVAILABLE) This part replaces 42711-148-672M2.

42711-148-670

Unavailable

7

TUBE, TIRE (2.50-17) (INOUE) This part replaces 0Y400-03010.

42712-041-154

Unavailable

7

TUBE, TIRE (2.50-17) (INOUE) This part replaces 08400-03010.

42712-041-154

Unavailable

7

TUBE, TIRE (2.50-17) (INOUE) This part replaces 42712-041-003.

42712-041-154

Unavailable

7

TUBE, TIRE (2.50-17) (INOUE)

42712-041-154

Unavailable

7

TUBE, TIRE (2.50-17) (INOUE) This part replaces 42712-052-009.

42712-041-154

Unavailable

7

TUBE, TIRE (2.50-17) (INOUE) This part replaces 42712-148-672M2.

42712-041-154

Unavailable

8

FLAP, TIRE (NOT AVAILABLE) This part replaces 42713-099-158.

44713-099-158

Unavailable

8

FLAP, TIRE (NOT AVAILABLE) This part replaces 42713-099-158M1.

44713-099-158

Unavailable

8

FLAP, TIRE (NOT AVAILABLE)

44713-099-158

Unavailable

9

PANEL ASSY., RR. BRAKE

43050-148-670S1

Unavailable

10

PANEL, RR. BRAKE

43100-148-672

Unavailable

11

SHOE SET, BRAKE

06430-131-405

$15.33

11

SHOE, FR. BRAKE

43120-GZ9-003

Unavailable

11

SHOE, FR. BRAKE This part replaces 45120-GE8-003.

43120-GZ9-003

Unavailable

11

SHOE, FR. BRAKE This part replaces 45120-GE8-505.

43120-GZ9-003

Unavailable

11

SHOE, FR. BRAKE This part replaces 45120-147-672.

43120-GZ9-003

Unavailable

12

SPRING, BRAKE SHOE

45133-044-000

$2.31

13

COLLAR, RR. SWINGARM (NOT AVAILABLE)

52112-148-000

Unavailable

14

BOLT, HEX. (8X18) This part replaces 92000-08018-0A.

92101-08018-0A

$1.53

14

BOLT, HEX. (8X18)

92101-08018-0A

$1.53

15

BOLT, HEX. (8X30) This part replaces 92000-08030-0A.

92101-08030-0A

$1.49

15

BOLT, HEX. (8X30)

92101-08030-0A

$1.49

16

WASHER, PLAIN (8MM)

94101-08000

$1.49

17

WASHER, SPRING (8MM)

94111-08000

$1.49

18

BEARING, RADIAL BALL (6202UU)

96150-62020-10

$14.36

19

SPOKE A (12X157)

97065-21154-F0

Unavailable

19

SPOKE A (12X157) This part replaces 97065-21154-10.

97065-21154-F0

Unavailable

20

SPOKE A (12X157)

97160-21154-F0

Unavailable

20

SPOKE A (12X157) This part replaces 97160-21154-10.

97160-21154-F0

Unavailable
