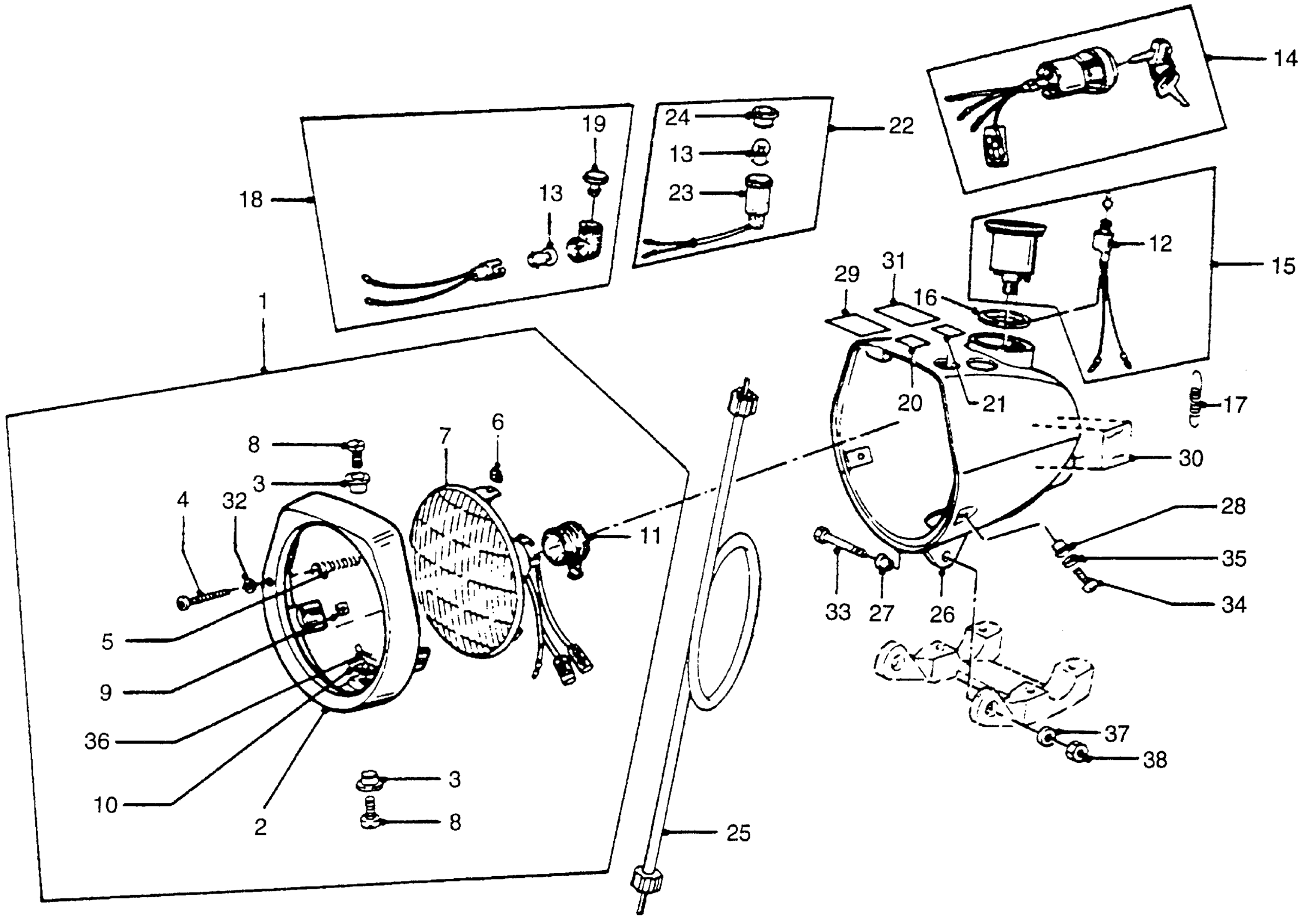

Honda PA50IIA (83) MOPED-30 MPH, BE, VIN# YC1AB090-DB300001 HEADLIGHT + SPEEDOMETER Diagram

#

Description
Price

1

HEADLIGHT ASSY. *NH1* (BLACK) (NOT AVAILABLE)

33100-147-672B

Unavailable

2

RIM, HEADLIGHT *NH105* (MAT BLACK) (NOT AVAILABLE) This part replaces 33101-147-671B.

33101-147-671ZM

Unavailable

2

RIM, HEADLIGHT *NH105* (MAT BLACK) (NOT AVAILABLE)

33101-147-671ZM

Unavailable

3

WASHER, UNIT HOLDER

33102-147-670

Unavailable

4

SCREW, BEAM ADJ.

33103-147-671

Unavailable

5

SPRING, HEADLIGHT BEAM ADJUSTING (NOT AVAILABLE)

33107-147-671

Unavailable

6

NUT, BEAM ADJ.

33117-041-003

$1.95

7

HEADLIGHT UNIT (6V 15/15W) (STANLEY)

33120-147-671

Unavailable

8

SCREW, UNIT HOLDER (NOT AVAILABLE)

33125-147-670

Unavailable

9

COLLAR (NOT AVAILABLE)

33127-147-670

Unavailable

10

NUT, UNIT HOLDER

33128-292-670

$2.94

11

COVER, RUBBER

33130-111-671

Unavailable

12

BULB, SPEEDOMETER (6V1.5W) (STANLEY)

34908-001-000

$5.57

13

BULB, SPEEDOMETER (6V1.7W1CP) (51) (STANLEY)

34908-230-000

$4.67

14

LOCK SET

35010-148-670

Unavailable

15

SPEEDOMETER ASSY. (MPH/KPH) (NOT AVAILABLE)

37200-147-711

Unavailable

16

PLATE, SPEEDOMETER SETTING (NOT AVAILABLE)

37202-147-670

Unavailable

17

SPRING, SPEEDOMETER SETTING (NOT AVAILABLE)

37244-045-010

Unavailable

18

LIGHT ASSY., BEAM PILOT (IMASEN)

37550-329-015

Unavailable

19

LENS, BEAM PILOT (IMASEN) (NOT AVAILABLE)

37551-329-015

Unavailable

20

LABEL, BEAM PILOT LAMP

37555-370-740

Unavailable

21

LABEL, TURN SIGNAL (NOT AVAILABLE)

37556-156-600

Unavailable

22

LAMP ASSY., TURN SIGNAL PILOT (NOT AVAILABLE)

37560-147-890

Unavailable

23

LAMP ASSY., TURN SIGNAL PILOT (NOT AVAILABLE) This part replaces 37562-147-890.

37560-147-890

Unavailable

24

LENS, TURN SIGNAL PILOT

37561-147-890

Unavailable

25

CABLE, SPEEDOMETER (NOT AVAILABLE)

44830-148-671

Unavailable

26

CASE, HEADLIGHT *NH1* (BLACK) (NOT AVAILABLE) This part replaces 61301-147-891B.

61301-147-891ZE

Unavailable

26

CASE, HEADLIGHT *NH1* (BLACK) (NOT AVAILABLE)

61301-147-891ZE

Unavailable

27

COLLAR, HEADLIGHT CASE (NOT AVAILABLE)

61302-147-670

Unavailable

28

COLLAR, HEADLIGHT SETTING

61304-292-000

$3.47

29

LABEL, OPERATOR WARNING *NH1* (BLACK)

87510-147-670ZA

$2.92

29

LABEL, OPERATOR WARNING *NH1* (BLACK) This part replaces 87510-147-670.

87510-147-670ZA

$2.92

29

LABEL, OPERATOR WARNING *NH1* (BLACK) This part replaces 87510-147-670B.

87510-147-670ZA

$2.92

29

LABEL, OPERATOR WARNING *NH1* (BLACK) This part replaces 87510-147-670W.

87510-147-670ZA

$2.92

30

LABEL, PROTECTOR (NOT AVAILABLE)

87519-GB7-670

Unavailable

31

LABEL, DRIVE CAUTION *NH1* (BLACK) (NOT AVAILABLE)

87560-174-770ZA

Unavailable

32

WASHER, BEAM ADJ.

90286-147-670

$2.39

33

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

33

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

33

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

34

SCREW, PAN (5X16)

93500-05016-0A

$1.49

35

WASHER, SPRING (5MM)

94111-05000

$1.49

36

PIN, LOCK (5MM)

94251-05000

$1.49

37

WASHER, FAN (6MM)

90130-148-000

Unavailable

38

NUT, CAP (6MM)

94021-06020

$1.73
