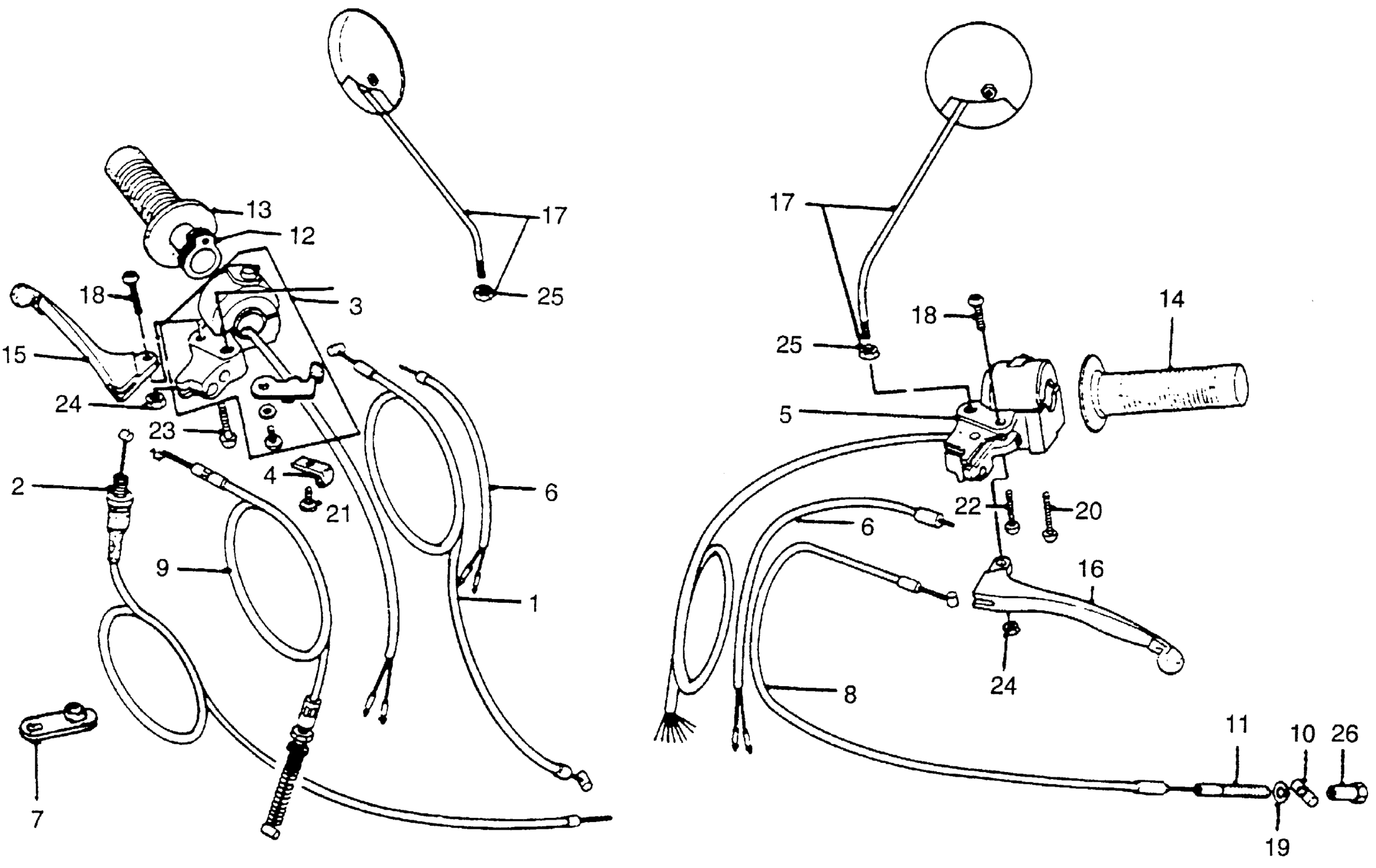

Honda PA50IIA (83) MOPED-30 MPH, BE, VIN# YC1AB090-DB300001 HANDLE LEVER + SWITCH + CABLES Diagram

#

Description
Price

1

CABLE *NH1* (BLACK)

14950-148-020B

Unavailable

2

CABLE, THROTTLE

17910-148-780

Unavailable

3

SWITCH ASSY., STOP (NOT AVAILABLE)

35130-GB7-671

Unavailable

4

STOPPER, CABLE

35205-147-000

Unavailable

5

SWITCH ASSY., TURN SIGNAL & HORN & DIMMER (NOT AVAILABLE) This part replaces 35200-147-971.

35200-190-660

Unavailable

5

SWITCH ASSY., TURN SIGNAL & HORN & DIMMER (NOT AVAILABLE)

35200-190-660

Unavailable

6

SWITCH ASSY., FR. STOP This part replaces 35340-187-700.

35340-GAN-620

$19.20

6

SWITCH ASSY., FR. STOP This part replaces 35340-401-681.

35340-GAN-620

$19.20

6

SWITCH ASSY., FR. STOP This part replaces 35340-401-682.

35340-GAN-620

$19.20

6

SWITCH ASSY., FR. STOP This part replaces 35340-437-661.

35340-GAN-620

$19.20

7

BAND, WIRE

32801-197-000

Unavailable

8

CABLE, RR. BRAKE *NH1* (BLACK) (NOT AVAILABLE)

43450-148-671B

Unavailable

9

CABLE, FR. BRAKE (NOT AVAILABLE) This part replaces 45450-148-671.

45450-148-672

Unavailable

9

CABLE, FR. BRAKE (NOT AVAILABLE)

45450-148-672

Unavailable

10

JOINT, BRAKE ARM (NOT AVAILABLE)

45453-148-670

Unavailable

11

SPRING, RR. BRAKE (NOT AVAILABLE)

45455-161-000

Unavailable

12

PIPE, THROTTLE GRIP This part replaces 53141-125-770.

53141-125-771

$15.29

12

PIPE, THROTTLE GRIP

53141-125-771

$15.29

13

GRIP, R. HANDLE

53165-GA7-000

$6.48

14

GRIP, L. HANDLE

53166-GA7-000

$6.48

15

LEVER, R. HANDLEBAR (COO) This part replaces 53175-147-671.

53175-GGA-305

$12.88

16

LEVER, L. HANDLEBAR (COO) This part replaces 53178-GF0-000.

53178-GGL-305

$14.62

16

LEVER, L. HANDLEBAR (COO) This part replaces 53178-GR2-000.

53178-GGL-305

$14.62

16

LEVER, L. HANDLEBAR (COO) This part replaces 53178-147-010.

53178-GGL-305

$14.62

16

LEVER, L. HANDLEBAR (COO) This part replaces 53178-155-000.

53178-GGL-305

$14.62

16

LEVER, L. HANDLEBAR (COO) This part replaces 53178-187-000.

53178-GGL-305

$14.62

17

MIRROR COMP. This part replaces 88110-GB4-000.

88210-GN2-000

$29.10

17

MIRROR COMP. This part replaces 88110-GK8-405.

88210-GN2-000

$29.10

17

MIRROR COMP. This part replaces 88110-GN2-000.

88210-GN2-000

$29.10

17

MIRROR COMP. This part replaces 88110-190-670.

88210-GN2-000

$29.10

18

SCREW, HANDLE LEVER PIVOT (5MM)

90115-147-000

$2.72

19

WASHER, RR. BRAKE (NOT AVAILABLE)

90522-148-000

Unavailable

20

SCREW, PAN (5X40)

93500-05040-0A

$1.49

21

SCREW, PAN (5X28)

93500-05028-0A

$1.49

22

SCREW, PAN (5X32)

93500-05032-0A

$1.49

23

SCREW, PAN (5X35)

93500-05035-0A

$1.49

24

NUT, HEX. (5MM)

94001-05000-0S

$2.74

25

NUT, HEX. (8MM)

94001-08020-0S

$1.49

26

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.49
