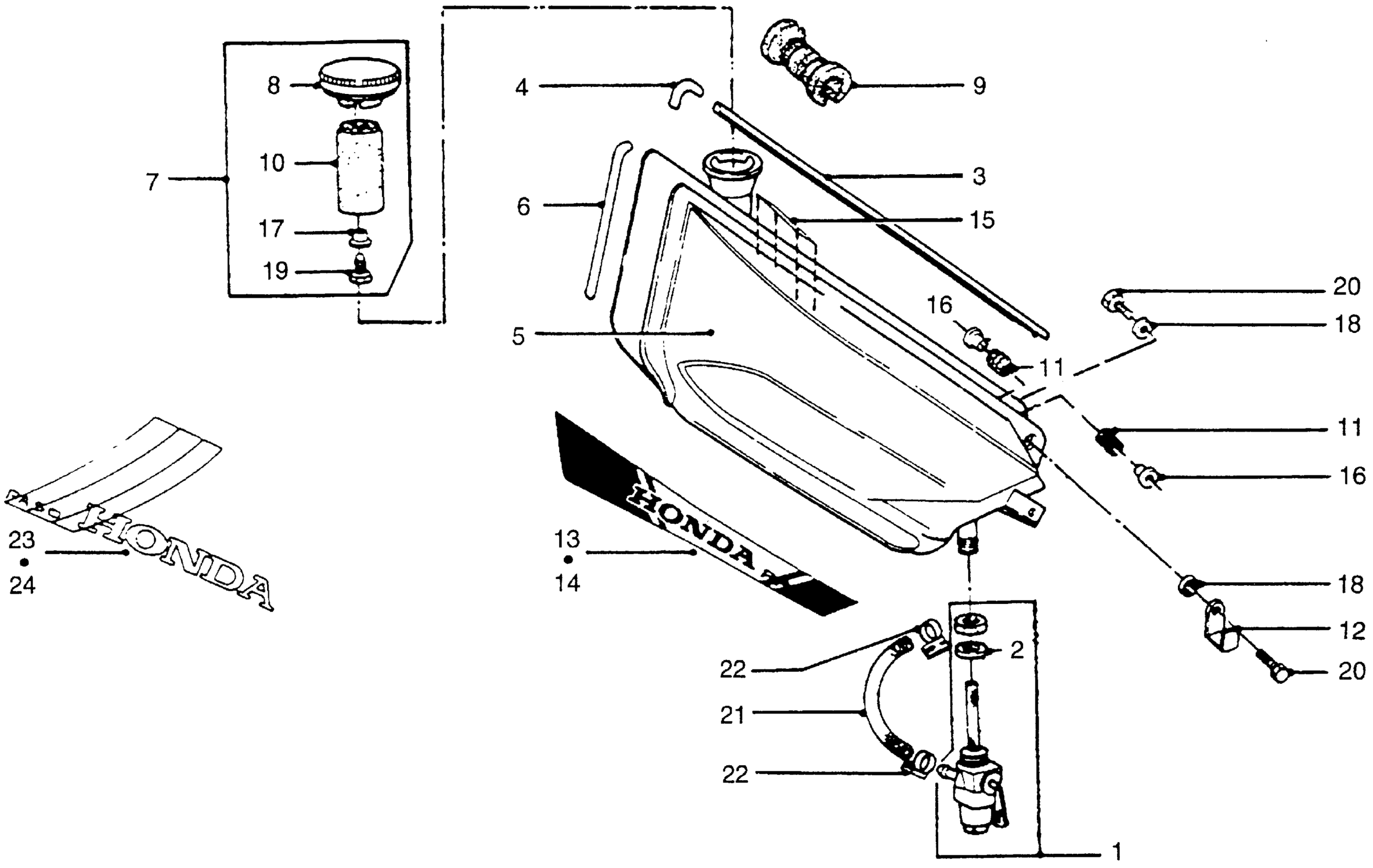

Honda PA50IIA (83) MOPED-30 MPH, BE, VIN# YC1AB090-DB300001 FUEL TANK Diagram

#

Description
Price

1

PETCOCK ASSY. (NOT AVAILABLE)

16950-148-671

Unavailable

3

LACE, FUEL TANK

17501-148-720

Unavailable

4

CLIP, LACE (NOT AVAILABLE)

17502-148-720

Unavailable

5

TANK, FUEL *NH1* (BLACK)

17510-GB7-670B

Unavailable

5

TANK, FUEL *A03* (SILVER) (NOT AVAILABLE)

17510-GB7-670VS

Unavailable

6

MOLDING B, FUEL TANK (NOT AVAILABLE)

17550-148-670

Unavailable

7

CAP ASSY., FUEL TANK (NOT AVAILABLE)

17610-GB7-670

Unavailable

8

CAP, FUEL FILLER (NOT AVAILABLE)

17620-197-000

Unavailable

9

RUBBER, TANK SETTING

17623-148-000

Unavailable

10

CUP, MEASURE

17626-GB7-670

Unavailable

11

RUBBER, REGULATOR CUSHION

31403-323-000

$3.38

12

CLIP, WIRE HARNESS (NOT AVAILABLE)

32172-315-000

Unavailable

16

WASHER, FR. COVER SETTING

90501-124-000

$3.74

17

WASHER, MEASURE CUP SETTING (NOT AVAILABLE)

90556-197-000

Unavailable

18

WASHER (18MM)

90581-831-650

$1.87

19

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

19

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

20

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

20

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

21

BULK HOSE, FUEL (4.5X3000) (4.5X90) This part replaces 95001-45003-20M.

95001-45003-50M

$61.19

22

CLIP, TUBE (A10)

95002-01100

$2.63

23

EMBLEM, R. FUEL TANK

87121-GB7-460

Unavailable

24

EMBLEM, L. FUEL TANK

87122-GB7-460

Unavailable
