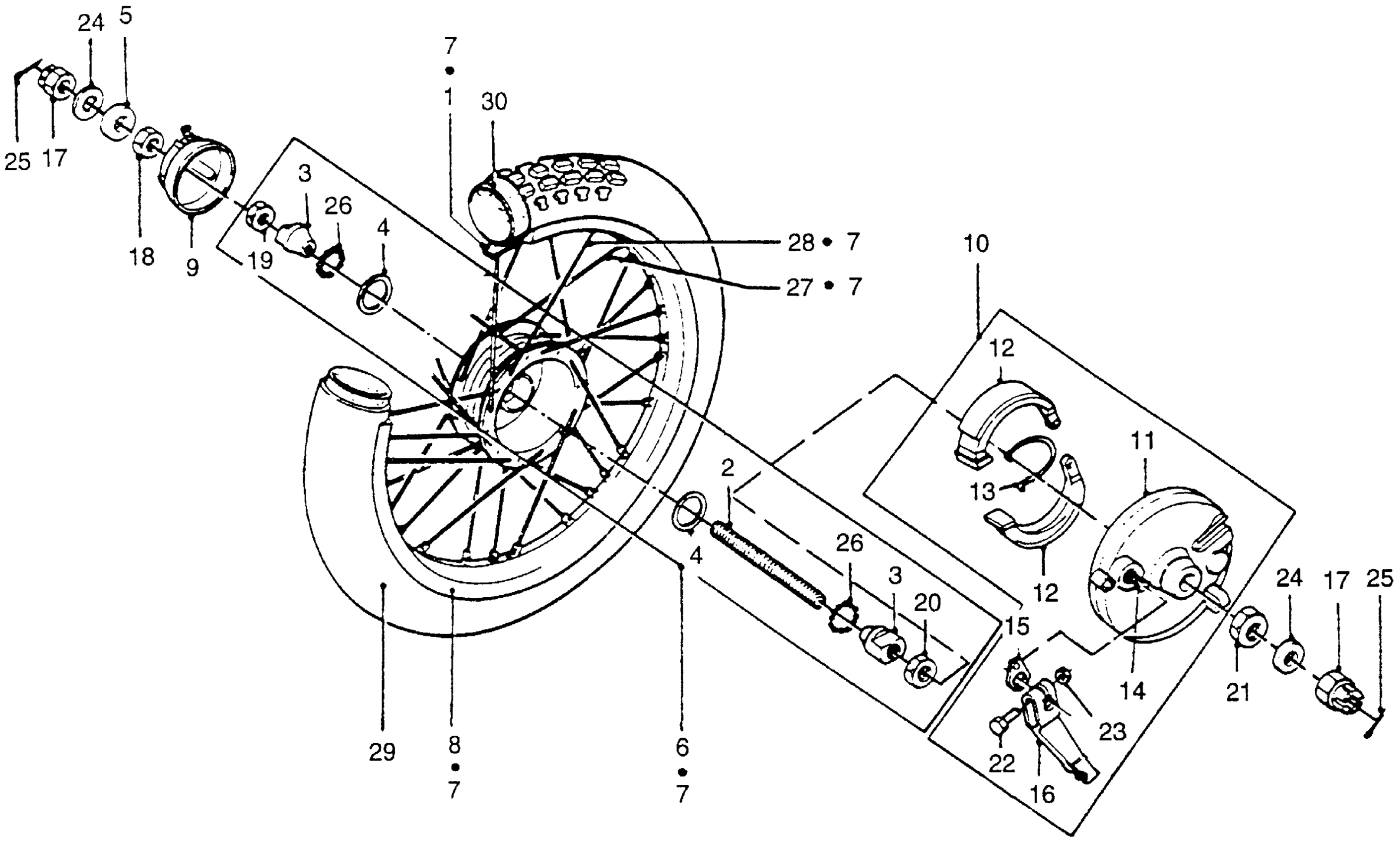

Honda PA50IIA (83) MOPED-30 MPH, BE, VIN# YC1AB090-DB300001 FRONT WHEEL Diagram

#

Description
Price

NI

SHOE SET, BRAKE

06430-131-405

$15.33

NI

SHOE SET, BRAKE This part replaces 451A2-147-672.

06430-131-405

$15.33

1

FLAP, TIRE (NOT AVAILABLE) This part replaces 42713-099-158.

44713-099-158

Unavailable

1

FLAP, TIRE (NOT AVAILABLE) This part replaces 42713-099-158M1.

44713-099-158

Unavailable

1

FLAP, TIRE (NOT AVAILABLE)

44713-099-158

Unavailable

2

AXLE, FR. WHEEL (NOT AVAILABLE)

44301-148-670

Unavailable

3

RACE, FR. WHEEL CONE

44302-093-003

Unavailable

4

RACE, FR. WHEEL BALL (NOT AVAILABLE)

44303-093-003

Unavailable

5

COLLAR, FR. AXLE

44311-148-010

Unavailable

5

COLLAR, FR. AXLE This part replaces 44311-148-101.

44311-148-010

Unavailable

6

HUB ASSY., FR.

44610-148-670

Unavailable

7

WHEEL SUB-ASSY., FR. (NOT AVAILABLE)

44630-148-670S1

Unavailable

8

RIM, FR. WHEEL (NOT AVAILABLE)

44701-148-780

Unavailable

9

BOX ASSY., SPEEDOMETER GEAR

44800-148-670

Unavailable

10

PANEL ASSY., FR. BRAKE (NOT AVAILABLE)

45000-148-670

Unavailable

11

PANEL, FR. BRAKE

45100-148-671

Unavailable

12

SHOE SET, BRAKE

06430-131-405

$15.33

12

SHOE, FR. BRAKE

43120-GZ9-003

Unavailable

12

SHOE, FR. BRAKE This part replaces 45120-GE8-003.

43120-GZ9-003

Unavailable

12

SHOE, FR. BRAKE This part replaces 45120-GE8-505.

43120-GZ9-003

Unavailable

12

SHOE, FR. BRAKE This part replaces 45120-147-672.

43120-GZ9-003

Unavailable

13

SPRING, BRAKE SHOE

45133-044-000

$2.31

14

CAM, FR. BRAKE

45141-148-671

Unavailable

15

INDICATOR, BRAKE (NOT AVAILABLE)

45145-147-000

Unavailable

16

ARM, FR. BRAKE (NOT AVAILABLE)

45410-148-670

Unavailable

17

NUT, AXLE (11MM) (NOT AVAILABLE)

90305-148-670

Unavailable

18

NUT C (11MM-TH) (7MM)

90312-099-003

Unavailable

19

NUT B (11MM-TH) (5MM)

90313-093-003

Unavailable

20

NUT A (11MM-TH) (3.5MM) (NOT AVAILABLE)

90314-093-003

Unavailable

21

NUT, THIN (11MM-TH) (29MM) (NOT AVAILABLE)

90316-148-670

Unavailable

22

BOLT, HEX. (5X20) This part replaces 92000-05020-0A.

92101-05020-0A

$1.49

22

BOLT, HEX. (5X20)

92101-05020-0A

$1.49

22

BOLT, HEX. (5X20) This part replaces 92301-05020-0A.

92101-05020-0A

$1.49

23

NUT, HEX. (5MM)

94001-05000-0S

$2.74

24

WASHER, PLAIN (12MM) This part replaces 00000-00636.

94101-12000

$1.49

24

WASHER, PLAIN (12MM)

94101-12000

$1.49

24

WASHER, PLAIN (12MM) This part replaces 94101-12000-00.

94101-12000

$1.49

24

WASHER, PLAIN (12MM) This part replaces 94101-12200.

94101-12000

$1.49

25

PIN, COTTER (3.0X45)

94201-30450

$1.49

26

BALL, STEEL (#7) (7/32)

96211-07000

$1.49

27

SPOKE A (13X186)

97087-11212-B0

Unavailable

27

SPOKE A (13X186) This part replaces 97087-11212-10.

97087-11212-B0

Unavailable

28

SPOKE A (13X185.5)

97188-11211-B0

Unavailable

28

SPOKE A (13X185.5) This part replaces 97188-11211-10.

97188-11211-B0

Unavailable

29

TIRE, WHEEL (2.25-17) (NOT AVAILABLE)

42711-148-670

Unavailable

29

TIRE, WHEEL (2.25-17) (NOT AVAILABLE) This part replaces 42711-148-672M2.

42711-148-670

Unavailable

30

TUBE, TIRE (2.50-17) (INOUE) This part replaces 0Y400-03010.

42712-041-154

Unavailable

30

TUBE, TIRE (2.50-17) (INOUE) This part replaces 08400-03010.

42712-041-154

Unavailable

30

TUBE, TIRE (2.50-17) (INOUE) This part replaces 42712-041-003.

42712-041-154

Unavailable

30

TUBE, TIRE (2.50-17) (INOUE)

42712-041-154

Unavailable

30

TUBE, TIRE (2.50-17) (INOUE) This part replaces 42712-052-009.

42712-041-154

Unavailable

30

TUBE, TIRE (2.50-17) (INOUE) This part replaces 42712-148-672M2.

42712-041-154

Unavailable
