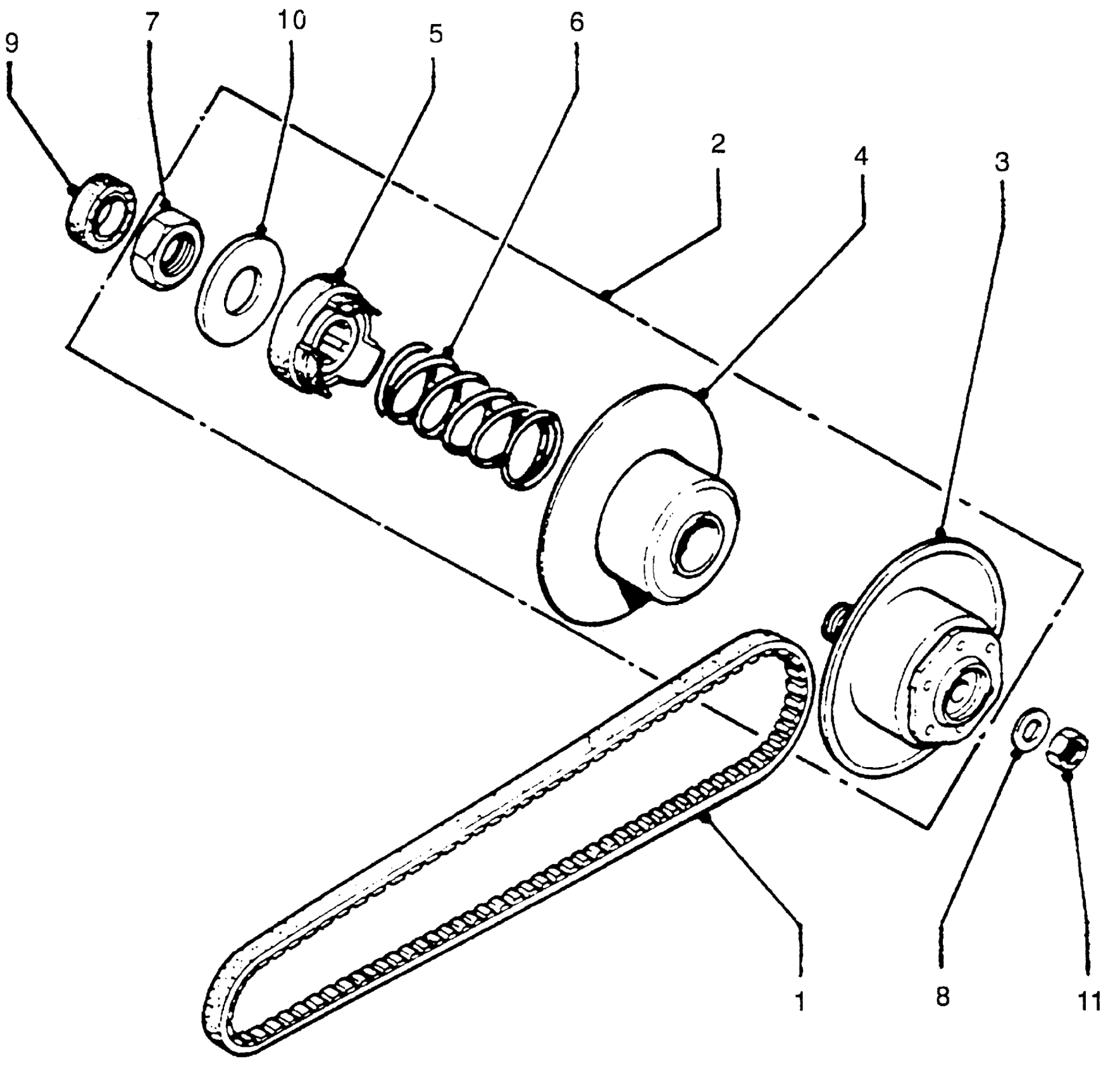

Honda PA50IIA (83) MOPED-30 MPH, BE, VIN# YC1AB090-DB300001 DRIVEN FACE Diagram

#

Description

Price

1

BELT, DRIVE (MITSUBOSHI)

23100-148-703

Unavailable

2

FACE ASSY., DRIVEN (NOT AVAILABLE)

23200-148-673

Unavailable

3

FACE, DRIVEN

23210-148-670

Unavailable

4

FACE, MOVABLE DRIVEN (NOT AVAILABLE)

23220-148-672

Unavailable

5

FOLLOWER, CAM (NOT AVAILABLE)

23231-148-672

Unavailable

6

SPRING, DRIVEN FACE (NOT AVAILABLE)

23233-148-671

Unavailable

7

NUT, SPECIAL (20MM) (NOT AVAILABLE)

90202-148-000

Unavailable

8

WASHER (8MM)

90485-040-000

$1.77

9

OIL SEAL (12X22X5) This part replaces 91201-148-003.

91201-965-000

$4.06

9

OIL SEAL (12X22X5)

91201-965-000

$4.06

10

OIL SEAL (24X34X5.5) (NOT AVAILABLE)

91204-148-023

Unavailable

11

NUT, HEX. (8MM)

94030-08000

$1.49
