- PA50IIA (83) MOPED-30 MPH, BE, VIN# YC1AB090-DB300001
DRIVE FACE

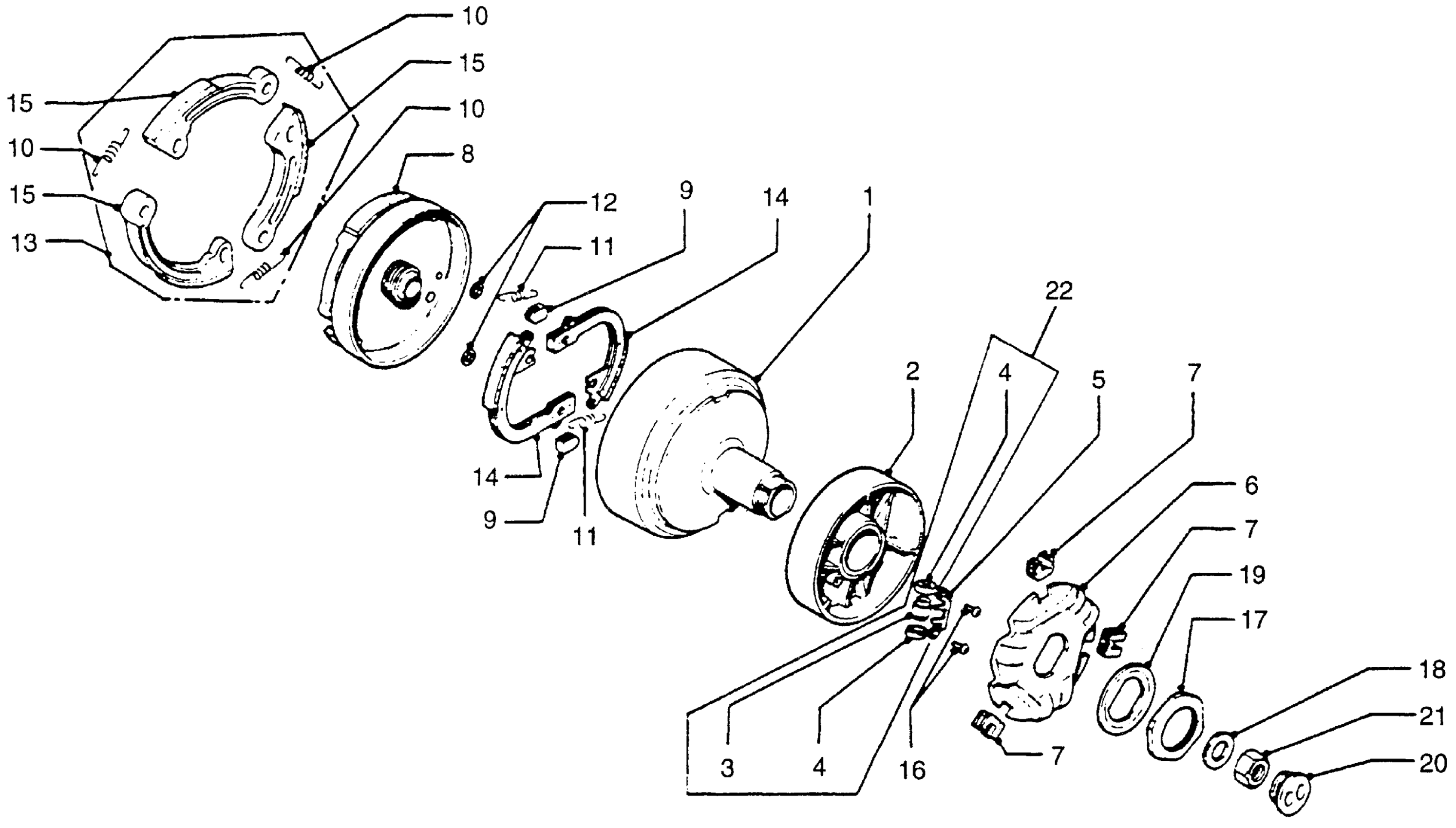

Honda PA50IIA (83) MOPED-30 MPH, BE, VIN# YC1AB090-DB300001 DRIVE FACE Diagram
#
Description
Price
1
DRIVE FACE
22100-GB7-630
Unavailable
1
DRIVE FACE This part replaces 22100-148-703.
22100-GB7-630
Unavailable
2
FACE DRIVE, MOVABLE (NOT AVAILABLE)
22110-148-701
Unavailable
3
ROLLER, WEIGHT (NOT AVAILABLE)
22121-148-701
Unavailable
4
COLLAR, WEIGHT
22122-148-701
Unavailable
5
PLATE, ROLLER WEIGHT (NOT AVAILABLE)
22125-148-701
Unavailable
6
PLATE, RAMP (NOT AVAILABLE)
22131-148-700
Unavailable
7
PIECE, SLIDE
22132-148-700
Unavailable
8
PLATE ASSY., DRIVE This part replaces 22300-148-010.
22300-148-405
Unavailable
8
PLATE ASSY., DRIVE
22300-148-405
Unavailable
9
DAMPER, STARTING CLUTCH (NOT AVAILABLE)
22356-148-010
Unavailable
10
SPRING, CLUTCH
22401-148-000
Unavailable
11
SPRING, CLUTCH (NOT AVAILABLE)
22402-148-000
Unavailable
12
PLATE, CLUTCH SETTING
22403-148-000
Unavailable
13
WEIGHT, SET CLUTCH This part replaces 22510-148-305.
22510-148-405
Unavailable
13
WEIGHT, SET CLUTCH
22510-148-405
Unavailable
14
WEIGHT, STARTING CLUTCH This part replaces 22520-148-010.
22520-148-405
Unavailable
14
WEIGHT, STARTING CLUTCH
22520-148-405
Unavailable
15
WEIGHT, SET CLUTCH This part replaces 22510-148-305.
22510-148-405
Unavailable
15
WEIGHT, CLUTCH
22510-148-405
Unavailable
15
WEIGHT, SET CLUTCH This part replaces 22530-148-000.
22510-148-405
Unavailable
16
SCREW, PAN (4X4.5) (NOT AVAILABLE)
90101-148-000
Unavailable
17
NUT, SPECIAL (27MM)
90201-GB7-620
Unavailable
17
NUT, SPECIAL (27MM) This part replaces 90201-148-700.
90201-GB7-620
Unavailable
19
WASHER, LOCK (NOT AVAILABLE)
90431-148-701
Unavailable
20
RUBBER, SEAL (NOT AVAILABLE)
90801-148-700
Unavailable
22
ROLLER, WEIGHT SET
22120-148-700
Unavailable
