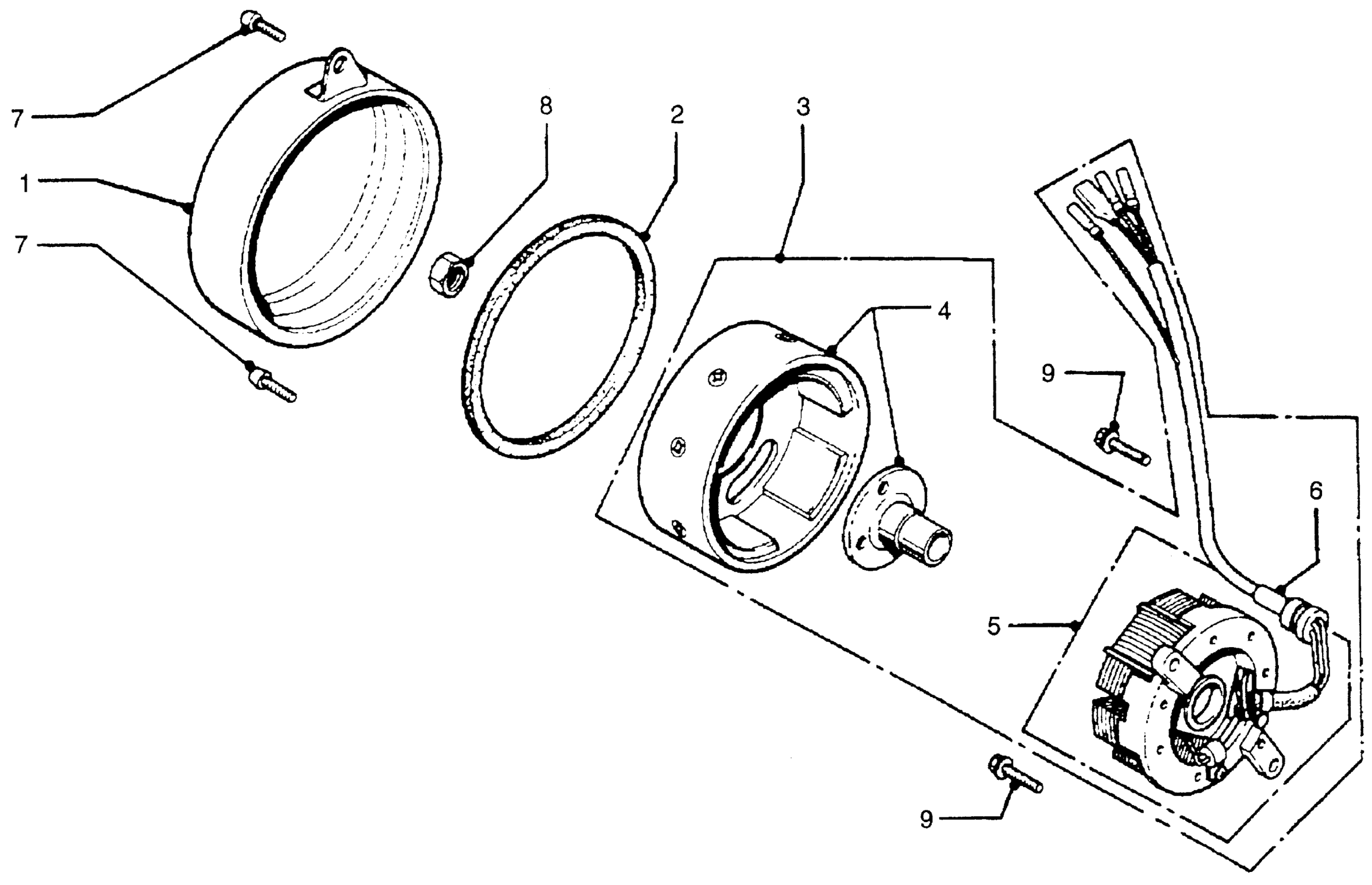

Honda PA50IIA (83) MOPED-30 MPH, BE, VIN# YC1AB090-DB300001 ALTERNATOR Diagram

COVER, ALTERNATOR (NOT AVAILABLE)

11431-148-670

Unavailable

GASKET, ALTERNATOR COVER

11432-147-000

Unavailable

ALTERNATOR, FLYWHEEL C.D.I. (NOT AVAILABLE)

31100-GB7-671

Unavailable

FLYWHEEL, C.D.I. (NOT AVAILABLE)

31110-GB7-671

Unavailable

STATOR, CDI (NOT AVAILABLE)

31120-GB7-671

Unavailable

GROMMET (NOT AVAILABLE)

32956-197-004

Unavailable

SCREW, PAN (6X10) This part replaces 93500-06010.

93500-06010-0A

$1.49

NUT, FLANGE (10MM) This part replaces 90204-634-000.

94050-10000

$1.59

NUT, FLANGE (10MM) This part replaces 94030-10000-07.

94050-10000

$1.59

NUT, FLANGE (10MM)

94050-10000

$1.59

BOLT, FLANGE (6X20) This part replaces 96000-06020-00.

96001-06020-00

$1.49

BOLT, FLANGE (6X20)

96001-06020-00

$1.49
