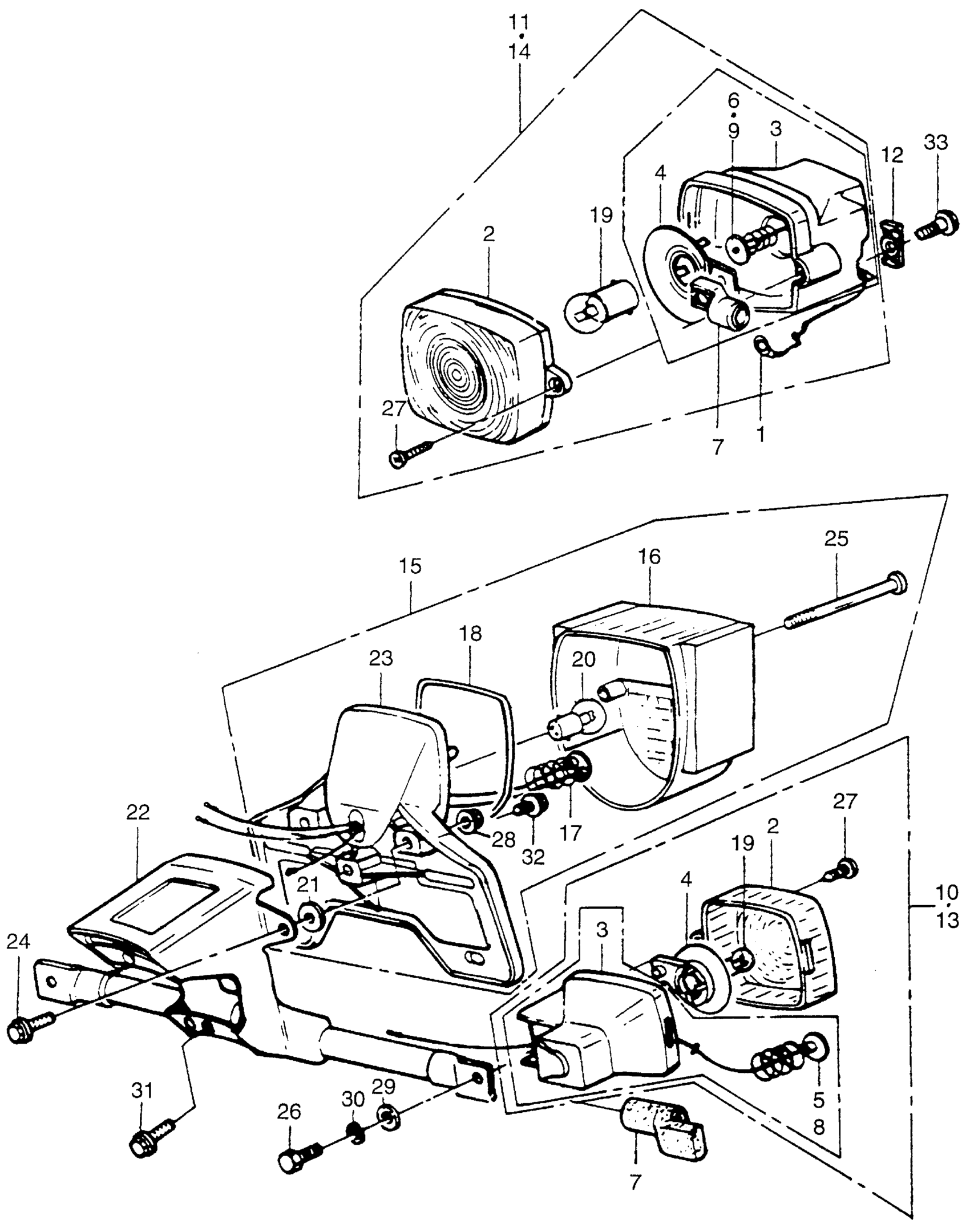

Honda PA50IIA (81) MOPED-30 MPH, BE, VIN# YC1AB090-BB200001 TAILLIGHT + TURN SIGNAL 81 Diagram

#

Description
Price

1

GROUND WIRE, TURN SIGNAL (NOT AVAILABLE)

32111-GB7-670

Unavailable

2

LENS, TURN SIGNAL This part replaces 33402-195-013.

33402-195-023

$8.74

2

LENS, TURN SIGNAL

33402-195-023

$8.74

3

BASE, TURN SIGNAL This part replaces 33403-195-003.

33403-195-013

Unavailable

3

BASE, TURN SIGNAL

33403-195-013

Unavailable

4

REFLECTOR, TURN SIGNAL (NOT AVAILABLE)

33404-174-771

Unavailable

5

WIRE, R. TURN SIGNAL (NOT AVAILABLE)

33410-459-672

Unavailable

6

WIRE, R. RR. TURN SIGNAL (STANLEY) (NOT AVAILABLE)

33610-437-710

Unavailable

7

COVER, TURN SIGNAL STAY

33425-174-770

$5.23

8

WIRE, L. TURN SIGNAL (NOT AVAILABLE)

33460-459-672

Unavailable

9

WIRE, L. RR. TURN SIGNAL (STANLEY) (NOT AVAILABLE)

33660-437-710

Unavailable

10

WIRE, L. RR. TURN SIGNAL (STANLEY) (NOT AVAILABLE)

33660-437-710

Unavailable

11

TURN SIGNAL ASSY., L. RR.

33600-174-405

Unavailable

11

TURN SIGNAL ASSY., L. RR. This part replaces 33600-174-771.

33600-174-405

Unavailable

11

TURN SIGNAL ASSY., L. RR. This part replaces 33600-174-772.

33600-174-405

Unavailable

11

TURN SIGNAL ASSY., L. RR. This part replaces 33600-174-779.

33600-174-405

Unavailable

11

TURN SIGNAL ASSY., L. RR. This part replaces 33650-174-771.

33600-174-405

Unavailable

12

TURN SIGNAL, R. RR. This part replaces 33600-KA8-719.

33600-KA8-406

Unavailable

12

TURN SIGNAL, R. RR. This part replaces 33600-437-711.

33600-KA8-406

Unavailable

12

TURN SIGNAL, R. RR. This part replaces 33600-437-771.

33600-KA8-406

Unavailable

12

TURN SIGNAL, R. RR. This part replaces 33650-437-711.

33600-KA8-406

Unavailable

13

RUBBER, TURN SIGNAL MOUNTING

33612-459-670

Unavailable

14

TURN SIGNAL, R. RR. This part replaces 33600-KA8-719.

33600-KA8-406

Unavailable

14

TURN SIGNAL, R. RR. This part replaces 33650-437-711.

33600-KA8-406

Unavailable

15

TAILLIGHT ASSY. (6V 32/3CP) (STANLEY)

33700-147-671

Unavailable

15

TAILLIGHT ASSY. (6V 32/3CP) (STANLEY) (NOT AVAILABLE) This part replaces 33700-190-671.

33700-147-671

Unavailable

16

LENS, TAILLIGHT (STANLEY)

33702-147-671

Unavailable

17

WIRE, TAILLIGHT (STANLEY)

33705-147-671

Unavailable

18

GASKET, TAILLIGHT LENS

33709-074-671

$2.08

19

BULB, TURN SIGNAL (6V17W) (STANLEY)

34905-358-003

$5.42

20

BULB, STOP & TAILLIGHT (6V32/3CP) (STANLEY)

34906-329-671

$6.49

21

RUBBER B, RR. FENDER (NOT AVAILABLE)

80113-099-000

Unavailable

22

BRACKET, NUMBER PLATE (NOT AVAILABLE) This part replaces 84701-190-671.

84701-147-671

Unavailable

23

BRACKET, NUMBER PLATE (NOT AVAILABLE) This part replaces 84701-190-671.

84701-147-671

Unavailable

24

BOLT, FLANGE (6MM)

90111-162-000

$2.89

25

SCREW, TAPPING (4X60)

90147-147-671

$2.70

26

BOLT, HEX. (5X12) This part replaces 92000-05012-0A.

92101-05012-0G

$1.49

26

BOLT, HEX. (5X12) This part replaces 92101-05012-0A.

92101-05012-0G

$1.49

26

BOLT, HEX. (5X12)

92101-05012-0G

$1.49

27

SCREW, TAPPING (4X16)

93901-14480

Unavailable

28

NUT, FLANGE (6MM)

94050-06080

$1.49

29

WASHER, PLAIN (5MM)

94101-05000

$1.49

30

WASHER, SPRING (5MM)

94111-05000

$1.49

31

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.49

31

BOLT, FLANGE (6X10)

95701-06010-00

$1.49

32

BOLT, FLANGE (6X16) This part replaces 95700-06016-07.

95701-06016-07

$1.55

32

BOLT, FLANGE (6X16)

95701-06016-07

$1.55

33

BOLT, SETTING

90115-459-770

$4.20
