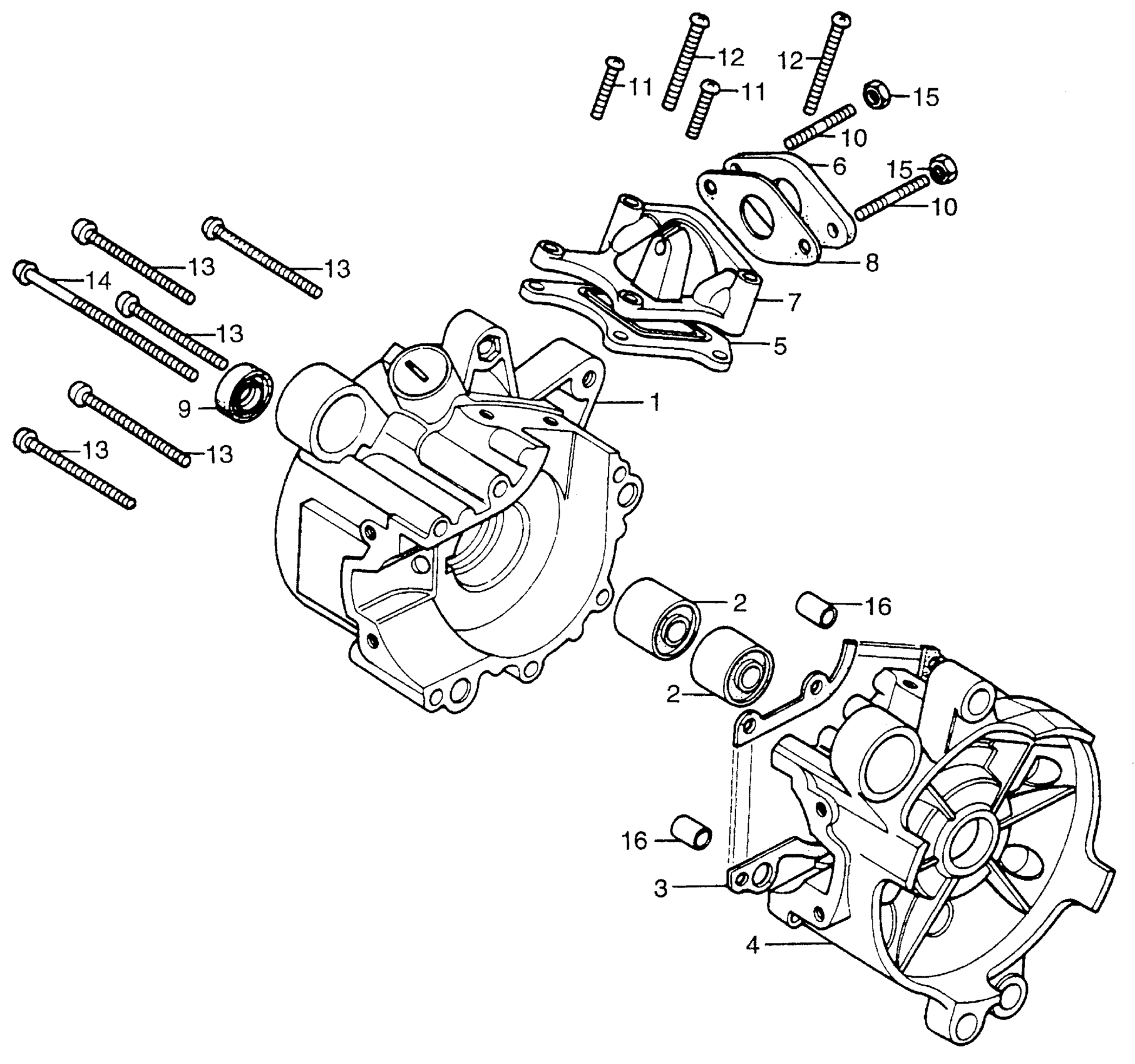

Honda PA50IIA (81) MOPED-30 MPH, BE, VIN# YC1AB090-BB200001 CRANKCASE + INLET PIPE Diagram

#

Description
Price

1

CRANKCASE, R. (NOT AVAILABLE)

11101-148-010

Unavailable

2

BUSH, ENGINE HANGER RUBBER (NOT AVAILABLE)

11102-147-000

Unavailable

3

GASKET, CRANKCASE This part replaces 11191-147-000.

11191-147-010

$7.00

3

GASKET, CRANKCASE

11191-147-010

$7.00

3

GASKET, CRANKCASE This part replaces 11191-147-306.

11191-147-010

$7.00

4

CRANKCASE, L. (NOT AVAILABLE)

11201-148-020

Unavailable

5

VALVE, REED (HOKUSHIN)

14100-148-013

Unavailable

6

INSULATOR, CARB This part replaces 16211-148-000.

16211-148-306

Unavailable

7

PIPE, INLET

17111-148-010

Unavailable

8

GASKET, IN. PIPE This part replaces 17119-148-000.

17119-148-306

Unavailable

9

OIL SEAL (15X25.5X7) This part replaces 91201-147-003.

91201-GW2-000

$3.86

10

BOLT, STUD (6X18) This part replaces 92700-06031.

92900-06018-0B

$1.55

10

BOLT, STUD (6X18)

92900-06018-0B

$1.55

11

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

11

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

12

BOLT, HEX. (6X40) This part replaces 92000-06040-0A.

92101-06040-0A

Unavailable

12

BOLT, HEX. (6X40)

92101-06040-0A

Unavailable

13

SCREW, PAN (6X45) This part replaces 93500-06045.

93500-06045-0A

$1.49

13

SCREW, PAN (6X45)

93500-06045-0A

$1.49

14

SCREW, PAN (6X80) This part replaces 93500-06080.

93500-06080-0A

$1.49

14

SCREW, PAN (6X80)

93500-06080-0A

$1.49

15

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM)

94001-06200-0S

$1.49

16

PIN A, DOWEL (10X20)

94301-10200

$2.35
