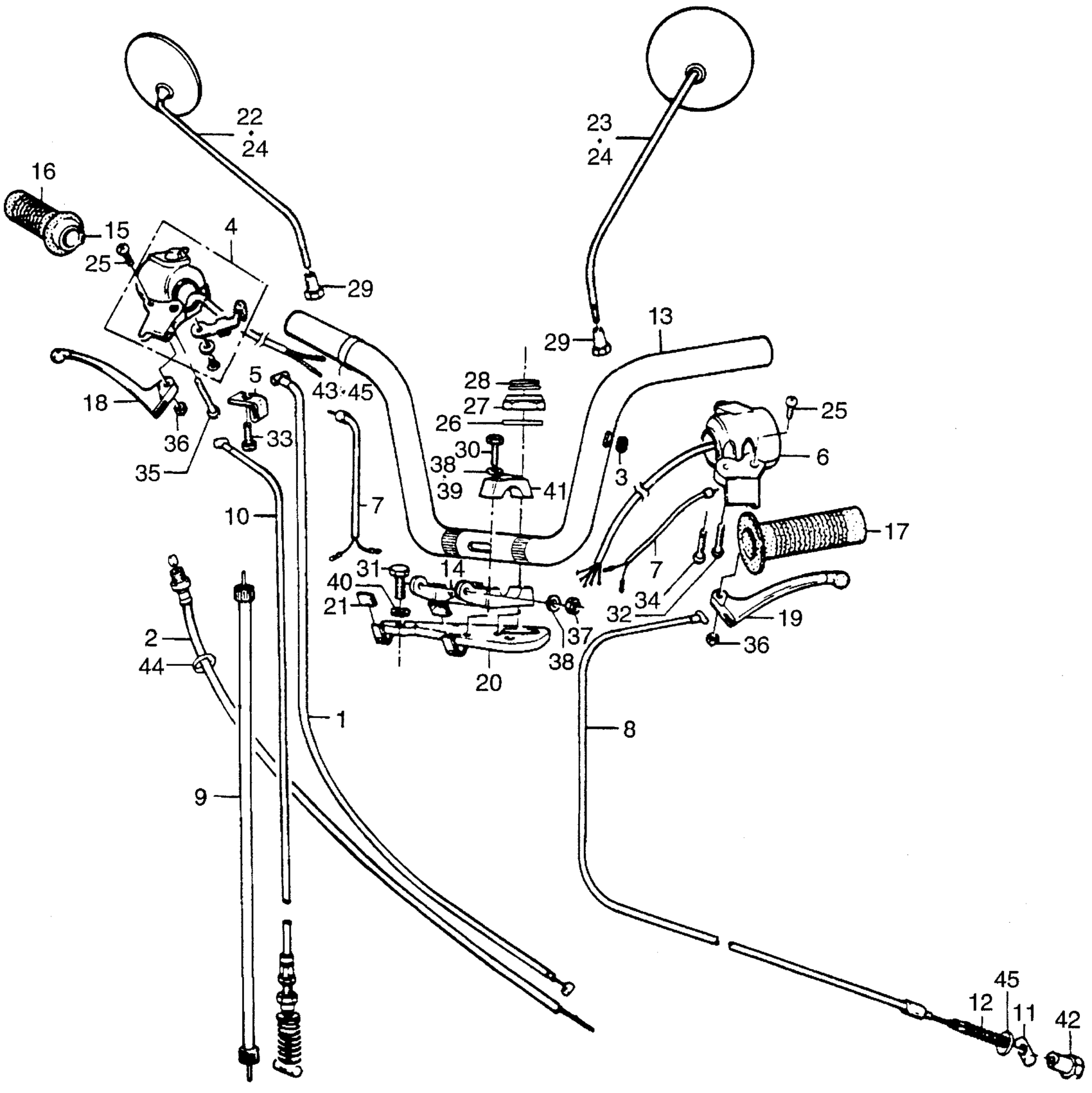

Honda PA50IIA (80) MOPED-30 MPH, BE, VIN# PA50-3200001 HANDLEBAR + CABLES + SWITCHES Diagram

GROMMET, BRIDGE (LOWER)

51514-148-000

Unavailable

WASHER, CHAIN CASE CUP

90543-099-930

Unavailable

CABLE *NH1* (BLACK)

14950-148-020B

Unavailable

CABLE, THROTTLE

17910-148-780

Unavailable

SWITCH ASSY., STOP

35200-148-872

Unavailable

STOPPER, CABLE

35205-147-000

Unavailable

SWITCH ASSY., HORN & DIMMER (NOT AVAILABLE)

35300-147-671

Unavailable

SWITCH ASSY., FR. STOP This part replaces 35340-187-700.

35340-GAN-620

$19.20

SWITCH ASSY., FR. STOP This part replaces 35340-401-681.

35340-GAN-620

$19.20

SWITCH ASSY., FR. STOP This part replaces 35340-401-682.

35340-GAN-620

$19.20

SWITCH ASSY., FR. STOP This part replaces 35340-437-661.

35340-GAN-620

$19.20

CABLE, RR. BRAKE *NH1* (BLACK) (NOT AVAILABLE)

43450-148-671B

Unavailable

CABLE, SPEEDOMETER (NOT AVAILABLE)

44830-148-671

Unavailable

CABLE, FR. BRAKE (NOT AVAILABLE) This part replaces 45450-148-671.

45450-148-672

Unavailable

CABLE, FR. BRAKE (NOT AVAILABLE)

45450-148-672

Unavailable

JOINT, BRAKE ARM (NOT AVAILABLE)

45453-148-670

Unavailable

SPRING, RR. BRAKE (NOT AVAILABLE)

45455-161-000

Unavailable

HANDLEBAR (NOT AVAILABLE)

53100-148-871

Unavailable

HOLDER, HANDLEBAR (LOWER) (NOT AVAILABLE)

53132-148-671

Unavailable

PIPE, THROTTLE GRIP This part replaces 53141-147-010.

53141-147-030

$13.18

PIPE, THROTTLE GRIP This part replaces 53141-147-020.

53141-147-030

$13.18

GRIP, R. HANDLEBAR (NOT AVAILABLE)

53165-147-670

Unavailable

GRIP, L. HANDLEBAR (NOT AVAILABLE)

53166-147-670

Unavailable

LEVER, R. HANDLEBAR (COO) This part replaces 53175-147-671.

53175-GGA-305

$12.88

LEVER, L. HANDLEBAR (COO) This part replaces 53178-GF0-000.

53178-GGL-305

$14.62

LEVER, L. HANDLEBAR (COO) This part replaces 53178-GR2-000.

53178-GGL-305

$14.62

LEVER, L. HANDLEBAR (COO) This part replaces 53178-147-010.

53178-GGL-305

$14.62

LEVER, L. HANDLEBAR (COO) This part replaces 53178-155-000.

53178-GGL-305

$14.62

LEVER, L. HANDLEBAR (COO) This part replaces 53178-187-000.

53178-GGL-305

$14.62

BRIDGE, FORK TOP *NH1* (BLACK)

53230-148-671B

Unavailable

CAP, TOP BRIDGE (NOT AVAILABLE)

61308-148-000

Unavailable

MIRROR ASSY., R. BACK This part replaces 88110-126-751.

88110-088-950

Unavailable

MIRROR ASSY., R. BACK This part replaces 88110-178-000.

88110-088-950

Unavailable

MIRROR ASSY., L. BACK

88120-088-950

Unavailable

MIRROR ASSY., L. BACK This part replaces 88120-126-751.

88120-088-950

Unavailable

MIRROR ASSY., L. BACK This part replaces 88120-178-000.

88120-088-950

Unavailable

SCREW, HANDLE LEVER PIVOT (5MM)

90115-147-000

$2.72

WASHER, PLAIN (26MM)

90201-093-000

Unavailable

NUT, STEERING HEAD STEM (NOT AVAILABLE)

90301-093-003

Unavailable

CAP, STEERING STEM NUT *NH1* (BLACK)

90302-093-000B

Unavailable

NUT A (11MM-TH) (3.5MM) (NOT AVAILABLE)

90314-093-003

Unavailable

BOLT, HEX. (6X55) This part replaces 92000-06050.

92101-06055-0A

$1.98

BOLT, HEX. (6X55) This part replaces 92000-06050-0A.

92101-06055-0A

$1.98

BOLT, HEX. (6X55) This part replaces 92000-06055.

92101-06055-0A

$1.98

BOLT, HEX. (6X55) This part replaces 92000-06055-0A.

92101-06055-0A

$1.98

BOLT, HEX. (6X55)

92101-06055-0A

$1.98

BOLT, HEX. (10X28) (NOT AVAILABLE)

93026-10028-0A

Unavailable

SCREW, PAN (5X25)

93500-05025-0A

$1.49

SCREW, PAN (5X28)

93500-05028-0A

$1.49

SCREW, PAN (5X30)

93500-05030-0A

$1.49

SCREW, PAN (5X35)

93500-05035-0A

$1.49

NUT, HEX. (5MM)

94001-05000-0S

$2.74

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94001-06200-0S

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49

WASHER, PLAIN (10MM)

94101-10000

$1.49

HOLDER A1, HANDLEBAR (UPPER)

95014-21101

$6.31

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.49

BAND, STEERING

38701-148-400

Unavailable
