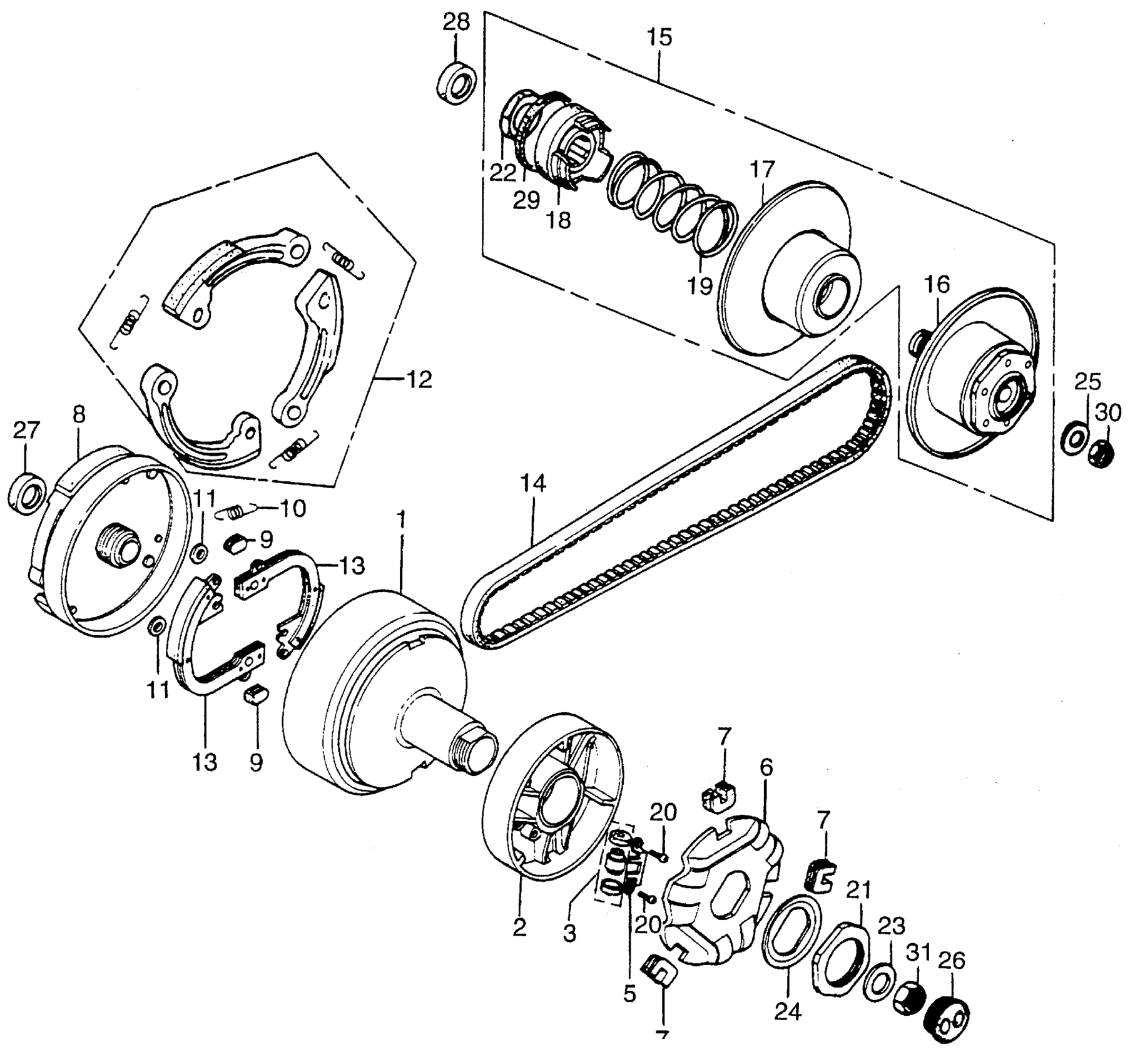

Honda PA50IIA (80) MOPED-30 MPH, BE, VIN# PA50-3200001 DRIVE ASSEMBLY Diagram

#

Description
Price

NI

ROLLER, WEIGHT SET

22120-148-700

Unavailable

1

DRIVE FACE

22100-GB7-630

Unavailable

1

DRIVE FACE This part replaces 22100-148-703.

22100-GB7-630

Unavailable

2

FACE DRIVE, MOVABLE (NOT AVAILABLE)

22110-148-701

Unavailable

3

ROLLER, WEIGHT SET

22120-148-700

Unavailable

3

ROLLER, WEIGHT SET This part replaces 22121-148-700.

22120-148-700

Unavailable

5

PLATE, ROLLER WEIGHT (NOT AVAILABLE)

22125-148-701

Unavailable

6

PLATE, RAMP (NOT AVAILABLE)

22131-148-700

Unavailable

7

PIECE, SLIDE

22132-148-700

Unavailable

8

PLATE ASSY., DRIVE This part replaces 22300-148-010.

22300-148-405

Unavailable

8

PLATE ASSY., DRIVE

22300-148-405

Unavailable

9

DAMPER, STARTING CLUTCH (NOT AVAILABLE)

22356-148-010

Unavailable

10

SPRING, CLUTCH (NOT AVAILABLE)

22402-148-000

Unavailable

11

PLATE, CLUTCH SETTING

22403-148-000

Unavailable

12

WEIGHT, SET CLUTCH This part replaces 22510-148-305.

22510-148-405

Unavailable

12

WEIGHT, SET CLUTCH

22510-148-405

Unavailable

13

WEIGHT, STARTING CLUTCH This part replaces 22520-148-010.

22520-148-405

Unavailable

13

WEIGHT, STARTING CLUTCH

22520-148-405

Unavailable

14

BELT, DRIVE (MITSUBOSHI)

23100-148-703

Unavailable

16

FACE, DRIVEN

23210-148-670

Unavailable

17

FACE, MOVABLE DRIVEN (NOT AVAILABLE)

23220-148-672

Unavailable

18

FOLLOWER, CAM (NOT AVAILABLE)

23231-148-672

Unavailable

19

SPRING, DRIVEN FACE (NOT AVAILABLE)

23233-148-671

Unavailable

20

SCREW, PAN (4X4.5) (NOT AVAILABLE)

90101-148-000

Unavailable

21

NUT, SPECIAL (27MM)

90201-GB7-620

Unavailable

21

NUT, SPECIAL (27MM) This part replaces 90201-148-700.

90201-GB7-620

Unavailable

22

NUT, SPECIAL (20MM) (NOT AVAILABLE)

90202-148-000

Unavailable

23

WASHER, MAGNET FIXING

90426-035-000

$2.57

23

WASHER, SPECIAL (10X18)

90426-GW0-730

$3.49

23

WASHER, SPECIAL (10X18) This part replaces 90426-001-000.

90426-GW0-730

$3.49

24

WASHER, LOCK (NOT AVAILABLE)

90431-148-701

Unavailable

25

WASHER (8MM)

90485-040-000

$1.77

26

RUBBER, SEAL (NOT AVAILABLE)

90801-148-700

Unavailable

27

OIL SEAL (15X25.5X7) This part replaces 91201-147-003.

91201-GW2-000

$3.86

28

OIL SEAL (12X22X5) This part replaces 91201-148-003.

91201-965-000

$4.06

28

OIL SEAL (12X22X5)

91201-965-000

$4.06

29

OIL SEAL (24X34X5.5) (NOT AVAILABLE)

91204-148-023

Unavailable

30

NUT, HEX. (8MM)

94001-08000-0S

$1.49

31

NUT, HEX. (10MM)

94001-10000-0S

$1.49
