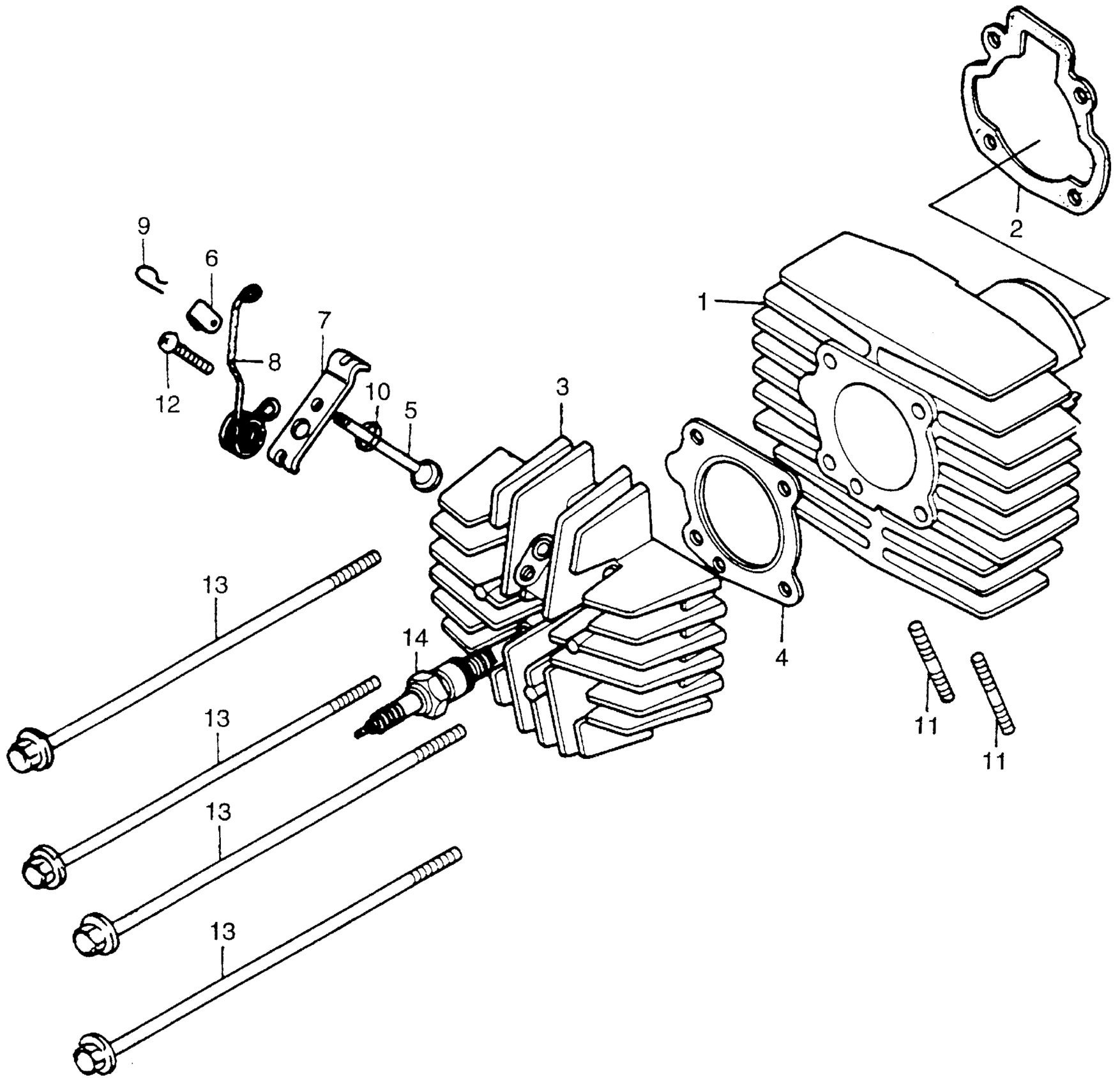

Honda PA50IA (79) MOPED-20 MPH, BE, VIN# PA50M-2100001 CYLINDER + CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER

12100-148-652

Unavailable

2

GASKET, CYLINDER This part replaces 12191-147-306.

12191-147-701

$6.93

2

GASKET, CYLINDER This part replaces 12191-147-700.

12191-147-701

$6.93

2

GASKET, CYLINDER

12191-147-701

$6.93

3

CYLINDER HEAD (NOT AVAILABLE)

12200-148-010

Unavailable

4

GASKET, CYLINDER HEAD

12251-148-000

Unavailable

5

VALVE, DECOMPRESSION

14911-148-000

Unavailable

6

BRACKET

14912-148-000

Unavailable

7

PLATE, DECOMPRESSION BOLT (NOT AVAILABLE)

14913-148-010

Unavailable

8

SPRING, DECOMPRESSION (NOT AVAILABLE)

14914-148-000

Unavailable

9

CLIP, GEARSHIFT FORK GUIDE

24263-028-000

$2.66

10

O-RING (3.6X1.4) (NOT AVAILABLE)

91301-MC0-000

Unavailable

10

O-RING (3.6X1.4) (NOT AVAILABLE) This part replaces 91301-122-300.

91301-MC0-000

Unavailable

11

BOLT, STUD (6X16) This part replaces 92700-06028-0B.

92900-06016-0B

$1.49

12

SCREW, PAN (6X16) This part replaces 93500-06016.

93500-06016-0A

$1.49

12

SCREW, PAN (6X16)

93500-06016-0A

$1.49

13

BOLT, FLANGE (6X100) This part replaces 95800-06100-00.

95801-06100-00

$1.74

13

BOLT, FLANGE (6X100)

95801-06100-00

$1.74

14

SPARK PLUG (BP5HS) (NGK) This part replaces 98076-55711.

98076-55719

$2.44

14

SPARK PLUG (BP5HS) (NGK)

98076-55719

$2.44

14

SPARK PLUG (W16FP) (DENSO) (NOT AVAILABLE)

98076-55721

Unavailable
