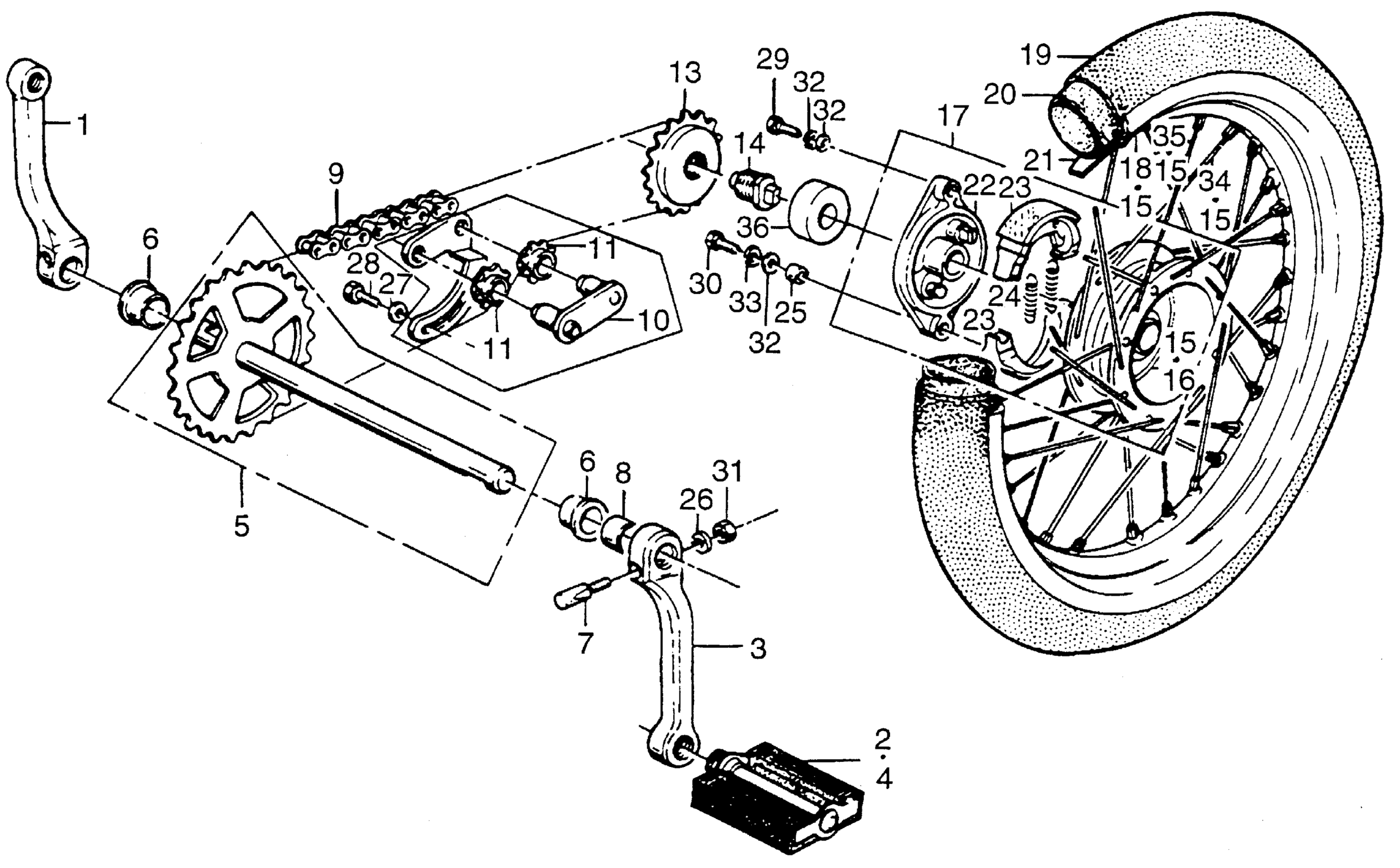

Honda PA50IA (78) MOPED-20 MPH, BE, VIN# PA50M-1100001 REAR WHEEL + PEDALS + CHAIN Diagram

#

Description
Price

NI

SHOE KIT, BRAKE

45130-148-670

Unavailable

1

ARM, R. CRANK (NOT AVAILABLE)

40210-122-691

Unavailable

2

PEDAL, R. CRANK (NOT AVAILABLE)

40215-099-920

Unavailable

3

ARM, L. CRANK (NOT AVAILABLE)

40220-122-691

Unavailable

4

PEDAL, L. CRANK (NOT AVAILABLE)

40225-099-920

Unavailable

5

SHAFT, DRIVE

40230-148-020

Unavailable

6

BUSH, DRIVESHAFT (NOT AVAILABLE)

40234-148-000

Unavailable

7

PIN, CRANK ARM SETTING (NOT AVAILABLE)

40235-093-000

Unavailable

8

COLLAR, DRIVESHAFT (NOT AVAILABLE)

40236-148-721

Unavailable

9

CHAIN DRIVE This part replaces 40535-148-003.

40535-197-600

Unavailable

10

TENSIONER, CHAIN KIT (NOT AVAILABLE)

40540-148-670

Unavailable

11

ROLLER, TENSIONER (NOT AVAILABLE)

40541-148-010

Unavailable

13

FREE WHEEL (22T) (NOT AVAILABLE)

41210-148-000

Unavailable

14

GUIDE, FREE WHEEL (NOT AVAILABLE)

41215-148-000

Unavailable

15

WHEEL ASSY., RR.

42600-148-670

Unavailable

16

HUB, RR. WHEEL

42601-148-670

Unavailable

17

HUB & PANEL ASSY. (NOT AVAILABLE)

42610-148-670

Unavailable

18

RIM, RR. WHEEL (NOT AVAILABLE)

42701-148-670

Unavailable

19

TIRE, WHEEL (2.25-17) (NOT AVAILABLE)

42711-148-670

Unavailable

20

TUBE, TIRE (2.50-17) (INOUE) This part replaces 0Y400-03010.

42712-041-154

Unavailable

20

TUBE, TIRE (2.50-17) (INOUE) This part replaces 08400-03010.

42712-041-154

Unavailable

20

TUBE, TIRE (2.50-17) (INOUE)

42712-041-154

Unavailable

20

TUBE, TIRE (2.50-17) (INOUE) This part replaces 42712-052-009.

42712-041-154

Unavailable

21

FLAP, TIRE (NOT AVAILABLE)

44713-099-158

Unavailable

22

PANEL, RR. BRAKE

43100-148-672

Unavailable

23

SHOE KIT, BRAKE This part replaces 43120-148-670.

45130-148-670

Unavailable

23

SHOE KIT, BRAKE

45130-148-670

Unavailable

24

SPRING, SHOE (NOT AVAILABLE)

45133-093-003

Unavailable

25

COLLAR, RR. SWINGARM (NOT AVAILABLE)

52112-148-000

Unavailable

26

WASHER, CRANK ARM

90545-044-000

$1.75

27

WASHER (18MM)

90581-831-650

$1.87

28

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

28

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

28

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

29

BOLT, HEX. (8X18) This part replaces 92000-08018-0A.

92101-08018-0A

$1.53

29

BOLT, HEX. (8X18)

92101-08018-0A

$1.53

30

BOLT, HEX. (8X35) This part replaces 92000-08036-0A.

92101-08035-0A

$1.49

30

BOLT, HEX. (8X35)

92101-08035-0A

$1.49

30

BOLT, HEX. (8X35) This part replaces 92101-08036-0A.

92101-08035-0A

$1.49

31

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

31

NUT, HEX. (6MM)

94001-06200-0S

$1.49

32

WASHER, PLAIN (8MM)

94101-08000

$1.49

33

WASHER, SPRING (8MM)

94111-08000

$1.49

34

SPOKE A (12X159)

97064-21158-10

Unavailable

35

SPOKE A (12X159) (NOT AVAILABLE)

97160-21158-10

Unavailable

36

BEARING, RADIAL BALL (6202UU)

96150-62020-10

$14.36
