- PA50IA (78) MOPED-20 MPH, BE, VIN# PA50M-1100001
FRONT FORK + FRONT FENDER + HORN

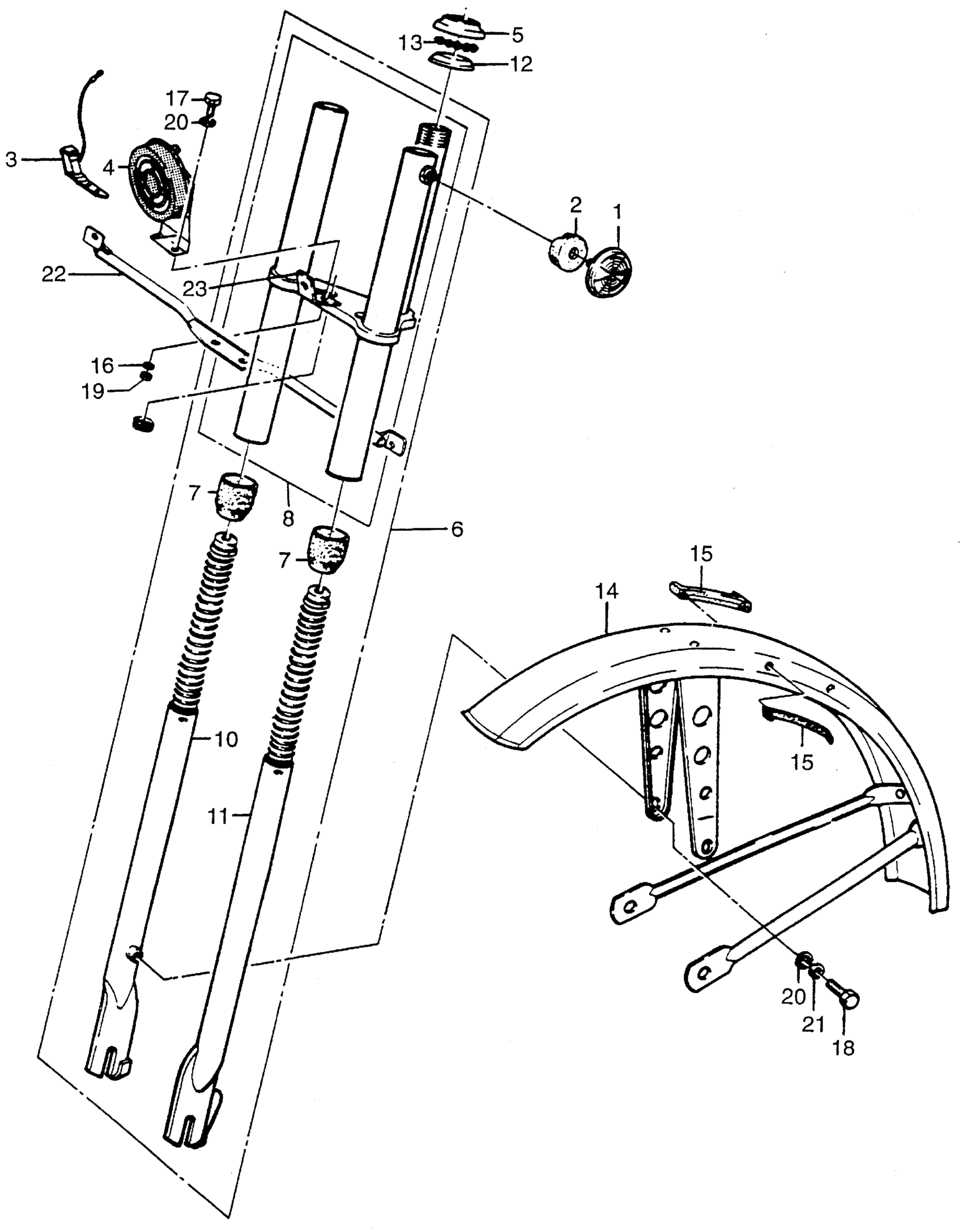

Honda PA50IA (78) MOPED-20 MPH, BE, VIN# PA50M-1100001 FRONT FORK + FRONT FENDER + HORN Diagram
#
Description
Price
2
BASE, FR. REFLECTOR
33744-331-770
Unavailable
3
RESISTOR ASSY.
35400-148-670
Unavailable
4
HORN ASSY. (NOT AVAILABLE)
38100-148-671
Unavailable
5
RACE, STEERING BALL
50301-093-003
Unavailable
6
FORK ASSY., FR. *R2* (SCARLET)
51500-148-672C
Unavailable
7
DUST SEAL, FR. FORK (NOT AVAILABLE) This part replaces 51505-148-670.
51505-148-671
Unavailable
7
DUST SEAL, FR. FORK (NOT AVAILABLE)
51505-148-671
Unavailable
8
FORK, FR. *R2* (SCARLET) (NOT AVAILABLE) This part replaces 51510-148-670C.
51510-148-672C
Unavailable
8
FORK, FR. *R2* (SCARLET) (NOT AVAILABLE) This part replaces 51510-148-671C.
51510-148-672C
Unavailable
8
FORK, FR. *R2* (SCARLET) (NOT AVAILABLE)
51510-148-672C
Unavailable
10
PIPE SLIDE, R. FR. FORK This part replaces 51520-148-672.
51520-148-673
Unavailable
10
PIPE SLIDE, R. FR. FORK
51520-148-673
Unavailable
11
PIPE SLIDE, L. FR. FORK This part replaces 51530-148-673.
51530-148-674
Unavailable
11
PIPE SLIDE, L. FR. FORK
51530-148-674
Unavailable
12
RACE, STEERING CONE (LOWER) (NOT AVAILABLE)
53212-093-003
Unavailable
13
BALL ASSY.
53213-093-003
Unavailable
14
FENDER, FR. *R2* (SCARLET) (NOT AVAILABLE)
61100-148-611C
Unavailable
15
CABLE, GUARD (NOT AVAILABLE)
61104-148-300
Unavailable
16
BOLT, ENGINE HANGER
90103-148-000
Unavailable
17
BOLT, HEX. (6X15) (NOT AVAILABLE)
92000-06015-0A
Unavailable
18
BOLT, HEX. (6X30) (NOT AVAILABLE)
92000-06030-0A
Unavailable
