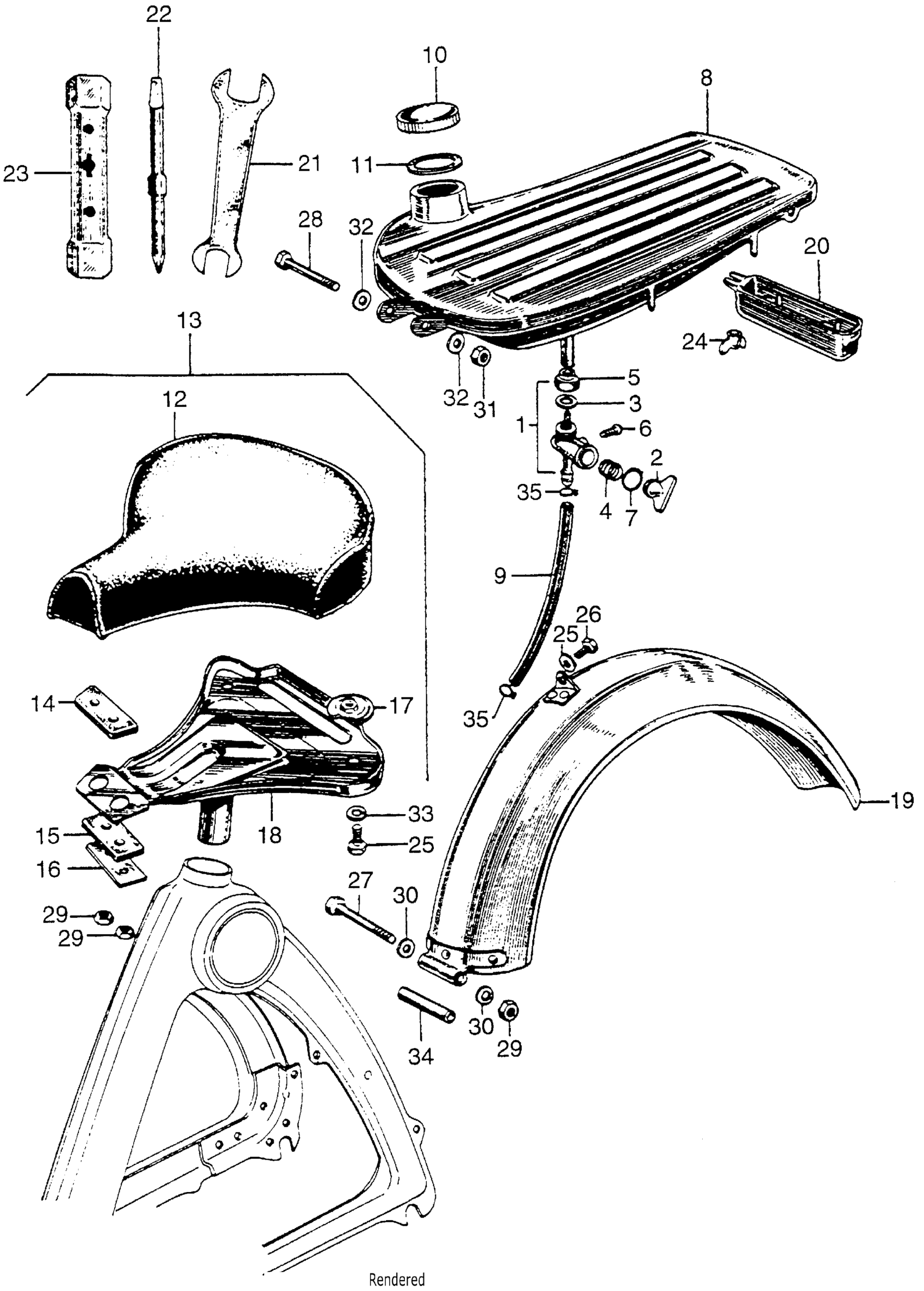

Honda P50A MOTORCYCLE, JPN, VIN# P50-100001 SEAT + FUEL TANK Diagram

#

Description
Price

1

PETCOCK ASSY. This part replaces 16950-044-004.

16950-045-005

$38.67

1

PETCOCK ASSY.

16950-045-005

$38.67

2

LEVER, VALVE (NOT AVAILABLE)

16953-044-004

Unavailable

3

GASKET, TURN BUCKLE NUT (NOT AVAILABLE)

16958-044-004

Unavailable

4

SPRING, VALVE (NOT AVAILABLE)

16960-044-004

Unavailable

5

NUT, TURN BUCKLE (NOT AVAILABLE)

16962-044-004

Unavailable

6

SCREW, LEVER STOPPER (NOT AVAILABLE)

16963-044-004

Unavailable

7

O-RING (7X1.7) This part replaces 16997-044-004.

91312-107-000

$3.18

7

O-RING (7X1.7)

91312-107-000

$3.18

8

TANK, FUEL (NOT AVAILABLE)

17500-044-010Z

Unavailable

9

TUBE, FUEL (NOT AVAILABLE)

17511-044-000

Unavailable

10

CAP, FUEL FILLER This part replaces 17610-102-730.

17620-102-730

Unavailable

10

CAP, FUEL FILLER This part replaces 17620-044-000.

17620-102-730

Unavailable

10

CAP, FUEL FILLER This part replaces 17620-044-010.

17620-102-730

Unavailable

10

CAP, FUEL FILLER

17620-102-730

Unavailable

10

CAP, FUEL FILLER This part replaces 17620-114-000.

17620-102-730

Unavailable

11

GASKET, FUEL FILLER CAP This part replaces 17631-253-000.

17631-253-010

Unavailable

11

GASKET, FUEL FILLER CAP

17631-253-010

Unavailable

12

SEAT (NOT AVAILABLE)

77011-044-010

Unavailable

13

SADDLE ASSY. (NOT AVAILABLE)

77100-044-010

Unavailable

14

RUBBER A, SADDLE HINGE (NOT AVAILABLE)

77123-044-300

Unavailable

15

RUBBER B, SADDLE HINGE (NOT AVAILABLE)

77125-044-300

Unavailable

16

WASHER, SADDLE HINGE RUBBER (NOT AVAILABLE)

77131-044-000

Unavailable

17

PLATE B, SPRING SETTING (NOT AVAILABLE)

77133-044-020

Unavailable

18

FRAME, SADDLE (NOT AVAILABLE)

77135-044-000

Unavailable

19

FENDER, RR. *Y3L* (IVORY WHITE) (NOT AVAILABLE)

80100-044-670XL

Unavailable

20

COVER, TOOL BOX *NH1* (BLACK) (NOT AVAILABLE)

83500-044-010B

Unavailable

21

SPANNER (10X14) (NOT AVAILABLE)

83511-044-000

Unavailable

22

DRIVER

83513-044-000

$3.98

23

WRENCH, SPARK PLUG (NOT AVAILABLE)

83517-044-000

Unavailable

24

WINGNUT, TOOL BOX SETTING

90325-044-000

$3.51

25

WASHER, RR. FENDER SETTING

90527-044-000

Unavailable

26

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

26

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

26

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

26

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

26

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

27

BOLT, HEX. (6X55) This part replaces 92000-06050.

92101-06055-0A

$1.98

27

BOLT, HEX. (6X55) This part replaces 92000-06050-0A.

92101-06055-0A

$1.98

27

BOLT, HEX. (6X55) This part replaces 92000-06055.

92101-06055-0A

$1.98

27

BOLT, HEX. (6X55) This part replaces 92000-06055-0A.

92101-06055-0A

$1.98

27

BOLT, HEX. (6X55)

92101-06055-0A

$1.98

28

BOLT, HEX. (8X43) This part replaces 92000-08042.

92000-08043-0A

Unavailable

28

BOLT, HEX. (8X43) This part replaces 92000-08043.

92000-08043-0A

Unavailable

28

BOLT, HEX. (8X43)

92000-08043-0A

Unavailable

29

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM)

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

30

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

30

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

30

WASHER, PLAIN (6MM)

94101-06800

$1.49

31

NUT, HEX. (8MM) This part replaces 94001-08000.

94030-08000

$1.49

31

NUT, HEX. (8MM)

94030-08000

$1.49

31

NUT, HEX. (8MM) This part replaces 94030-08200.

94030-08000

$1.49

32

WASHER, PLAIN (8MM)

94101-08000

$1.49

33

WASHER, SPRING (6MM)

94111-06000

$1.49

34

COLLAR, RR. FENDER (NOT AVAILABLE) | Use from Frame SN A184950

80103-044-000

Unavailable

35

CLIP, TUBE (4.5)

95002-45000

$1.49
