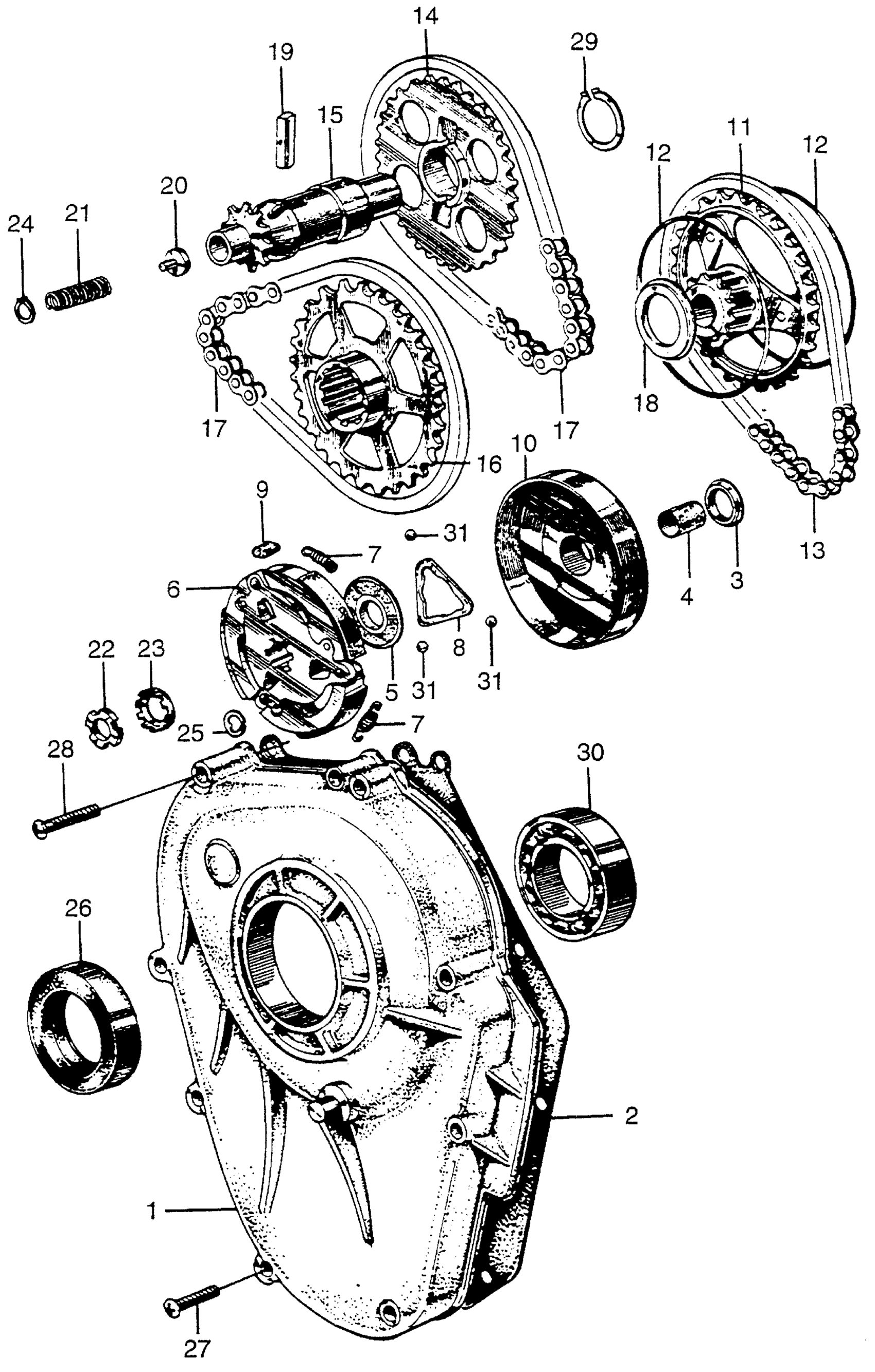

Honda P50A MOTORCYCLE, JPN, VIN# P50-100001 RIGHT CRANKCASE COVER + PRIMARY DRIVE Diagram

#

Description
Price

1

COVER, R. CRANKCASE

11330-044-030

Unavailable

2

GASKET, R. This part replaces 11394-044-010.

11394-044-306

Unavailable

3

COLLAR, TIMING SPROCKET DISTANCE (NOT AVAILABLE)

14315-044-010

Unavailable

4

GUIDE, CLUTCH CENTER

22131-044-020

Unavailable

5

DISK, CLUTCH FRICTION (NOT AVAILABLE)

22201-044-050

Unavailable

6

PLATE, DRIVE (NOT AVAILABLE)

22300-044-000

Unavailable

7

SPRING, CLUTCH (NOT AVAILABLE)

22401-044-010

Unavailable

8

RETAINER, BALL (NOT AVAILABLE)

22802-044-000

Unavailable

9

RUBBER, CLUTCH DAMPER (NOT AVAILABLE)

22804-044-000

Unavailable

10

SPROCKET, PRIMARY DRIVE (NOT AVAILABLE)

23100-044-040

Unavailable

11

SPROCKET, PRIMARY DRIVEN (NOT AVAILABLE)

23110-044-040

Unavailable

12

RING, DAMPER (NOT AVAILABLE)

23131-044-000

Unavailable

13

CHAIN, PRIMARY DRIVE (NOT AVAILABLE)

23150-044-000

Unavailable

14

SPROCKET, SECONDARY DRIVEN (NOT AVAILABLE)

23221-044-030

Unavailable

15

SHAFT, FINAL DRIVE (NOT AVAILABLE)

23311-044-030

Unavailable

16

SPROCKET, FINAL DRIVEN (NOT AVAILABLE)

23321-044-020

Unavailable

17

CHAIN, FINAL DRIVE (NOT AVAILABLE)

23350-044-000

Unavailable

18

COLLAR, THRUST (22MM) (NOT AVAILABLE)

23421-044-343

Unavailable

19

POLE, FREE (NOT AVAILABLE)

24111-044-010

Unavailable

20

GUIDE, FREE PAWL (NOT AVAILABLE)

24615-044-010

Unavailable

21

SPRING, FREE PAWL (NOT AVAILABLE)

24621-044-020

Unavailable

22

NUT, LOCK (14MM)

90231-KY4-900

$4.22

22

NUT, LOCK (14MM) This part replaces 90231-001-000.

90231-KY4-900

$4.22

22

NUT, LOCK (14MM) This part replaces 90231-041-000.

90231-KY4-900

$4.22

23

WASHER, LOCK (14MM) (NOT AVAILABLE)

90443-044-000

Unavailable

24

CIRCLIP (INNER) (10.5MM) (NOT AVAILABLE)

90602-044-000

Unavailable

25

CIRCLIP (6MM) This part replaces 90603-044-000.

90454-GB2-000

$1.79

26

OIL SEAL (37X55X8) (NOT AVAILABLE)

91213-044-010

Unavailable

27

SCREW, PAN (6X28) This part replaces 93500-06028.

93500-06028-0A

$1.49

27

SCREW, PAN (6X28)

93500-06028-0A

$1.49

28

SCREW, PAN (6X45) This part replaces 93500-06045.

93500-06045-0A

$1.49

28

SCREW, PAN (6X45)

93500-06045-0A

$1.49

29

CIRCLIP (OUTER) (22MM)

94510-22000

$1.49

30

BEARING, RADIAL BALL (16007) (NOT AVAILABLE)

91005-044-000

Unavailable

31

BALL, STEEL (#10) (5/16)

96211-10000

$1.49
