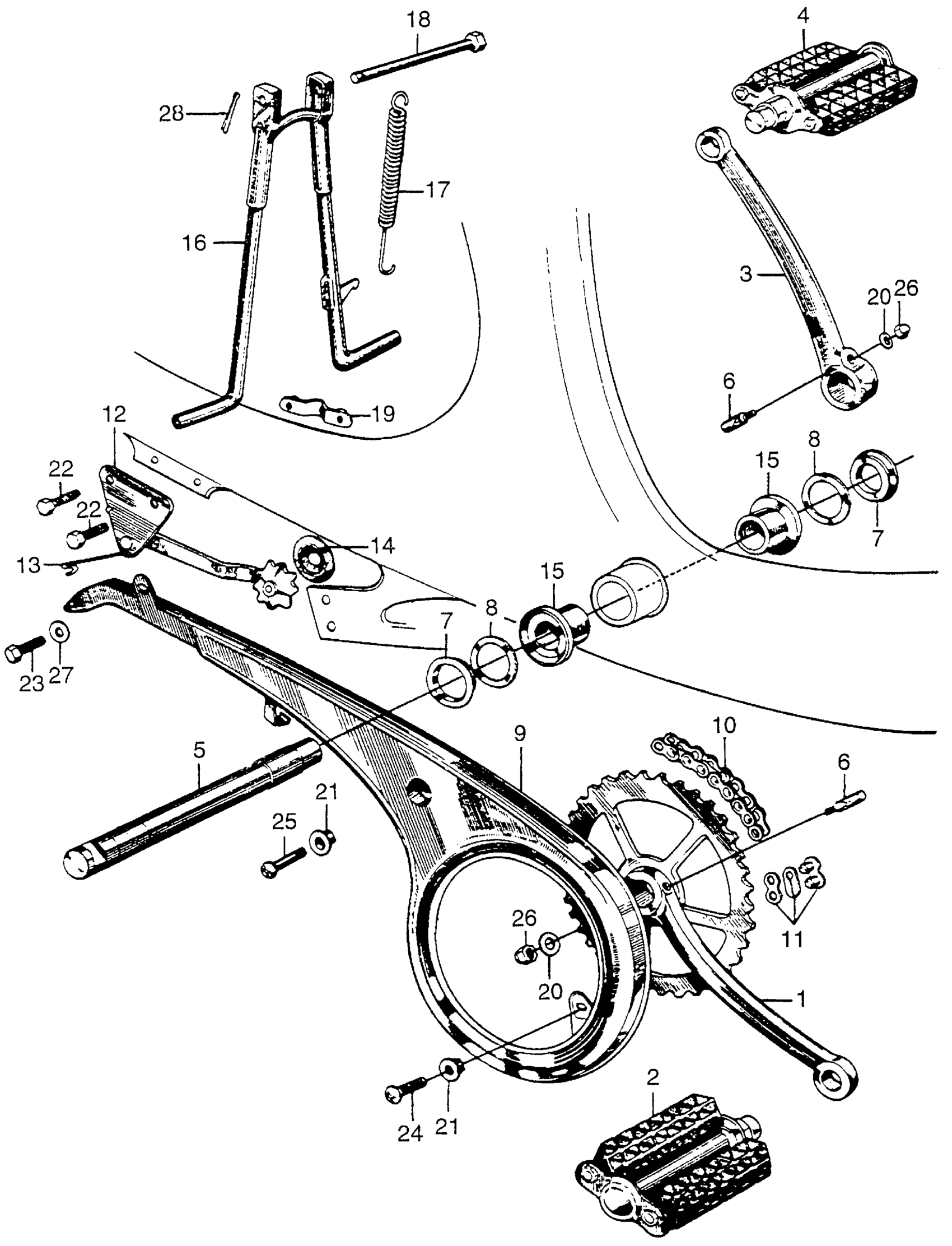

Honda P50A MOTORCYCLE, JPN, VIN# P50-100001 MAIN STAND + CHAIN CASE Diagram

ARM, R. CRANK (NOT AVAILABLE)

40210-044-020

Unavailable

PEDAL, R. CRANK

40215-044-305

Unavailable

ARM, L. CRANK (NOT AVAILABLE)

40220-044-020

Unavailable

PEDAL, R. CRANK This part replaces 40215-044-000.

40215-044-305

Unavailable

PEDAL, R. CRANK

40215-044-305

Unavailable

PEDAL, R. CRANK This part replaces 40225-044-000.

40215-044-305

Unavailable

AXLE, HANGER CRANK (NOT AVAILABLE) | Use from Frame SN A100358

40230-044-030

Unavailable

PIN, CRANK ARM SETTING (NOT AVAILABLE)

40235-044-000

Unavailable

COLLAR, HANGER AXLE (NOT AVAILABLE)

40240-044-020

Unavailable

DUST SEAL, HANGER (NOT AVAILABLE)

40245-044-000

Unavailable

CASE, CHAIN *Y3L* (IVORY WHITE) (NOT AVAILABLE) | Use from Frame SN A104861

40510-044-020XL

Unavailable

CHAIN, DRIVE (106L) (NOT AVAILABLE)

40530-044-000

Unavailable

MASTER LINK (NOT AVAILABLE)

40531-044-000

Unavailable

TENSIONER, CHAIN (NOT AVAILABLE)

40540-044-040

Unavailable

SPRING, TENSIONER (NOT AVAILABLE)

40543-044-030

Unavailable

BOOT, TENSIONER (NOT AVAILABLE)

40553-044-000

Unavailable

BUSH, HANGER PIPE (NOT AVAILABLE) | Use from Frame SN A100358

50305-044-020

Unavailable

STAND, MAIN *NH1* (BLACK) (NOT AVAILABLE)

50500-044-040B

Unavailable

SPRING E, MAIN STAND This part replaces 50522-044-010.

95014-71502

Unavailable

SPRING E, MAIN STAND This part replaces 50522-063-000.

95014-71502

Unavailable

SPRING E, MAIN STAND This part replaces 95014-71501.

95014-71502

Unavailable

SPRING E, MAIN STAND

95014-71502

Unavailable

SHAFT, MAIN STAND (NOT AVAILABLE)

90111-044-020

Unavailable

PLATE B, NUT (NOT AVAILABLE)

90327-044-000

Unavailable

WASHER, CRANK ARM

90545-044-000

$1.75

WASHER, DISTANCE (7X10) (NOT AVAILABLE) | Use from Frame SN A104861

90554-028-000

Unavailable

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

SCREW, PAN (6X12) | Use from Frame SN A104861 This part replaces 93500-06012.

93500-06012-0A

$1.49

SCREW, PAN (6X12) | Use from Frame SN A104861

93500-06012-0A

$1.49

SCREW, PAN (6X12) | Use from Frame SN A104861 This part replaces 93500-06012-00.

93500-06012-0A

$1.49

SCREW, PAN (6X32) | Use from Frame SN A104861 This part replaces 93500-06032.

93500-06032-0A

$1.49

SCREW, PAN (6X32) | Use from Frame SN A104861

93500-06032-0A

$1.49

NUT, CAP (6MM) This part replaces 94021-06000.

94021-06020

$1.73

NUT, CAP (6MM) This part replaces 94021-06000-0S.

94021-06020

$1.73

NUT, CAP (6MM)

94021-06020

$1.73

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.73

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.73

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

PIN, COTTER (2.0X22)

94201-20220

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

PIN, COTTER (2.0X35)

94201-20350

$1.49

PIN, COTTER (2.0X22)

94201-29220

$1.49
